STP-10 Hardware Manual
20

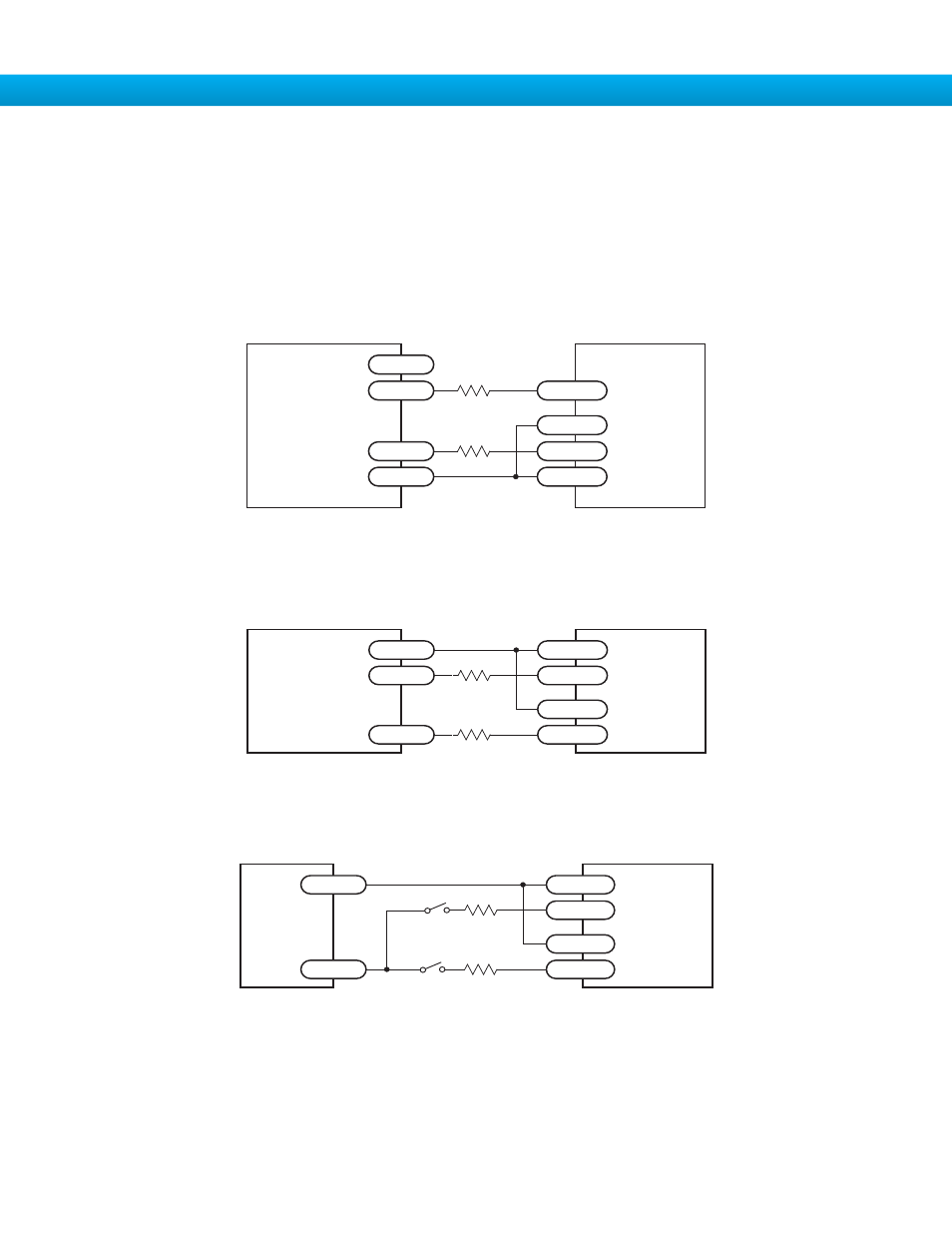

Connecting to PLC with Sourcing (PNP) Outputs
(Most PLC’s use 24 volt logic)
DRIVE
+12-24V
GND X2/DIR-
OUT1 X2/DIR+
X1/STEP-
OUT2 X1/STEP+
PLC
with
Sourcing
Outputs
R
R
Using High Speed Inputs with 12-24 Volt Signals
Most PLCs don’t use 5 volt logic. You can connect signal levels as high as 24 volts to the STEP and DIR inputs if you add external
dropping resistors, as shown below.
• For 12 volt logic, add 820 ohm, 1/4 watt resistors
• For 24 volt logic, use 2200 ohm, 1/4 watt resistors
The maximum voltage that can be applied to an input terminal is 24 volts DC. Never apply AC voltage to an input
terminal.
Connecting to PLC with Sinking (NPN) Outputs
(Most PLC’s use 24 volt logic)
Using Mechanical Switches at 24 Volts
DRIVE
+12-24V X2/DIR+
DIR X2/DIR-
X1/STEP+
STEP X1/STEP-
PLC
with
Sinking
Outputs
R
R
DRIVE
+ X2/DIR+
X2/DIR-
X1/STEP+
- X1/STEP-
+24VDC
Power
Supply
2200
2200
direction switch
run/stop switch
(closed=run)
