STP-10 Hardware Manual
16
Connecting the Motor
Never connect or disconnect the motor while the power is on.

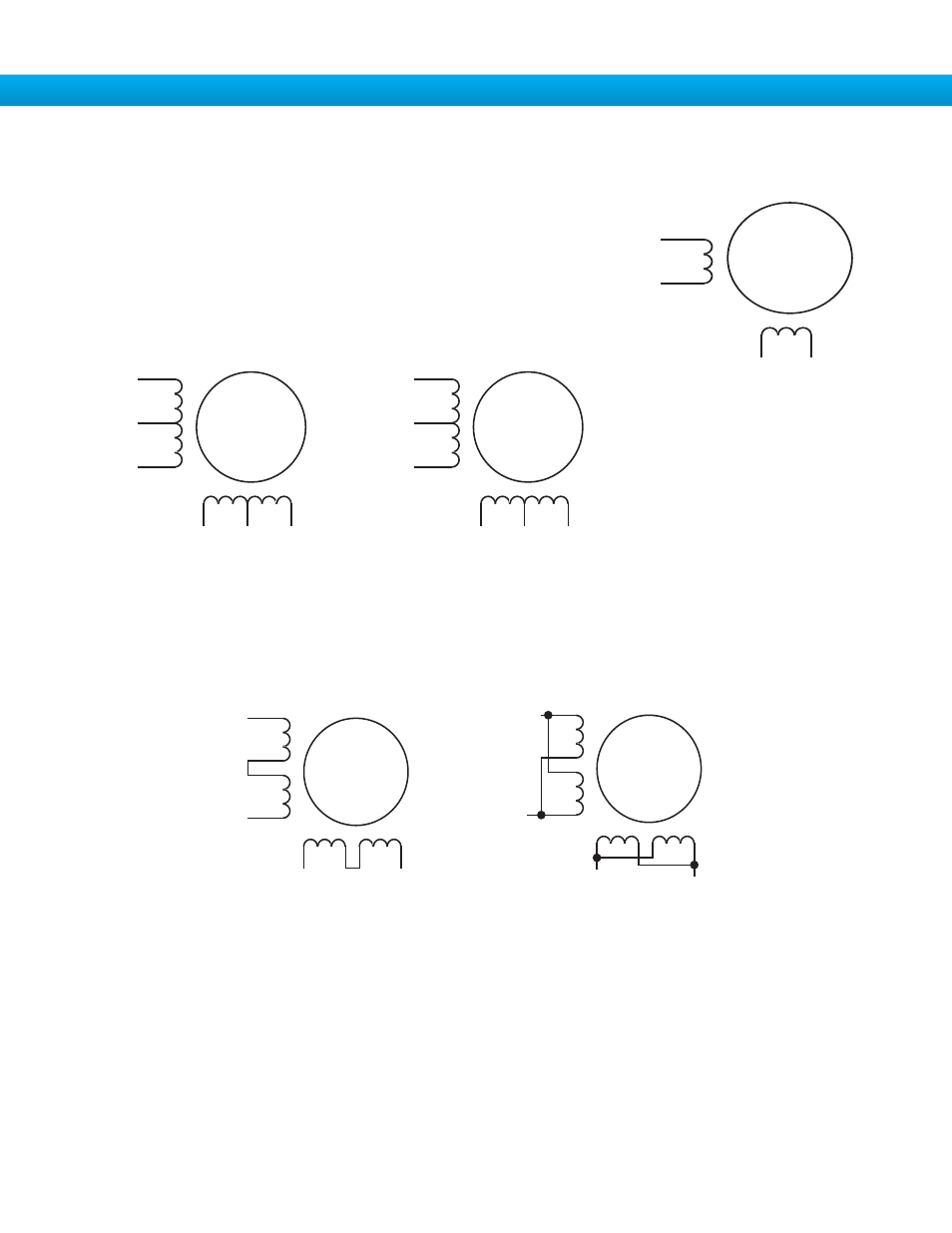

Four lead motors can only be connected one way. Please follow the sketch at the right.
Six lead motors can be connected in series or center tap. In series mode, motors pro-
duce more torque at low speeds, but cannot run as fast as in the center tap configura-
tion. In series operation, the motor should be operated at 30% less than the rated cur-
rent to prevent overheating. Winding diagrams for both connection methods are shown
below. NC means not connected.
Eight lead motors can also be connected in two ways: series and parallel. As with six lead motors, series operation gives you less
torque at high speeds, but may result in lower motor losses and less heating. In series operation, the motor should be operated
at 30% less than the unipolar rated current. The motors recommended in this manual should be connected in parallel. The wiring
diagrams for eight lead motors are shown below.
A+
A–
B+ B–
4
lead
motor
Red
Blue
Yellow White
4 Leads
A+
A–
NC
B+ B– NC
6
lead
motor
Red
Black
Red/
Wht
Green
Grn/Wht
White
A+
A–
NC
B+ B– NC
6
lead
motor
Grn/Wht
White
Green
Red
Red/
Wht
Black
6 Leads Series Connected 6 Leads Center Tap Connected
A+
A–
B+ B–
8
lead
motor
8 Leads Series Connected 8 Leads Parallel Connected
A+
A–
B+
B–
8
lead
motor
Orange
Org/Wht
Blk/Wht
Black
Red Red/
Wht
Yel/
Wht
Yellow
Orange
Org/
Wht
Blk/Wht
Black
Red
Red/Wht
Yel/
Wht
Yel
low
