OV26-BF-I ELECTRICAL

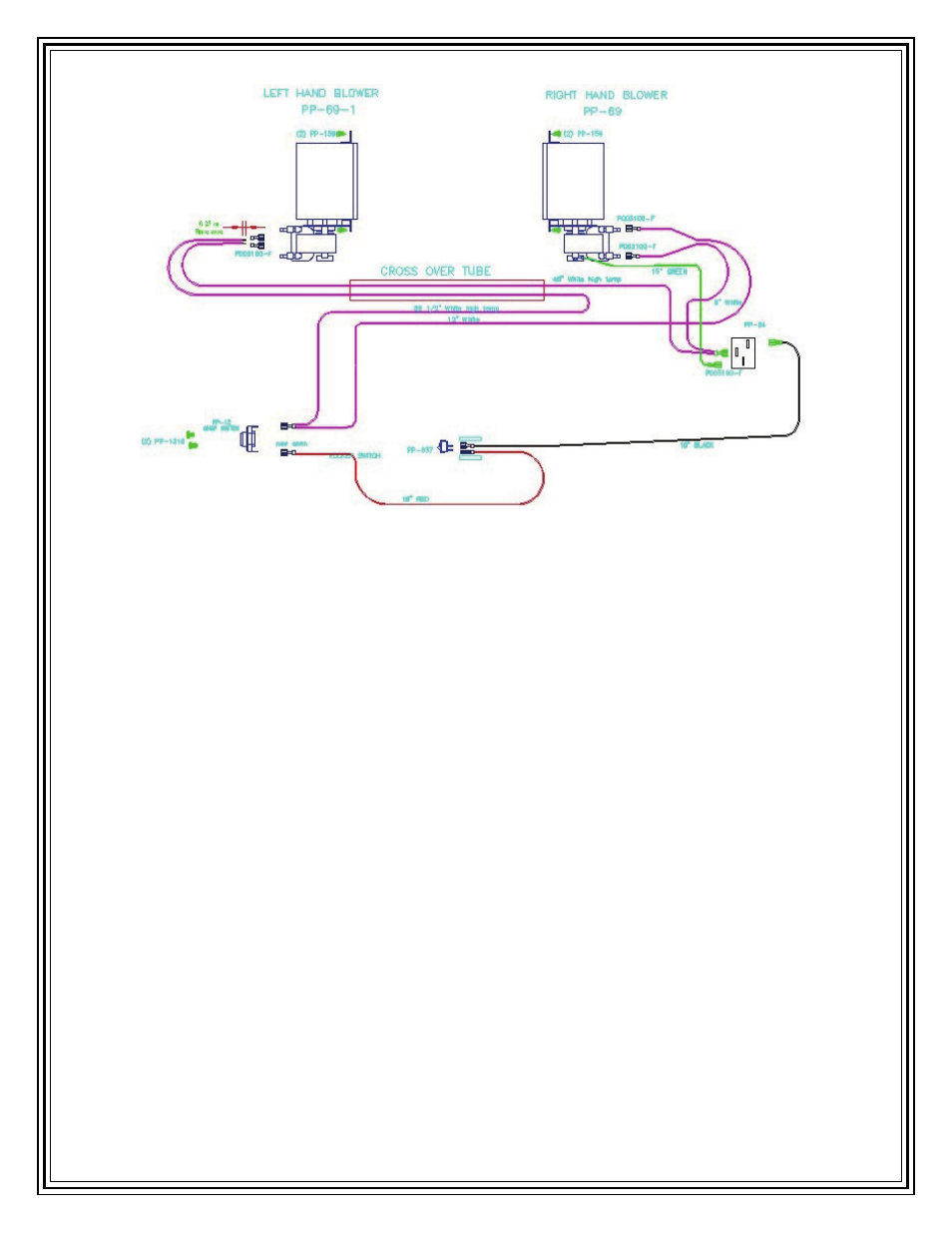

FIGURE 27: OV26-BF-I ELECTRICAL DIAGRAM
FIGURE 27 shows the electrical diagram of the dual blower Ovation 26-BF-Insert stove. The snap
disk over ride switch allows the operator to test or operate the blower system before the snap disk
gets to operating temperature and turns the blower system on. Once the snap disk is heated to
operating temperature the over ride switch is ineffective in turning on or off the blower system until
the snap disk cools down. The blower system has no user serviceable parts and should only be
serviced by a certified technician or an electrician. WARNING: Hazardous voltages and currents
exist in the OV26-BF-I blower system. Ensure the OV26-BF-I is connected to a UL approved and
properly grounded electrical outlet. Failure to properly ground the blower system can present
electrical hazards to occupants and users of this product.
