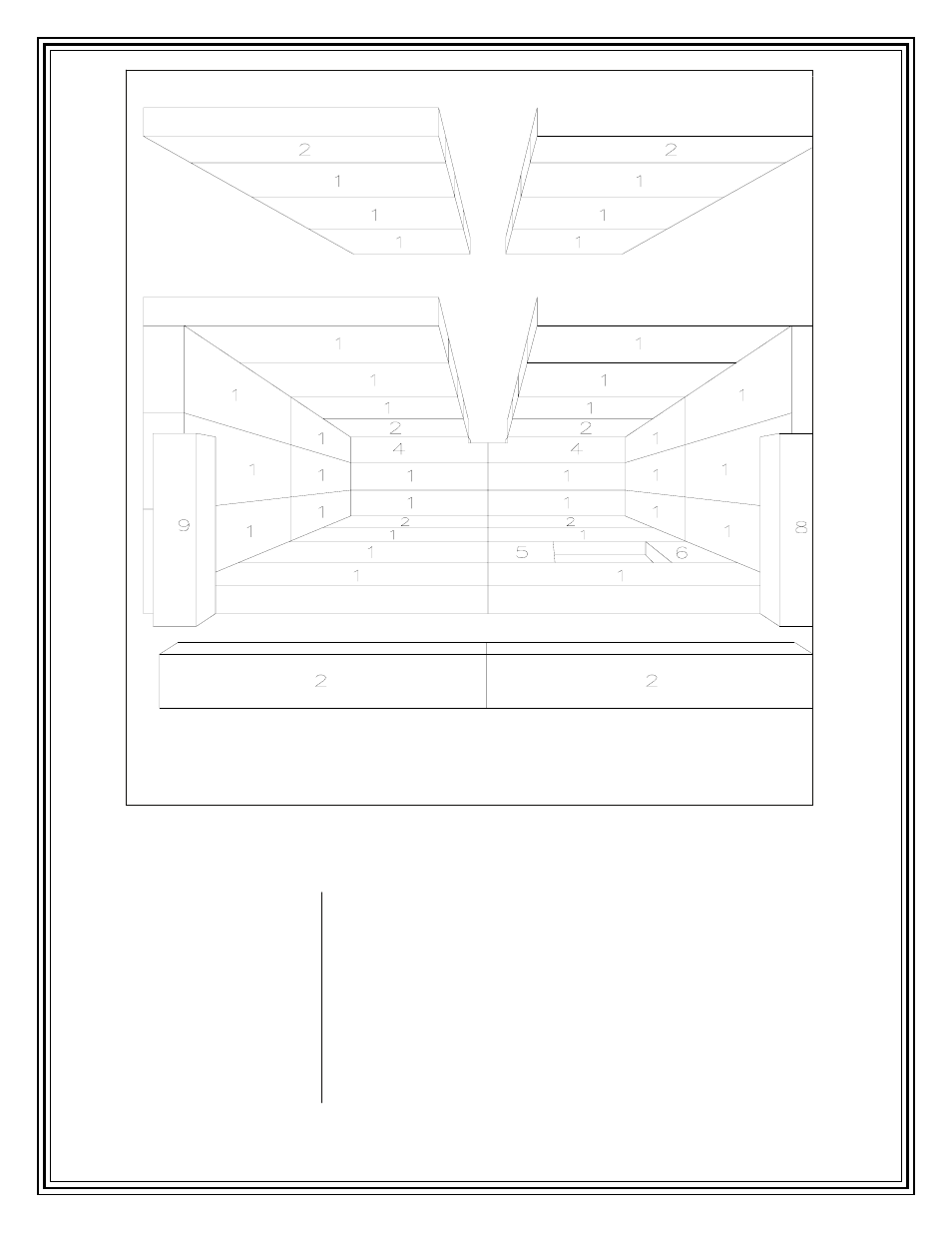

FIGURE 6c: OVATION MODEL 2600 FIREBRICK SYSTEM
BACK FLOOR BRICK PART NO. SIZE OF BRICK
(4) - #1 (5) - #1
(2) - #12 (2) - #2A PP-868 - #1 - 1 ¼ X 4 ½ X 9 (FULL SIZE)
(1) - #5 PP-868 - #2 - 1 ¼ X 3 X 9
PP-868 - #2A – 1 ¼ x 3 ½ x 9
SIDES (1) - #6 PP-868-#12 – 1 ¼” x 3 ½” x 9”
(8) - #1
(4) - #2A FRONT PP-868 - #5 - 1 ¼ X 2 ½ X 4 ½
(2) - #2 PP-868 - #6 - 1 ¼ X 1 ½ X 4 ½
(1) - #9 PP-868 - #7 - (NOT USED)
TOP (1) - #8 PP-868 - #8 - 1 ¼ X 1 1/8 X 9
(12) - #1 PP-868 - #9 - 1 ¼ X 1 ½ X 9
(4) - #2a
