Version 7.1 43
If a full height chimney liner is not used in a masonry chimney, a DIRECT FLUE CONNECTION may
be used. FIGURE 23 illustrates a direct connect method. An optional low clearance offset flue adaptor
may be required to allow proper connection to the chimney. Consult local building codes and the direct
flue connection manufacturer’s installation guide for restrictions and proper use. Ensure that the proper
liner passes above the first clay flue tile joint as shown in Figure 23. NOTE that in Figure 23 the
masonry chimney damper assembly has been removed to allow for ease of installation of the steel liner
and the direct connect assembly. Always follow the direct connect manufacturer’s installation
instructions over any information supplied with this manual. Contact Country Flame or one of their
local dealers to resolve any questions or for inspection assistance before completing installation.

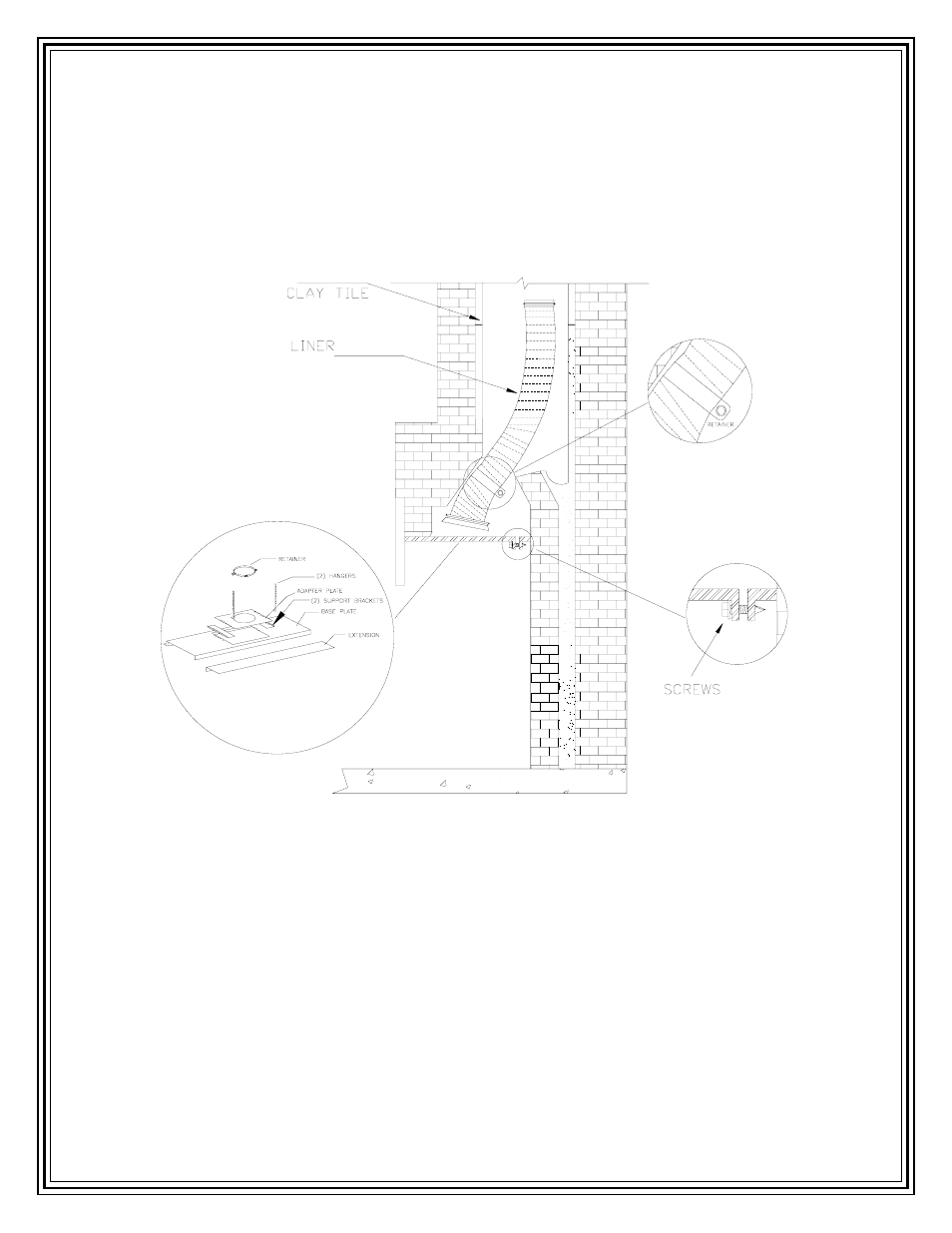

FIGURE 23: DIRECT CONNECT
For a direct connect installation, a damper seal plate is required to be installed in the throat of the
fireplace just below the damper plate (remove damper plate). If required, shims may be utilized to
support and level the OV26-BF-I Insert into the fireplace, especially if the firebox is lower than the
hearth. DO NOT install the stove’s firebrick until the stove unit is in its final position. The direct
connect flue is not as efficient as a full chimney liner but allows for installations that might otherwise
be costly or impossible to complete if only a fully chimney liner system were used.
After the OV26-BF-I Insert is properly aligned, supported, and installed, the attachment of the top trim
panel and trim pieces can be completed. Place the top trim panel on top of the insert sliding the clips
down over the raised metal bar on top of the insert. Ensure that all three-pieces of brass trim fit
together and have been slid down completely around the shroud panels. Failure to properly install the
brass trim will present an unsightly appearance and will create noise when blower fans are operated.
