Version 7.1 46
OV26-BF-I INSERT CLEARANCES
FIGURE 26 shows the required clearances from the OV26-BF-I Insert to any combustible
material. These are minimum clearances and additional clearance is acceptable.

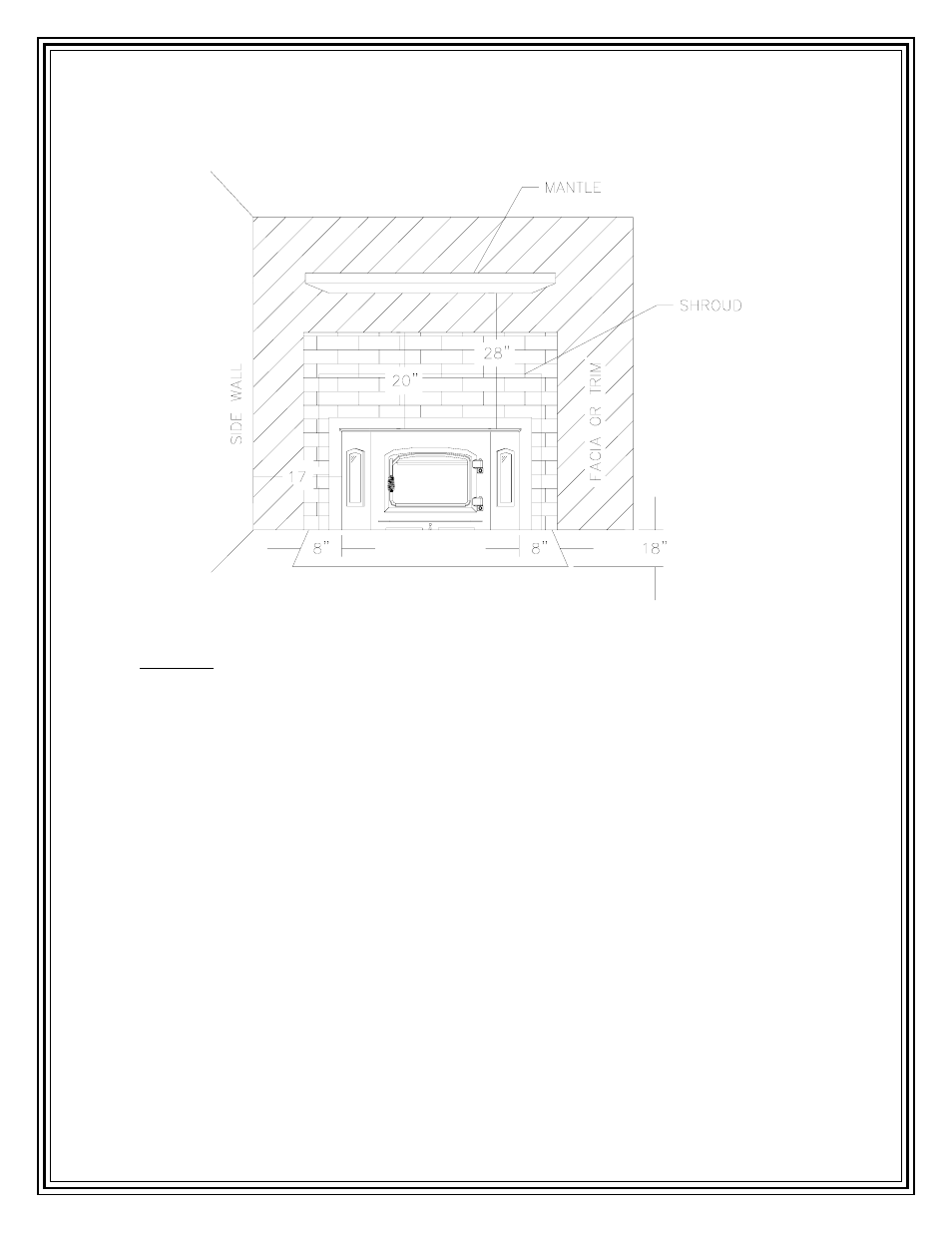

FIGURE 26: INSERT REQUIRED CLEARANCES TO COMBUSTIBLES
CAUTION:
COMBUSTIBLE MATERIALS MUST NOT PROTRUDE MORE THAN 1 INCH TO EACH SIDE
OF THE INSERT.
1. COMBUSTIBLE FLOORS IN FRONT OF INSERT MUST BE PROTECTED BY A UL
LISTED HEARTH PAD EXTENDING 18 INCHES TO THE FRONT AND 8 INCHES
FROM THE SIDE OF THE INSERT.
2. A MANTLE (UNSHIELDED) MUST NOT BE INSTALLED CLOSER THAN 28
INCHES TO THE TOP OF THE INSERT.
3. TOP FACING MUST NOT BE INSTALLED CLOSER THAN 20 INCHES TO THE TOP
OF THE INSERT.
4. SIDE WALLS (UNSHIELDED) MUST NOT BE INSTALLED CLOSER THAN 17
INCHES TO THE SIDE OF THE INSERT.
