Hardware Information

Hardware Information

This chapter provides information on the PCIe-7350 layout, con-
nectors, and pin assignments.

2.1

Card Layout

Figure 2-1 shows the PCIe-7350 board layout and dimensions.

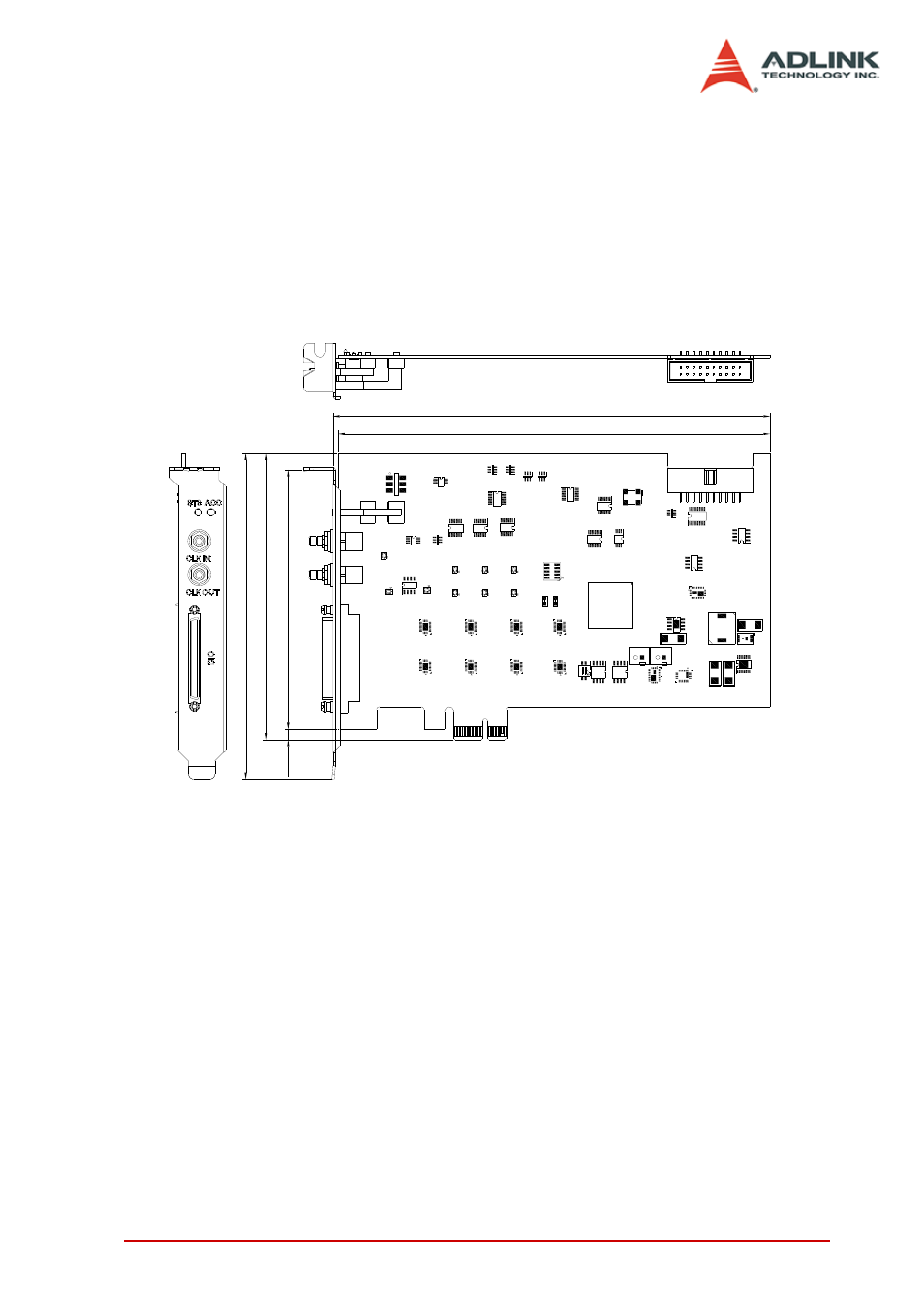

Figure 2-1: PCB Layout and Mechanical Drawing of the PCIe-7350
