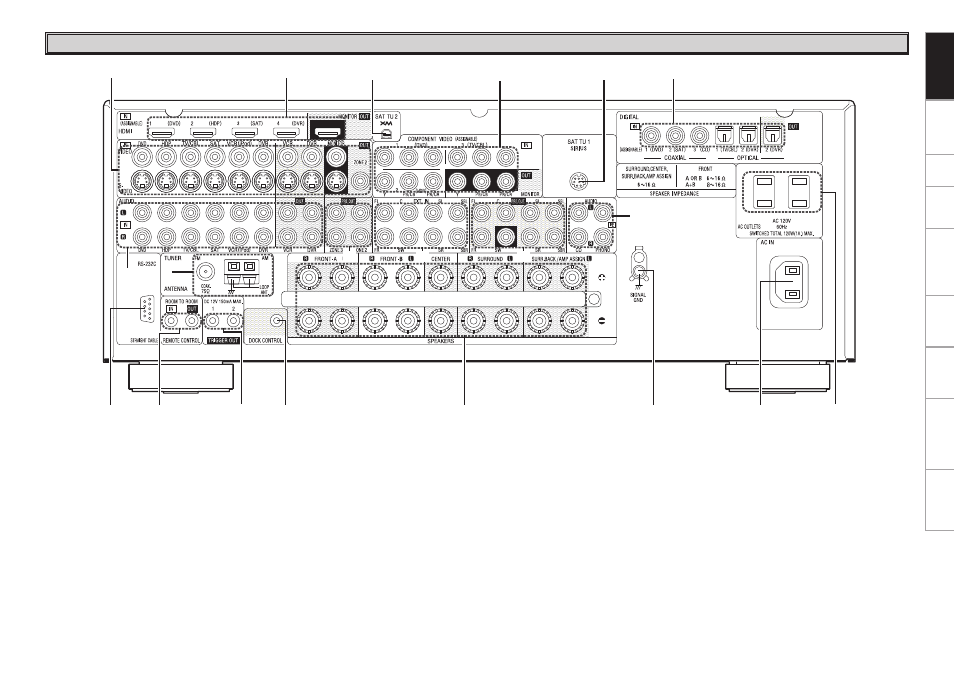

Rear Panel
q w e r t y u i
o Q1 Q0 Q3 Q2 Q4
Q5 Q6
Q8 Q7
Q5
Q7
q RS-232C connector ···································································(19)
w REMOTE CONTROL jacks ························································(19)
e TRIGGER OUT jacks ·································································(19)
r DOCK CONTROL jack ·······························································(13)
t Speaker terminals (SPEAKERS) ··············································(10)
y SIGNAL GND terminal ·····························································(13)
u AC inlet (AC IN) ········································································ (20)
i AC OUTLET ·············································································· (20)
o Digital audio connectors (OPTICAL / COAXIAL)··········· (12 ~ 16)
Q0 SIRIUS connector (SAT TU1) ···················································(18)
Q1 COMPONENT VIDEO connectors ······································(12, 14)
Q2 XM connector (SAT TU2) ·························································(18)
Q3 HDMI connectors ···················································· (11, 12, 14, 15)
Q4 VIDEO / S-VIDEO connectors ····································(12 ~ 16, 19)
Q5 Analog audio connectors (AUDIO) ································ (12 ~ 16)
Q6 FM/AM antenna terminals (TUNER ANTENNA)····················(17)
Q7 PRE OUT connectors ···················································· (10, 16, 19)
Q8 EXT. IN connectors ···································································(16)
