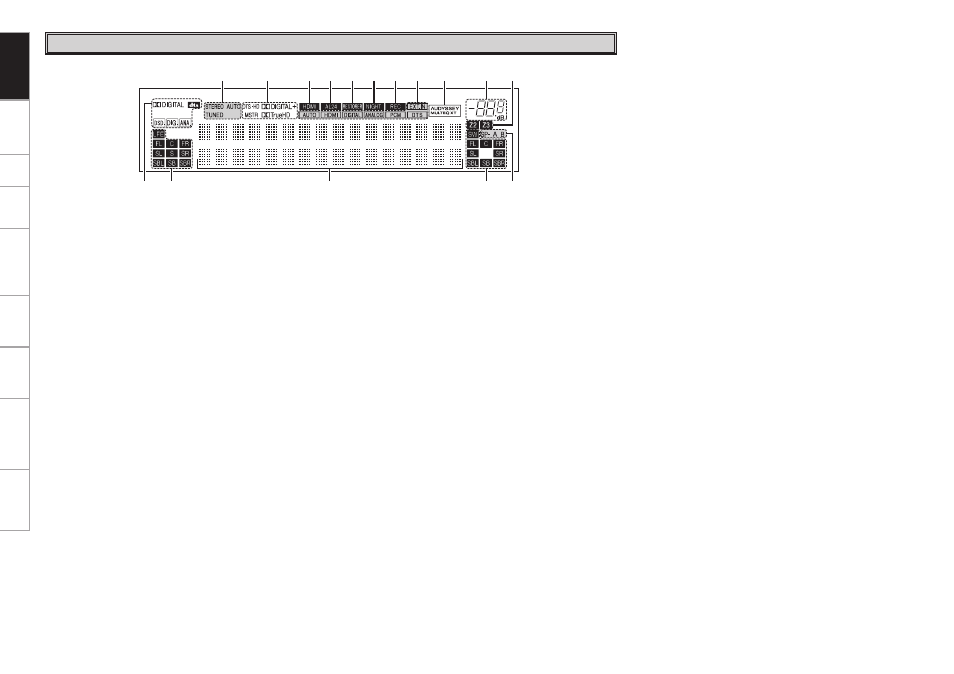

u y i Q5 Q6 o Q0 Q1 Q2 Q4 Q3
w q e r t
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
e Information display
The input source name, surround mode, setting values and other
information are displayed here.
r Output signal channel indicators
t Front speaker indicator
These light according to the settings of the front A and B
speakers.
y Multi-zone indicators
These light when the power for the respective zone is turned on.
u Master volume indicator
i AUDYSSEY MULTEQ XT indicator
This lights when MultEQ XT is selected.
o Input mode indicators
Q0 Recording output source indicator
This lights when the REC OUT mode is selected.
Q1 NIGHT indicator
This lights when the night mode is selected.
Q2 RESTORER indicator
This lights when the RESTORER mode is selected.
Q3 AL24 indicator
This lights when AL24 Processing Plus is activated (vpage 72).
Q4 HDMI indicator
This lights when playing using HDMI connections.
Q5 Decoder indicators
These light when the respective decoders are operating.
Q6 Tuner reception mode indicators
This lights according to the reception conditions when the input
source is set to “TUNER”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving analog stereo
broadcasts.
• TUNED
This lights when the broadcast is properly tuned in.
