For buttons not explained here, see the page indicated in parentheses ( ).
Part Names and Functions

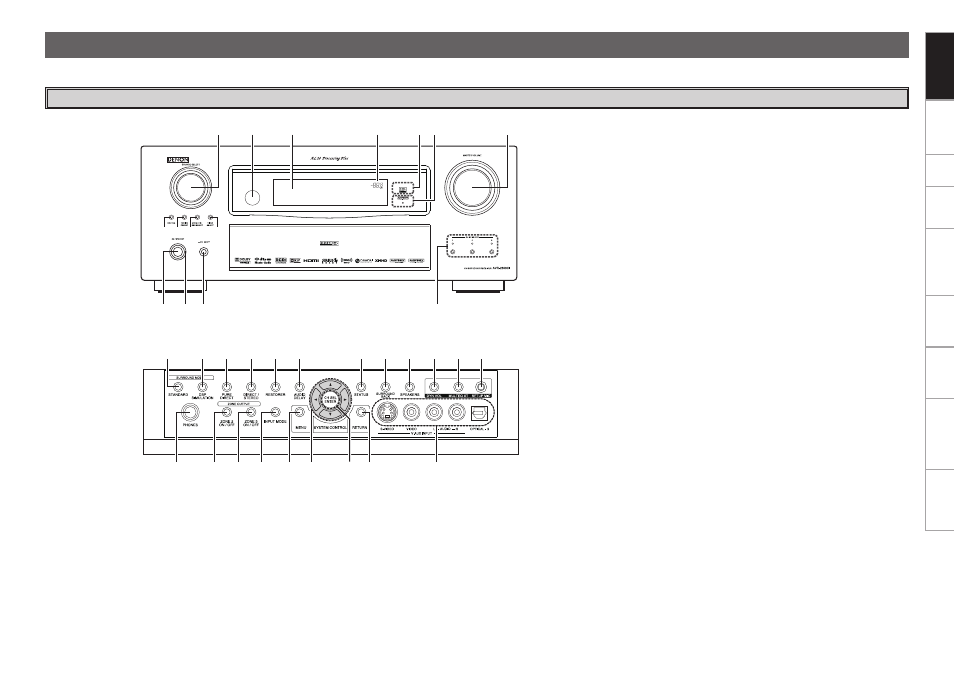

Front Panel
q
w e
r
t
o
i
u y
Q0
Q1
Q2 Q3 Q4
Q5
q
Power operation button (ON/STANDBY) ····························· (50)
w
Power indicator ······································································· (50)
e
Power switch (hON jOFF) ·················································· (50)
r
QUICK SELECT buttons / indicators ······································ (50)
t
MASTER VOLUME control knob ············································ (50)
y
AUDYSSEY DYNAMIC VOLUME indicator ····························· (46)
u
HD AUDIO indicator ································································· (41)
i
Master volume indicator
o
Display ························································································ (5)
Q0
Remote control sensor ····························································· (3)
Q1
SOURCE SELECT knob ··························································· (50)
Q2
SOURCE button ······································································· (50)
Q3
TUNING PRESET button ························································· (52)
Q4
ZONE2/3 / REC SELECT button ············································· (69)
Q5
VIDEO SELECT button ···························································· (36)
Q6
Headphones jack (PHONES) ··················································· (50)
Q7
ZONE2 ON/OFF button ··························································· (69)
Q8
ZONE3 ON/OFF button ··························································· (69)
Q9
INPUT MODE button ··························································(16, 37)
W0
MENU button ··········································································· (20)
W5
W6
W7
W8
W9
E0
E1
E2
E3
E4
E5
E6
W4
Q6
Q7
Q8
Q9
W0
W3
W1
W2
G
With the door openH
W1
Cursor buttons (uio p) ······················································· (20)
W2
CH SEL / ENTER button ···················································· (20, 59)
W3
RETURN button ······································································· (20)
W4
V.AUX INPUT connectors ························································(16)
W5
SETUP MIC jack ······································································· (23)
W6
MULTEQ XT button ································································· (45)
W7
DYNAMIC VOLUME button ···················································· (46)
b
About Dynamic Volume
Audyssey Dynamic Volume™ solves the problem of large variations
in volume level between television programs, commercials, and
between the soft and loud passages of movies.
Audyssey Dynamic EQ™ is integrated into Dynamic Volume so that
as the playback volume is adjusted automatically, the perceived
bass response, tonal balance, surround impression, and dialog
clarity remain the same.
b
About Dynamic EQ
Audyssey Dynamic EQ solves the problem of deteriorating sound
quality as volume is decreased by taking into account human
perception and room acoustics. Audyssey Dynamic EQ works in
tandem with Audyssey MultEQ® XT to provide well-balanced sound
for every listener at any volume level.
W8
SPEAKERS button ··································································· (50)
W9
SURROUND BACK button ······················································ (45)
E0
STATUS button ······································································· (48)
E1
AUDIO DELAY button ····························································· (47)
E2
RESTORER button ··································································· (47)
E3
DIRECT/STEREO button ························································· (41)
E4
PURE DIRECT button ······························································ (42)
E5
DSP SIMULATION button ······················································· (41)
E6
STANDARD button ·································································· (40)
