R L
R L
R L
R L
R L
R L
46#
800'&3
$&/5&3 463306/%
#"$,
3 -
463306/%
3 -
'30/5
3 -
"6%*0

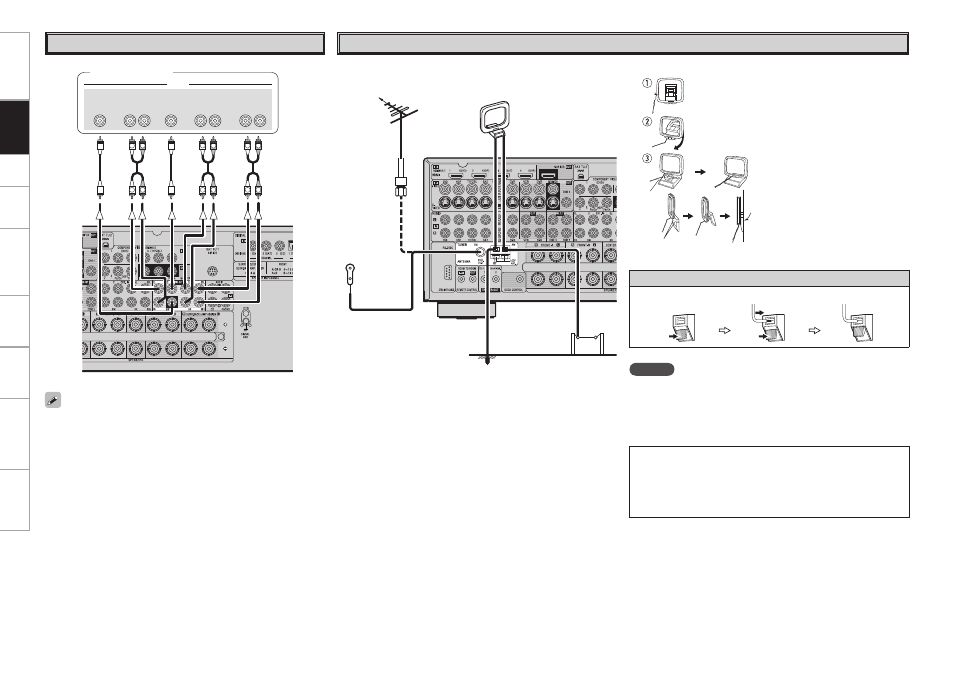

Antenna Terminals
An F-type FM antenna cable plug can be connected directly.
Direction of broadcasting station
AM loop antenna
(supplied) FM
antenna
75 Ω/ohms
Coaxial cable
FM indoor
antenna
(supplied)
Ground
AM outdoor
antenna
External Power Amplifier
When using just one surround back speaker, connect it to the left
channel (SBL).
Power amplifier
n AM loop antenna assembly
Remove the vinyl tie and take out
the connection line.
Bend in the reverse direction.
a. With the antenna on top of any
stable surface.
Mount b. With the antenna attached to a
wall.
Installation hole Mount
on wall, etc.
Connection of AM antennas
1. Push the lever. 2. Insert the conductor. 3. Return the lever.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
