Step 15
• Parts Needed For •
Ridge Caps & Panels
1
6869 Ridge Cap (2)
•
6641
Left Roof Panel (1)
• 6640 Right Roof Panel (1)
1

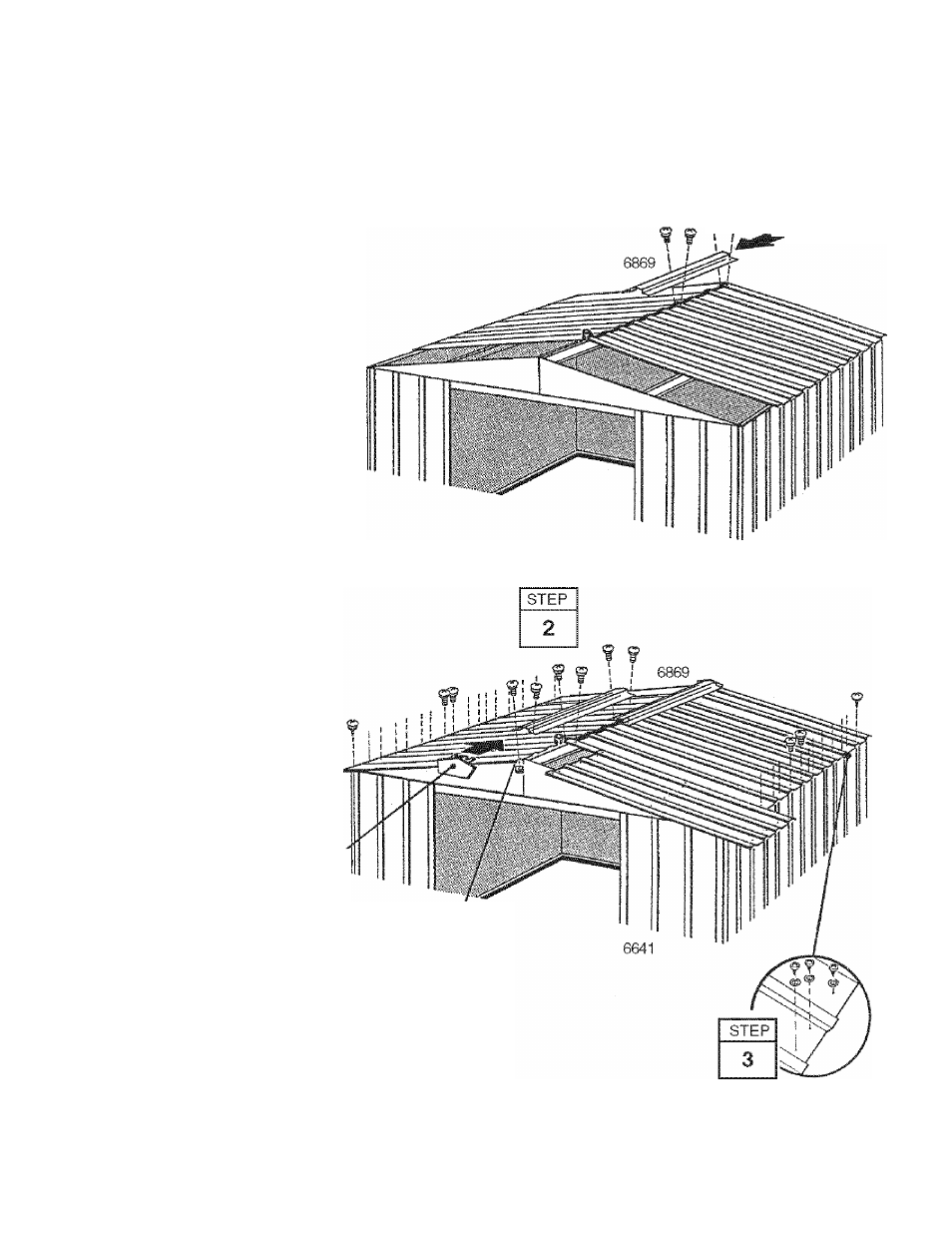

Install 1
ridge cap
on the com
pleted roof section using bolts and
nuts. Fasten the roof panel rib,
peak
cap
and ridge cap together using
bolts and nuts.
2
Fasten the remaining
left
and
right
roof panels
asyou unroll the weather
stripping tape, and press
it
down,
install the second ridge cap overlap
ping the first ridge cap. Align holes
and fasten using bolts and nuts. Fas
ten the remaining peak cap in the
same manner.
3
Fasten the lower end of the panels
to the side wall angles using screws
and washers. Use bolts and nuts
through wall angle overlaps at the
bottom of the panel.
STEP
^ ^ P^^Cap
6640
Peak Cap
Cut Weather
Strippingand
Fold Under
28
