Step 10
B
Parts Needed For #
Gable Assemblies
• 6000 Right Gable (2)
• 6001 Left Gable (2)
• 5971 Roof Beam Bracket(4)
The gables go on top of the front and
rear walls to support the roof beams.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.
1

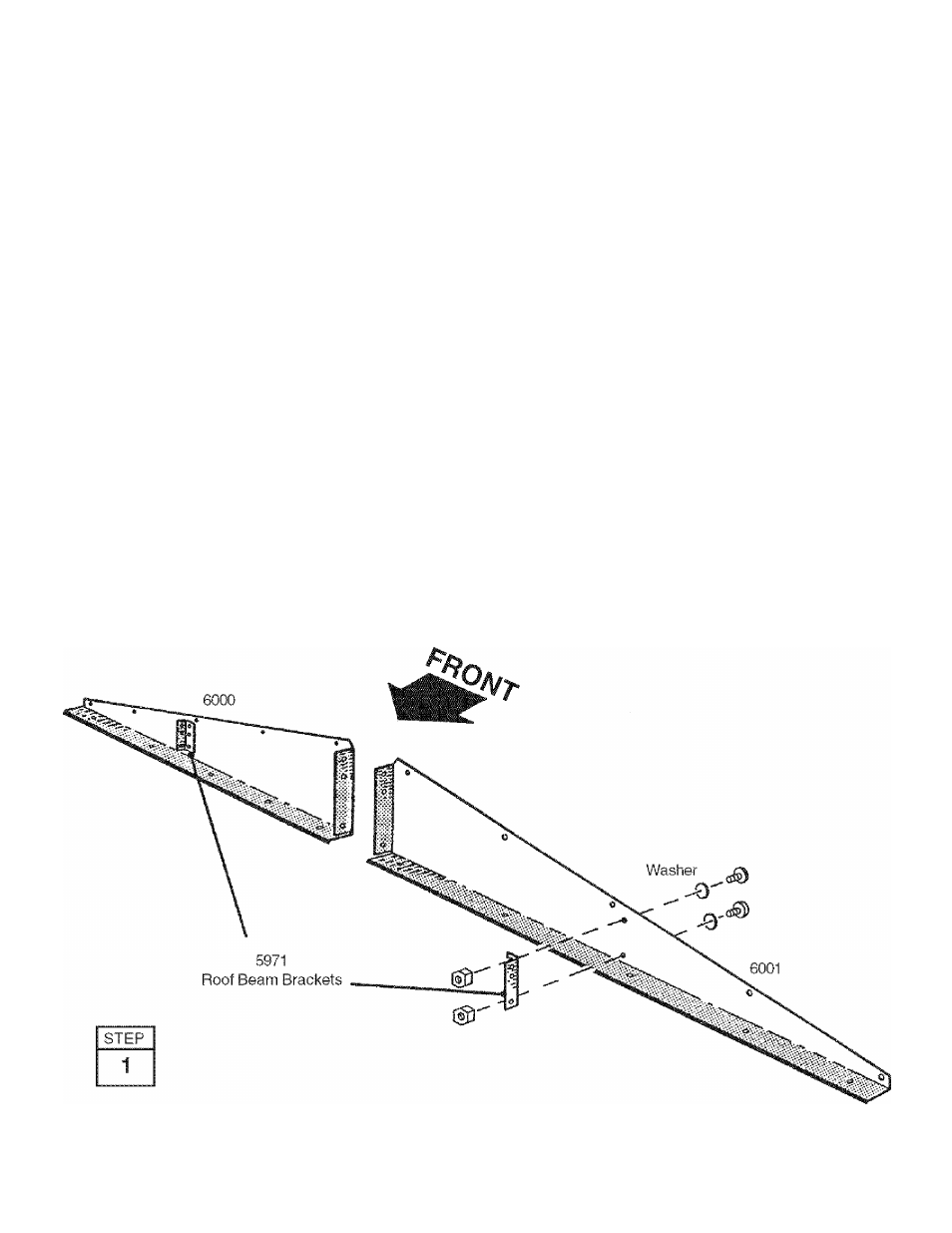

Attach the four
roof beam
brackets
to the gables using two
bolts, washers and nuts.
NOTE
Mounting leg of bracket must
face toward center of gable
and holes closest together
must be on top
