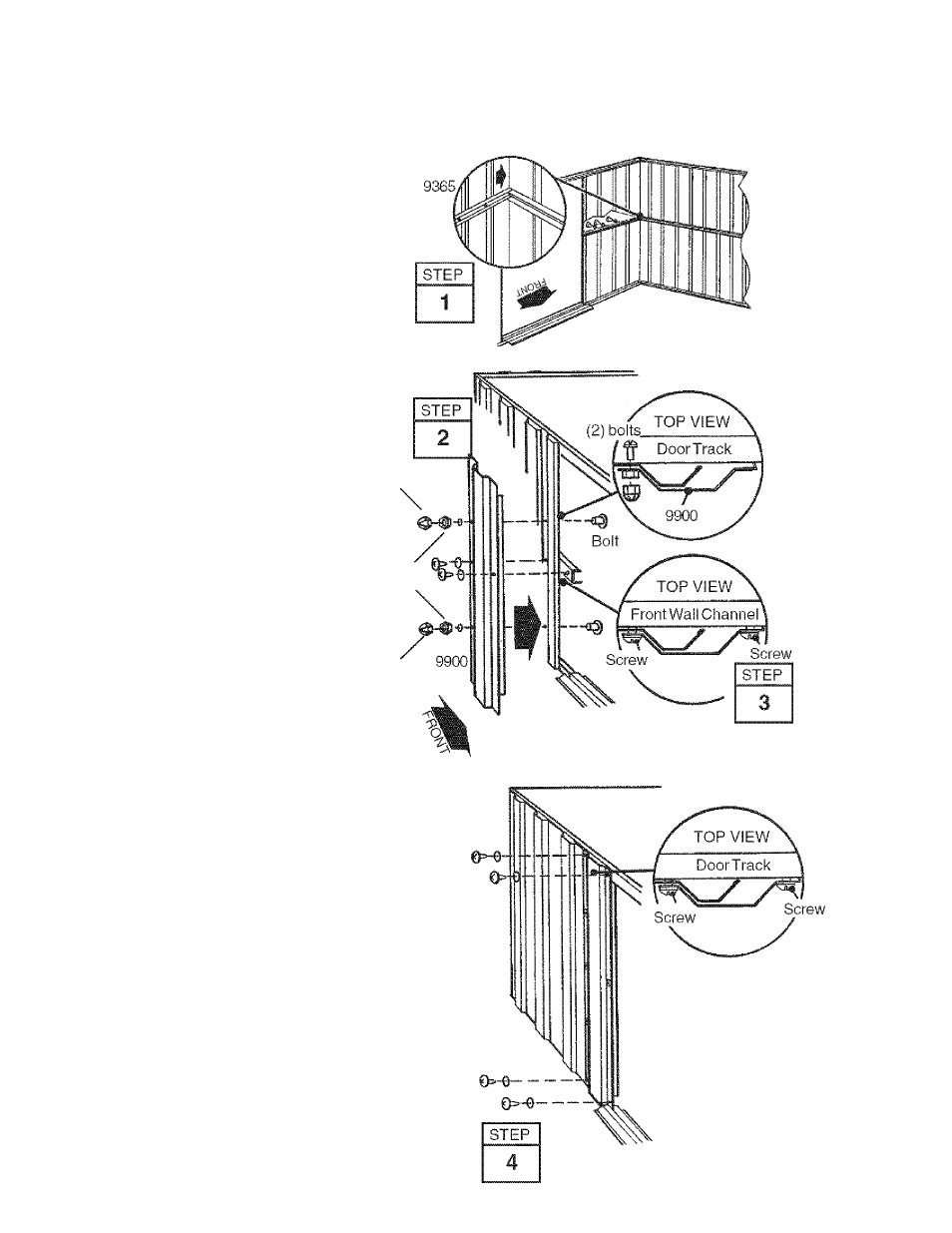

Step 9
• Parts Needed For •
Front Channel/Door Jamb
>
9900 Door Jamb (2)
>
9365 Front Wall Channel (2)
The door jambs reinforce the door
opening and provide an attractive
trim. Follow these steps for both
doorjambs.
1
Fasten the
front wail channels
in their positions between the end of
the side wall channel and the cor
ner panel using screws. Do not put
a screw in the hole at the end be
hind the door opening at this time.
2
Fasten a
door jamb
to the front
panel with two bolts, nuts and acorn
nuts, as shown.
3
Fasten the center of the door
jamb to the front wall panel and the
front wall channel with two screws.
INSIDE OF
BUILDING
Acorn Nut
Hex Nut
Acorn Nut
Front Wall Channel
Cross-Section
Top View
4
Fasten the top of the doorjamb to
the door track with two screws. Do
the same for the bottom into frame.
Repeat steps 2 through 4 for the
opposite door jamb.
