Floor frame, Note, Step 5 – Arrow Storage Products KM1010 User Manual

Page 18

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Step 5

Parts Needed For

Floor Frame

I Front Floor Assembly (1)
' Side Floor Assembly (2)
> Rear Floor Assembly (1)

S I 8

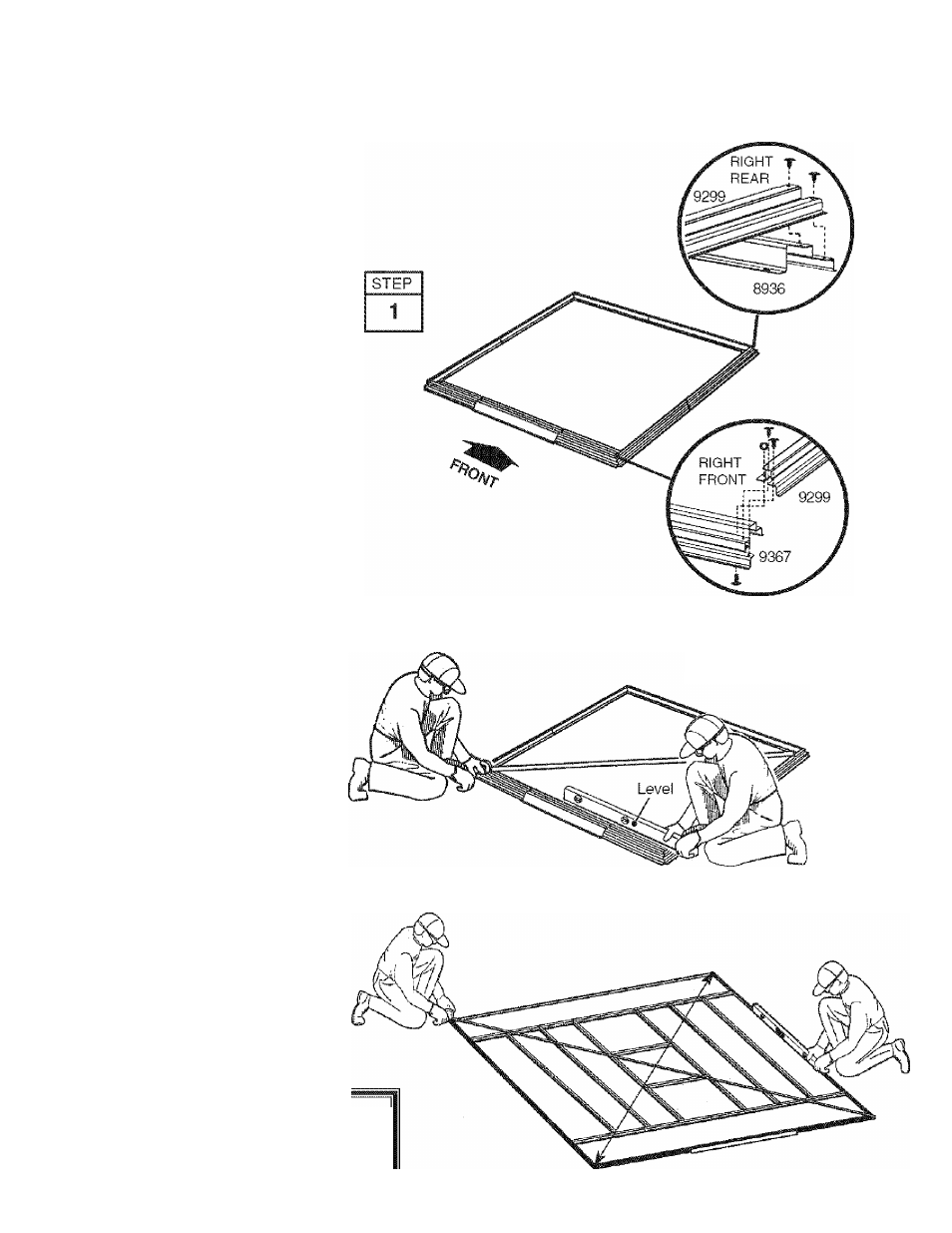

Assemble the four corners of the

floor frame using two screws at each
corner as shown. At the front corners
fasten

bolts

through

from

the bottom with nuts on top.

Measure the floor frame diago

nally. When the diagonal measure
ments are equal, the floor frame is
square.

NOTE

If using a wood platform or

concrete slab do not fasten the

floor frames to your base at this

time. You will anchor the

building after it is erected.

NOTE

' you have purchased a Floor

Frame Kit you need to

install it at this time.

When Diagonal Measurements
are Equal the Floor Frame
is Square.

STEP

The floor frame must be square

and level or holes will not align
