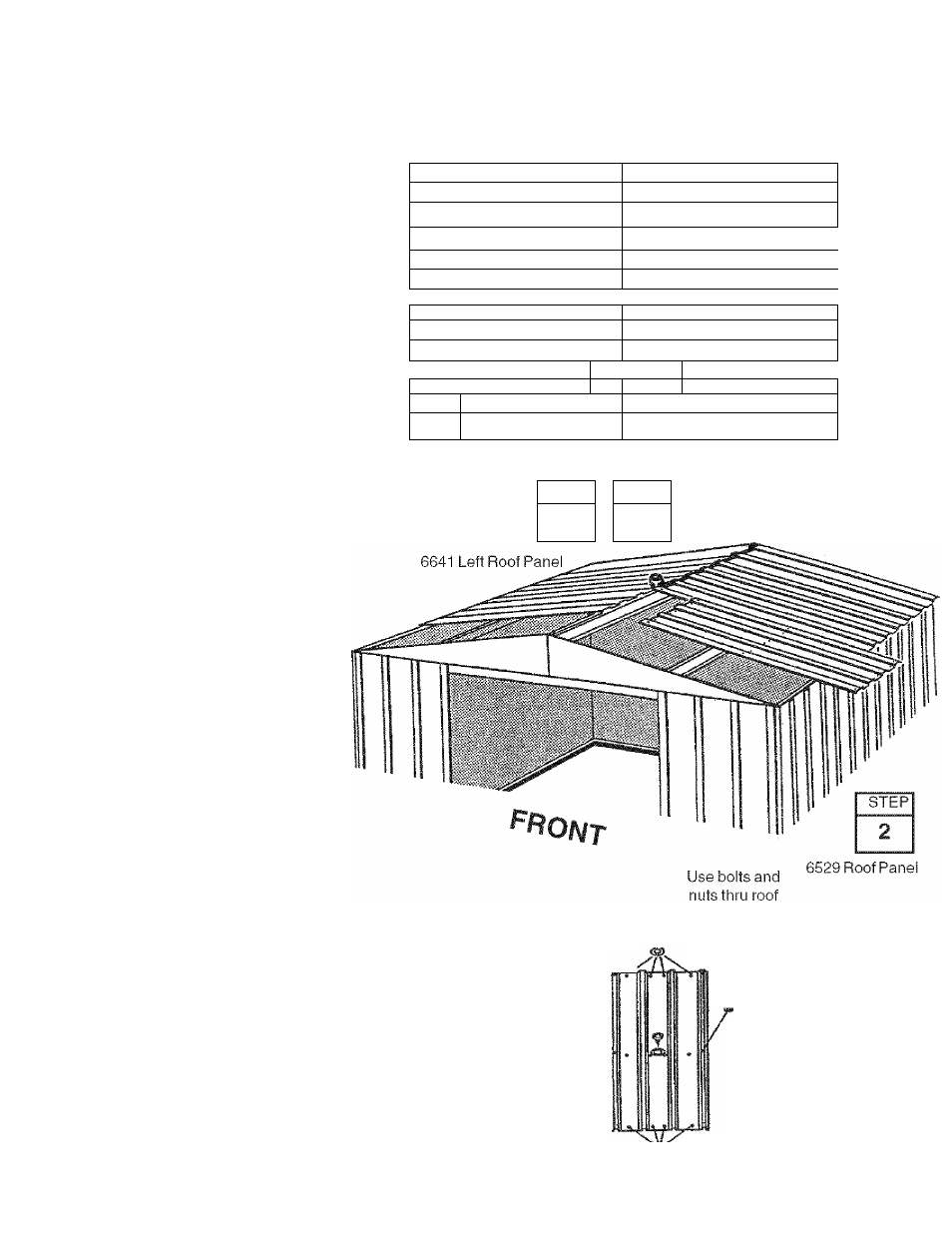

Step 14
Parts Needed For
Roof Assembly
'6641 Left Roof Panel (1)
1
6529 Roof Panel (4)
1
Install a
left roof panel
at the left
rear corner of the roof.
2
Install
4 roof panels
in the se
quence and positions shown. Fol
low fastener sequence and instruc
tions in Steps 13 thru 15 while fasten
ing roof panels. Fasten roof panels at
center of building to overlapping roof
beam using bolts and nuts.
NOTE
Narrow roof panel rib (with bead
on it) is always overlapped by
wide rib of adjacent panel
3
Cover the joint at the peak with
weather stripping tape. Unroll the
tape and press it down over the open
ing at the ridge as you install each
roof panel. Do not cut the tape at this
time.
NOTE
If roof beam holes do not line up
with the roof panel holes, shift the
building from left to right.
If this does not help, your building
may not be level. Shim the
corners until holes line up.
6641
6529
6529
6640
2 . ■
1 •
4
R " 1
i
..'... .. - "Tzzzzzzz:!
.............6 ....................... !
b
8 . . 1
7 .
6640
6529
6529
6641
FRONT
STEP
STEP
1
3
Screws To
Roof Beam
Fasten At
Overlap with 4
Bolt
Screws To
Roof Beam
beam overlaps at
the lop and
middle of panel
S 14
^ Screws At
<» Bottom Attach
To Wall Angle
