Step 4
• Parts Needed For •
Door Track Assembly
• 6403 Door Track Splice (1)
• 9366 Door Track (2)
The door track assembly supports
the sliding doors and reinforces the
frontwall. It is made up of three pieces.

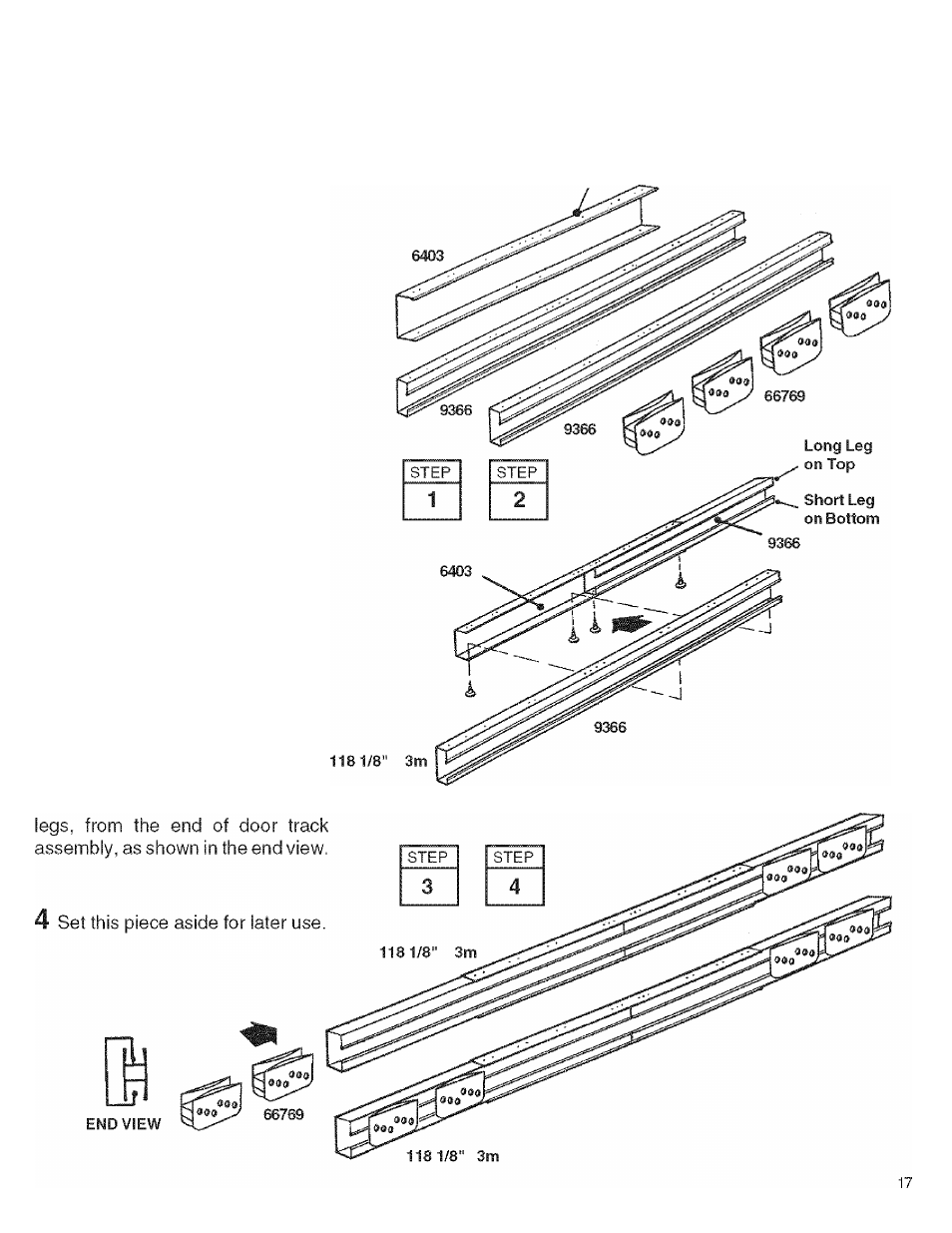

1
Using the
door track splice,
(painted),
join
the
door track
(galvanized) pieces end-to-end as
shown.
2
Insert four screws
from the under
side only.
Hint:
The holes in the top side of the
doortrack assembly are for fastening
the gable to the top of the front wall in
a later step.
NOTE:
DoorTrack Splice (painted part)
3
Position
door slides
onto the
