Step 12
Parts Needed For
Roof Beams
' Main Roof Beam (1)
' Single Roof Beam (2)
1

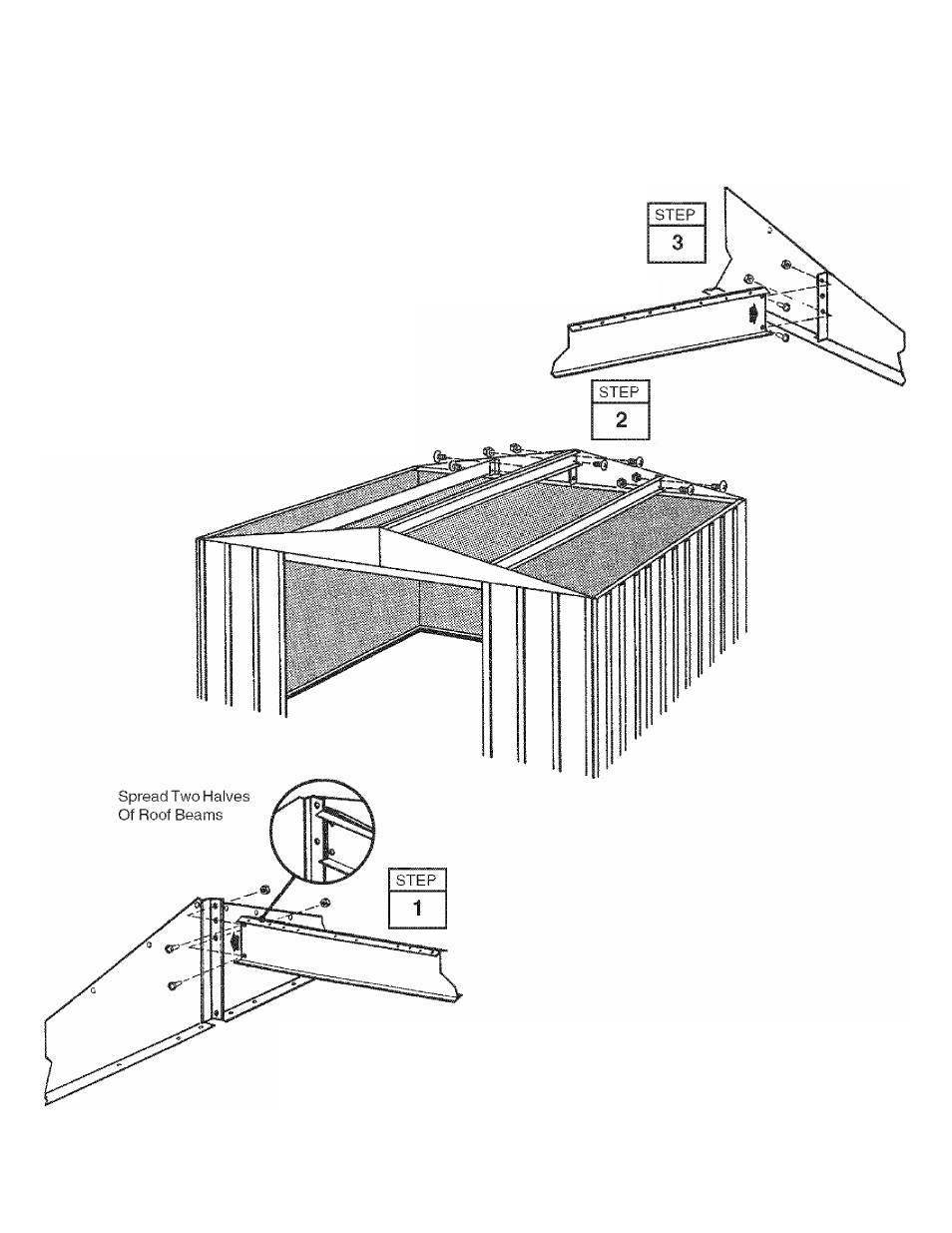

Spread the two halves of the
main
roof beam
and fasten the roof beam
to the gable brace of the front gable.
2
Fasten the other end of the main
roof beam to the gable brace of the
rear gable.
3
Fasten the
single roof beams,
small holes on top, as shown using
bolts and nuts.
Single Roof Beam Assembly
Main Roof Beam Assembly
