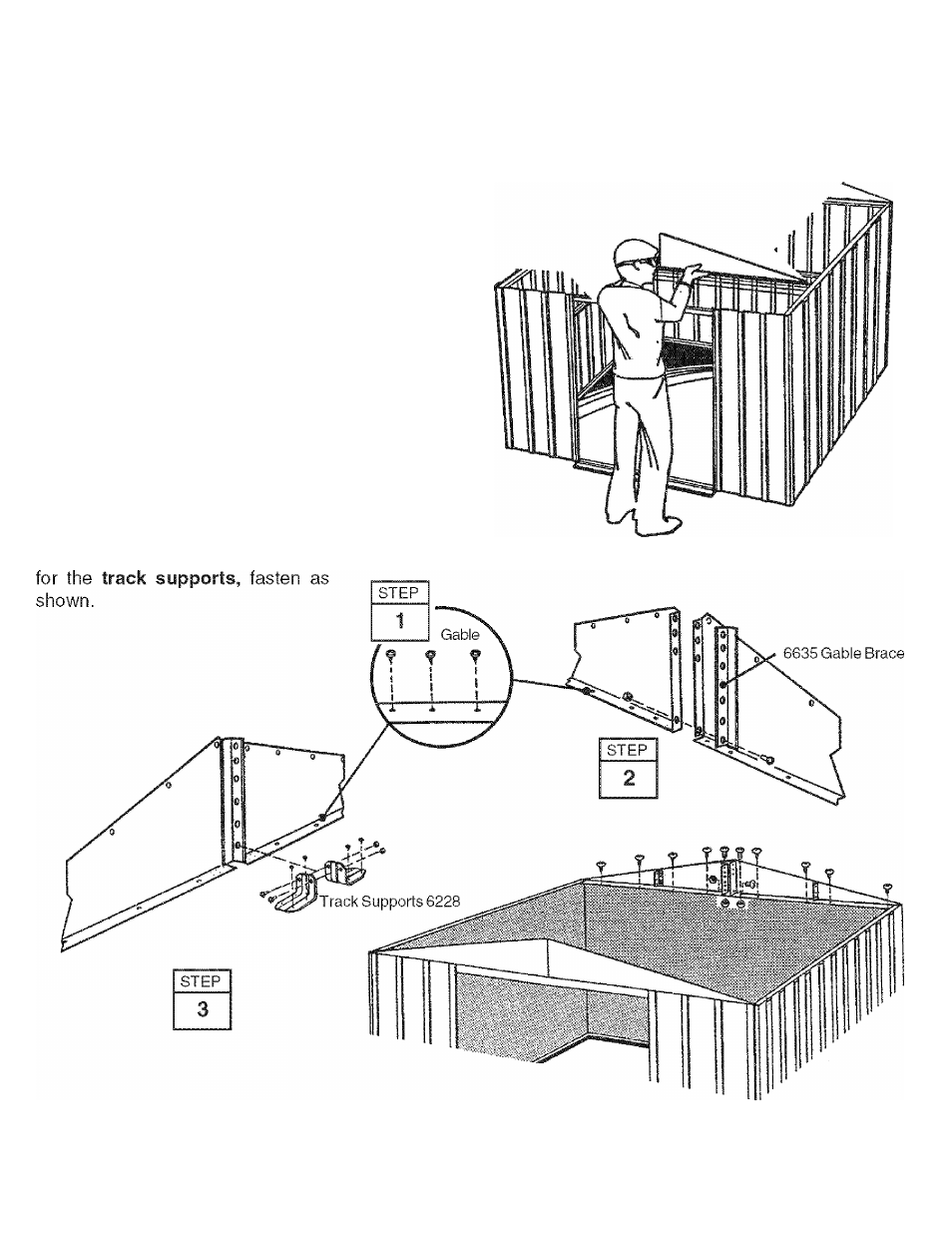

Step 11
Parts Needed For
Gables/Braces
• Left Gable Assemblies (2)
• Right Gable Assemblies (2)
• 6635 Gable Brace (2)
1
Lift and fasten a right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint:
On the rear gable, use a bolt
and nut at the overlapping rear wall
angle. On the front gable, leave out 2
screws closest to center gable leg.
2
Join the
left
and
right gabies
together with a
gable brace
using a
bolt and nut in the bottom hole
only.
3
Repeat Steps 1 & 2 for the door
track on the front of building, except
