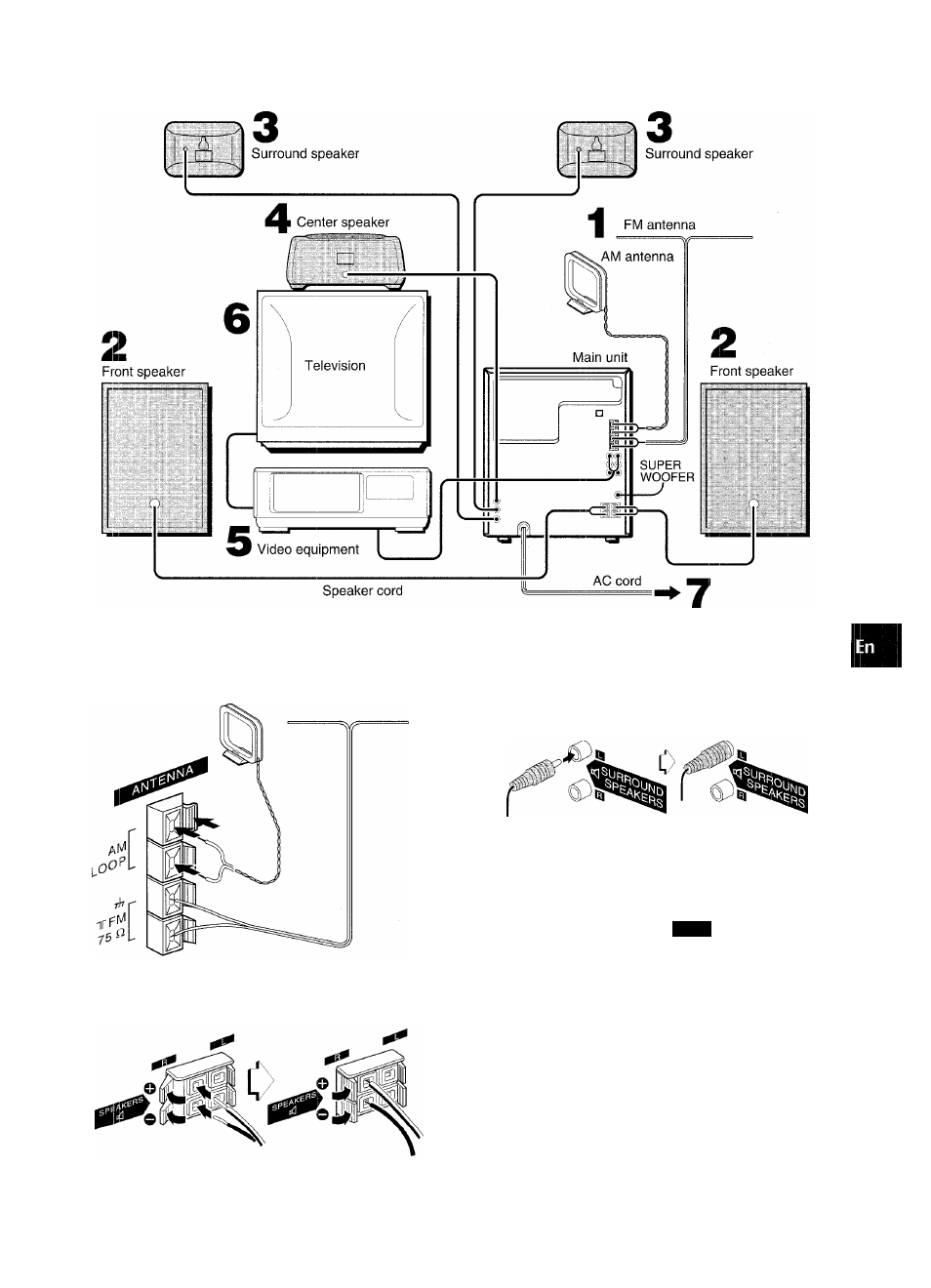

1 Connect the supplied antennas.
Connect the FM antenna to the FM 75 Cl terminals and the
AM antenna to the AM LOOP terminal.
3 Connect the surround speakers.
Connect the surround speaker cords to the SURROUND
SPEAKERS “d terminals.
There is no difference between the surround speakers. Both
speakers can be connected as R (right) or L (left).
4 Connect the center speaker.
Connect the center speaker cord to the CENTER SPEAKER
Kl terminal.
2 Connect the front speakers.
Connect the speaker with R mark to SPEAKERS R terminals,
and the speaker with L mark to SPEAKERS L terminals.
in
z
o
it
(E
<
tL
lU
CE
(L
5 Connect the video equipment.
Connect the VIDEO/AUX jack of this unit to the audio output
jack of the video equipment with an optional audio connecting
cord.
6 Connect the Television to the video equipment.
Refer to the Operating Instructions of the connected equip
ment for details.
7 Connect the AC cord to an AC outlet.
The cords with white stripes should be connected to the O
terminals and the other cords to the © terminals.
