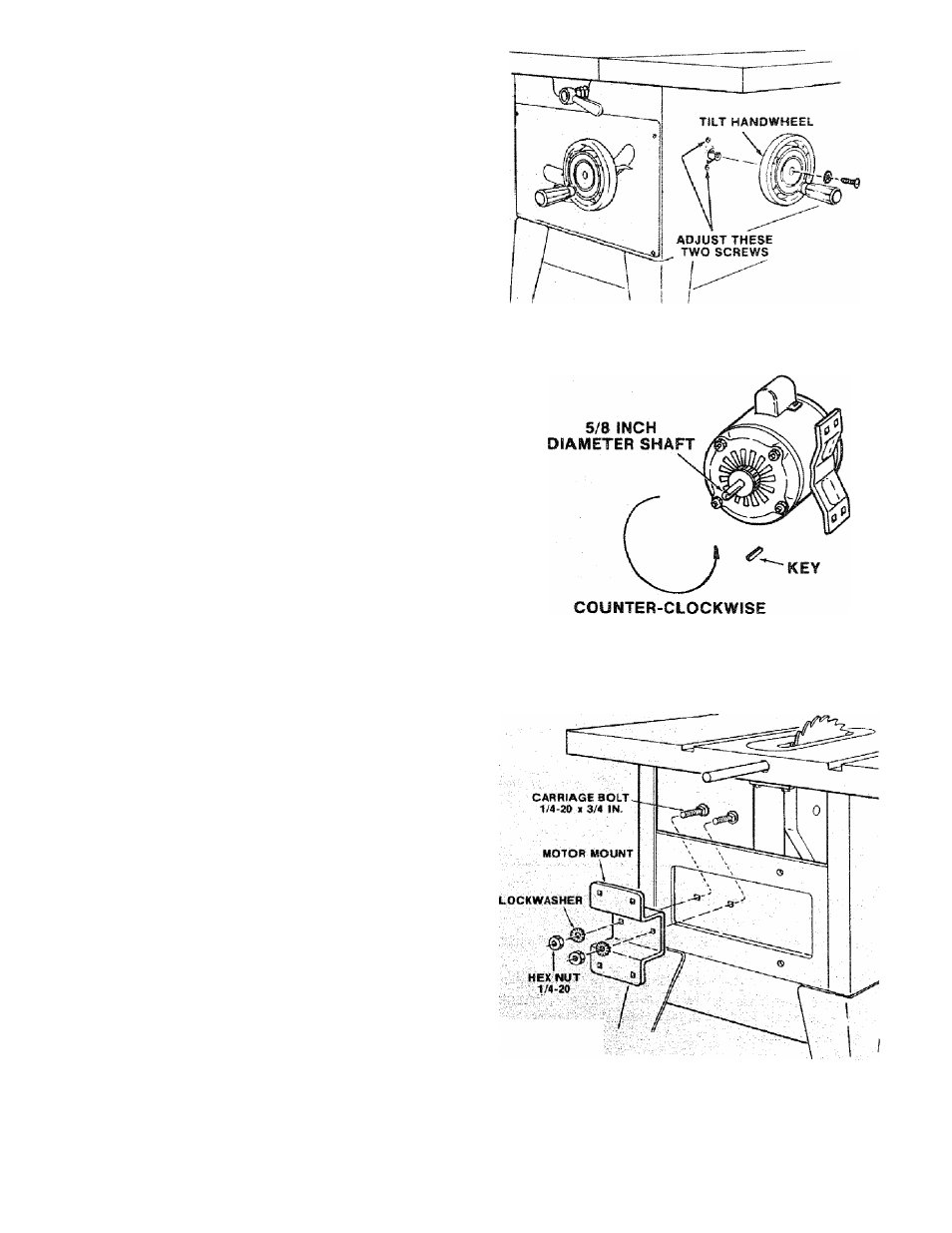

TILT MECHAiHSfi ■
Lower blade to 2 inches or closer to the tabletop
before tilting blade. Failure to do this may result in
damage to your saw.
The handwheel should turn freely without binding.
The turning action can be adjusted by tightening or
loosening the screws in the bearing retainer
NOTE: Tilt Handwheel must be removed to adjust.
When adjusting the screws in the bearing retainer
using a screwdriver, hold the nut inside using a 3/8
in. wrench.
fWIOUNTING
THE MOTOR
1. CHECK WOTOR ROTATION
A.
The
motor
must
rotate
COUNTER
—
CLOCKWISE when viewed trom the shaft end.
B. MAKE SURE “KEY” IS REMOVED FROM
SHAFT.
C: Place the motor on your workbench or on the
floor.
D. Plug the cord into a property grounded outlet
{See “Motor Specifications and Electrical
Requirements” Section.) Notice the rotation
of
the
shaft.
If
it
is
not
turning
COUNTERCLOCKWISE,
do
not
continue
assembly. Contact your nearest Sears Store or
Service Center.
E. Remove plug from outlet.
ROTATION
W A R N I N G : T O A V O I D I N J U R Y F R O M
ACCIDENTAL START, MAKE SURE MOTOR IS
NOT PLUGGED INTO SWITCH OR ANY OTHER
ELECTRICAL OUTLET
2. From among the loose parts find the following:
1 Motor Mount
2 Carriage Bolts 1/4-20 x 3/4 in. long
2 Hex Nuts 1/4-20 (aprox. dia. of hole 1/4 in.)
2 Lockwashers External Type 1/4in. (approx.dia.
of hole 1/4 in.)
3. Insert carriage bolts through square holes in rear
panel of table saw and through square holes in
motor rriount. Install lockwashers and hex nuts.
4. Tighten nuts.
14
