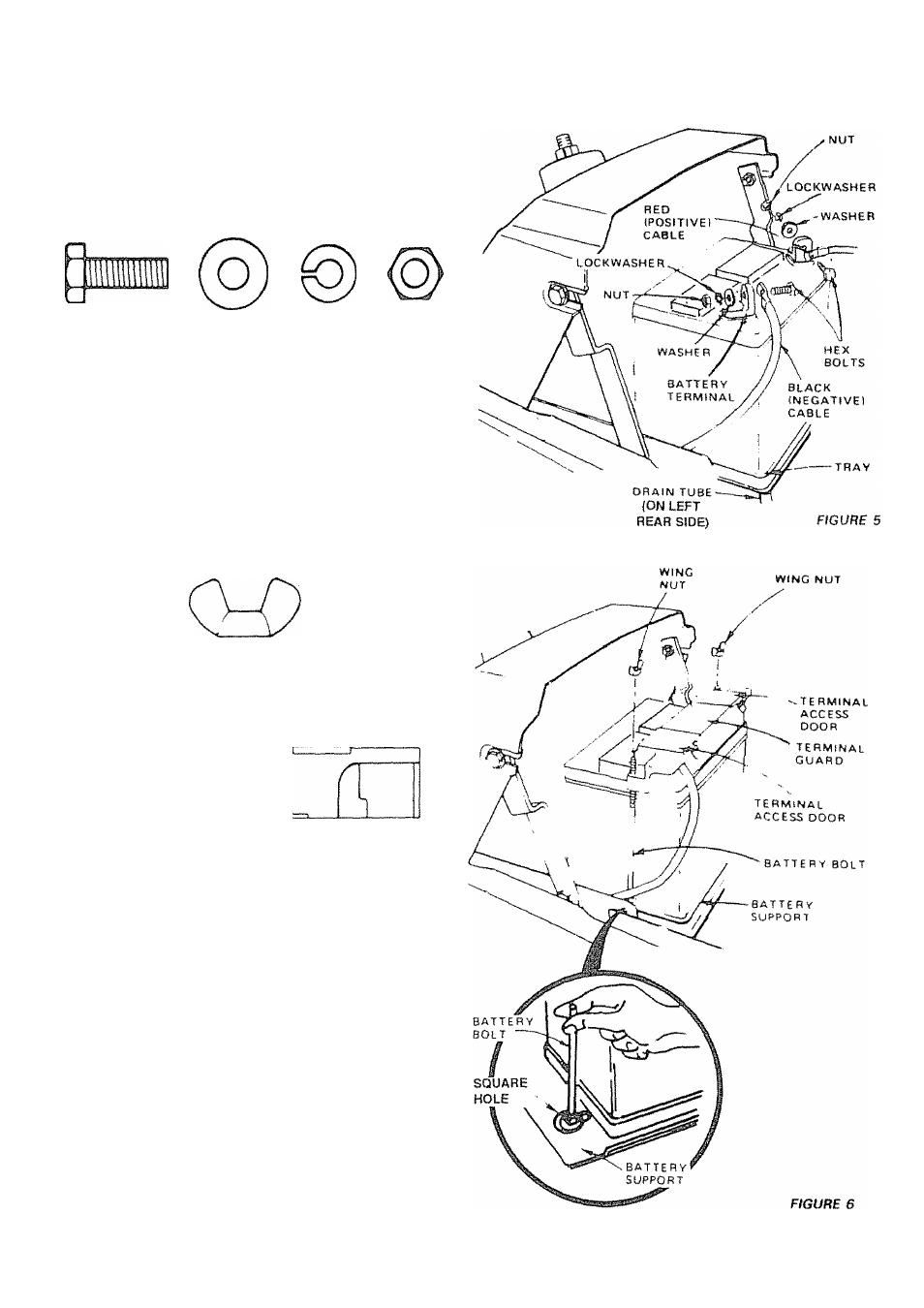

e Connect RED battery cable to positive (+}
battery terminal with hex bolt, flat washer,
lockwasher and hex nut (shown full size below)
found in bag of parts (Fig. 5}. Tighten securely,
f. Connect BLACK ground cable to negative (-)
battery terminal with remaining hex bolt, flat
washer, lockwasher and hex nut (shown full
size below) found in bag of parts (Fig. 5).
Tighten securely.
ASSEMBLY
NOTE: IF YOU HAVE A WEAK BATTERY, SEE START­
ING YOUR TRACTOR WITH A WEAK BATTERY"
IPAGE 20)
9 Using the square hole on one side of the battery
support (Fig.. 6} insert one battery bolt, head of bolt
down. Fasten the battery bolt to the terminal guard
using wing nut as shown (Fig.. 6}. Bolts, nuts, and
terminal guard, shown below, are found in bag of
parts.
Assemble the remaining battery bolt to other side
of battery support and fasten terminal guard to it
with remaining wing nut.. Tighten both wing nuts
securely (by hand)) at the same time (Fig 6) .
TERMINAL DOORS
\
I.
Replace air intake duct (Fig 4} Make sure
bottom Up of duct sits between battery and lip
of battery tray.
i Remove plastic from tractor hood and close
NOTE: USE TERMINAL ACCESS DOORS (FIG 6) FOR:
1 INSPECTION FOR SECURE CONNECTIONS
(TIGHTEN HARDWARE)
2 INSPECTION FOR CORROSION
3 TESTING BATTERY
4 JUMPING (IF REQUIRED)
5 CHARGING (IF REQUIRED)
A
KEEP TERMINAL ACCESS DOORS CLOSED
WHEN NOT IN USE
DO NOT START ENGINE UNTIL MOWER
SUSPENSION BRACKET HAS BEEN RE
LEASED. SEE MOWER AND DRIVE BELT
INSTALLATION, PAGE 10.
