20 HP. GARDEN TRACTOR - MODEL NUMBER 917.254460 AND 917.250040
LIFT ADJUSTMENT
DESCRIPTION
Shaft- Lift
Link' Lift, Adjust
Trunnion - Lift
Nut Lock 7/16 - 20 UNF
Klip Ring
Bracket - Suspension
Upstop Mower
Arm - Suspension - R.H.
Retainer Spring
Trunnion - Lift-Lower
Nut- Hex Fin. 1/2 -13
Arm - Suspension - L.H
E-Ring
Bolt - Carriage 3 / 8 - 1 6 x 1
Bolt Carriage 3/8 - 16 x 3/4
Washer 29/32 x 1 - 1/4 x 16 Ga.
Nut, Hex Jam 3/8 -16
Nut - Hex Jam 7/16-20
Bolt - Hex 3 / 8 - 1 6 x 1 - 1/2
Button - Plunger

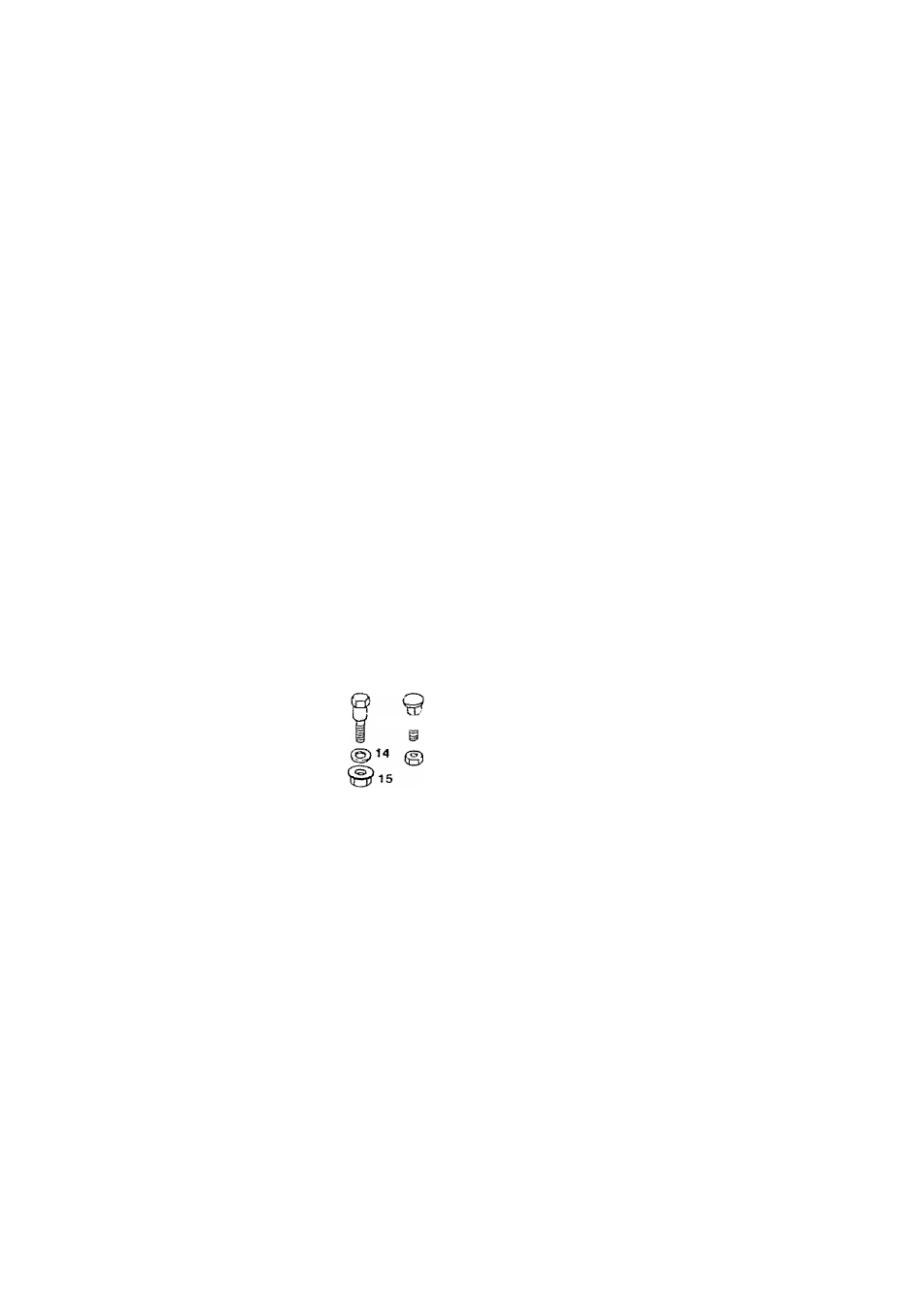

REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
1 100734K Knob, Height Adjustment
2 110807X Nut Hex Special
3 110729X Rod- Adjust-Lift
4 STDS60907 ‘ Pin-Cotter 3/32 X 1/2
5 2876H Spring
6 19131016 Washer 13/32 x 5/8 x 16 Ga.
7 STD541437 * Nut - Lock 3/8 -16
8 19151216 Washer 15/32 x 3/4 x 16 Ga.
9 11081 OX Trunnion
10 105848X Bolt, Shoulder 3/8 - 16
11 125631X Grip- Handle
12 122364X Plunger- Lever
13 121004X Lever - Lift (Includes Key No.
17)
Spring Washer 14 110739X
15 73980600 Center Lock Flangenut 3/8 x 16
16 4939M Retainer- Spring
17 121006X R o d - Lever
18 4921H Retainer - Spring
19 19171516 Washer 17/32 X 15/16 x 16 Ga.
20 110029X Link - Lift
KEY PART
NO. NO.
21 124S16X
22 110448X
23 110447X
24 73710700
25 12000037
26 10S864X
27 121252X
28 121S98X
29 9135R
30 106308X
32 STD541050 *
33 121599X
34 12000022
35 STD533710 *
36 STD533707 *
37 19292016
38 STD541237 *
39 STD541343 *
40 74780624
41 122365X
■STANDARD HARDWARE--PURCHASE LOCALLY
NOTE; All component dimensions given in U S inches -
1 inch = 25 4 mm
A B
10 H 36 a 35 40
37
