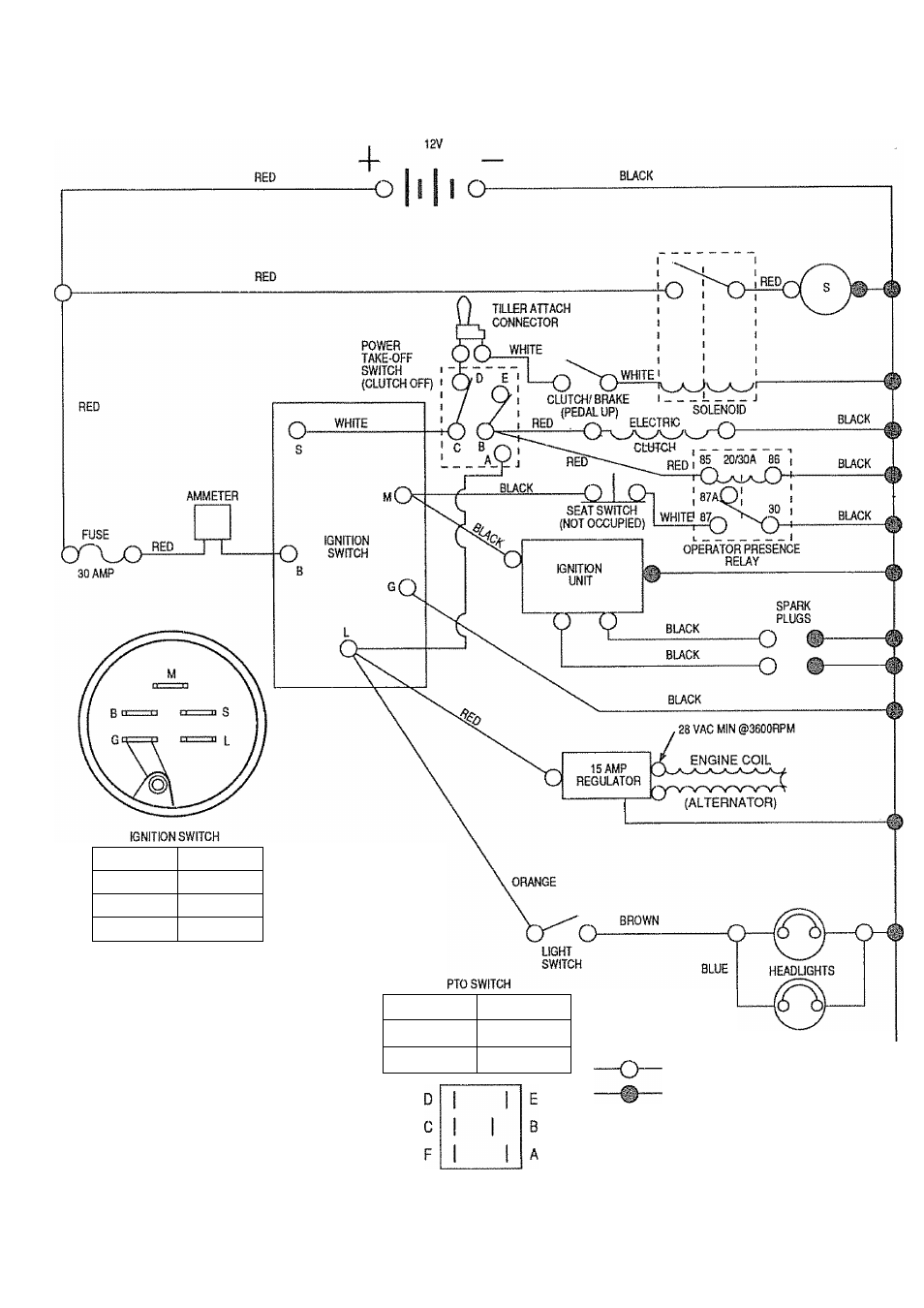

20 HP. GARDEN TRACTOR - MODEL NUMBER 917.254460 AND 917.250040
SCHEMATIC
POSITION
CIRCUIT
OFF
M-G
ON
B-L
START
B-S
WIRING INSULATED CLIPS
NOTE: If wiring insulated clips were
removed for servicing of unit, they
should be replaced to properly secure
your wiring
POSITION
CIRCUIT
OFF
B&E, C&D
ON
B&A
Removable Connectors
Non-removable
Connectors
rtl
CHASSIS
GROUND
23
