MPAIR & ADJUSTMENT

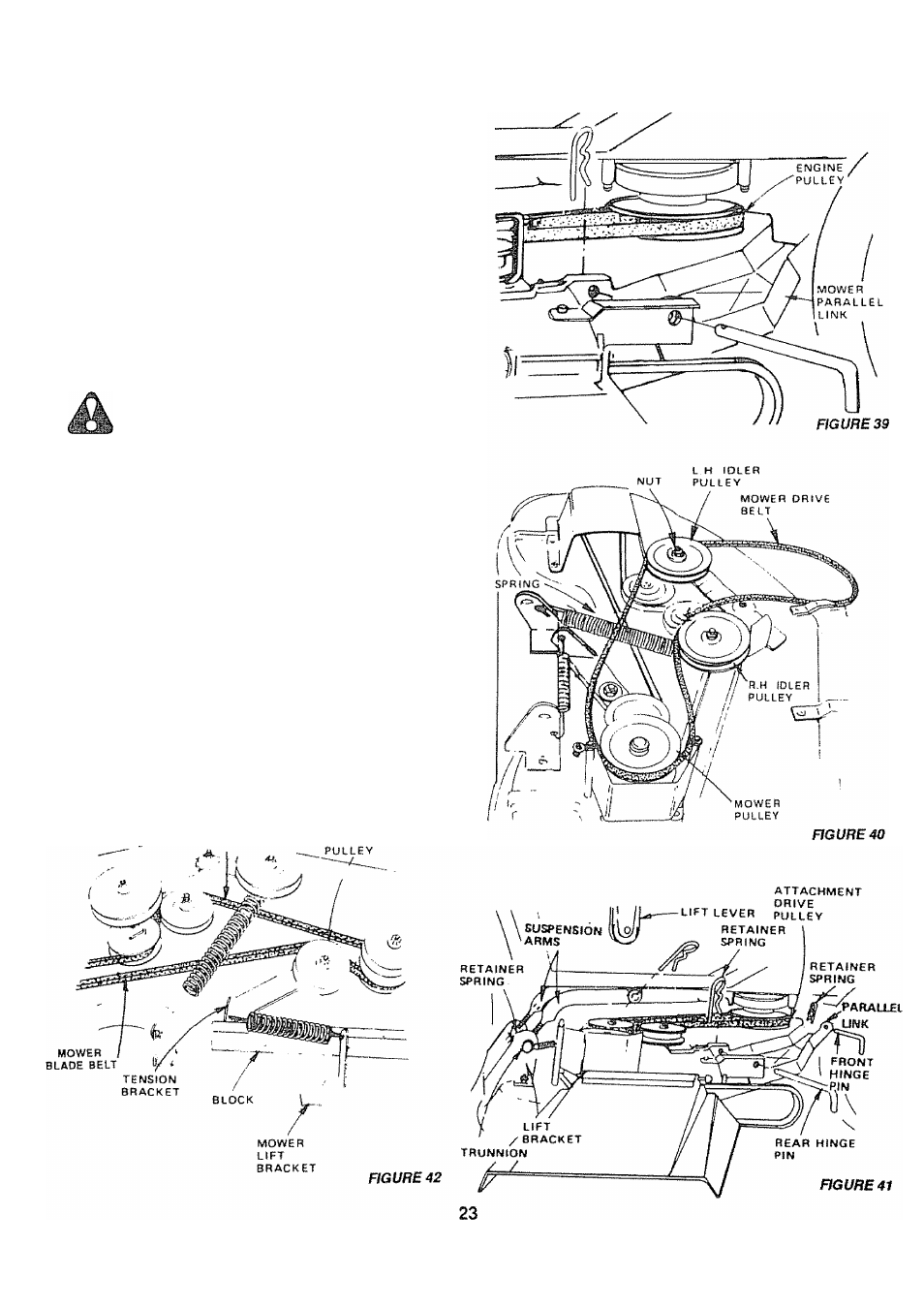

7. Mower FtemomI
a. , RemovB mower drive belt. (See "MO WER DRIVE BEL T
REMOVAL, ’ page 22, through step 3.)
b. Pull belt off engine pulley (Ftg. 39).
c. Pull retainer springs out of rear suspension trunnbns
Remove rear suspension trunnions from lift brackets
(Fig, 41)
d Pull retainer spring out of rear hinge pin. Remove rear
hinge pin (Fig 41).
e Pull retainer spring out of front hinge pin Remove front
hinge pin (Fig. 41) and parallel link
f Use lift ¡ever to raise suspension arms Slide mower out
from under trmtor.
BEFORE DRIVING YOUR TRACTOR, IN­
STALL MOWER OR REMOVE PARALLEL
LINK (FIG. 41).
NOTE; IF AN ATTACHMENT OTHER THAN THE MOWER
DECK IS TO BE MOUNTED ON THE TRACTOR, THE L H AND
R H, SUSPENSION ARMS (FIG 41) SHOULD BE REMOVED
8. Mower Blade Drive Belt Replacement
a.
b
d
e
f
Remove mower drive belt (See page 22.)
Remove mowerfrom tractor. (See "MOWERREMO VAL,'
above.)
Pull belt towards rear of mower at tensioning pulley (Fig
42). Place a block between tensbn bracket and mower
lift bracket Roll belt off tensbning pulley.
Roll belt off all other pulleys..
Slide belt from under spring.
To install belt, reverse above procedure Make sure belt
is engaged in all pulleys .
MOWER
BLADE
“BELT. TENSIONING
