PRESSURE AT SUCTION SERVICE VALVE (PSI6)

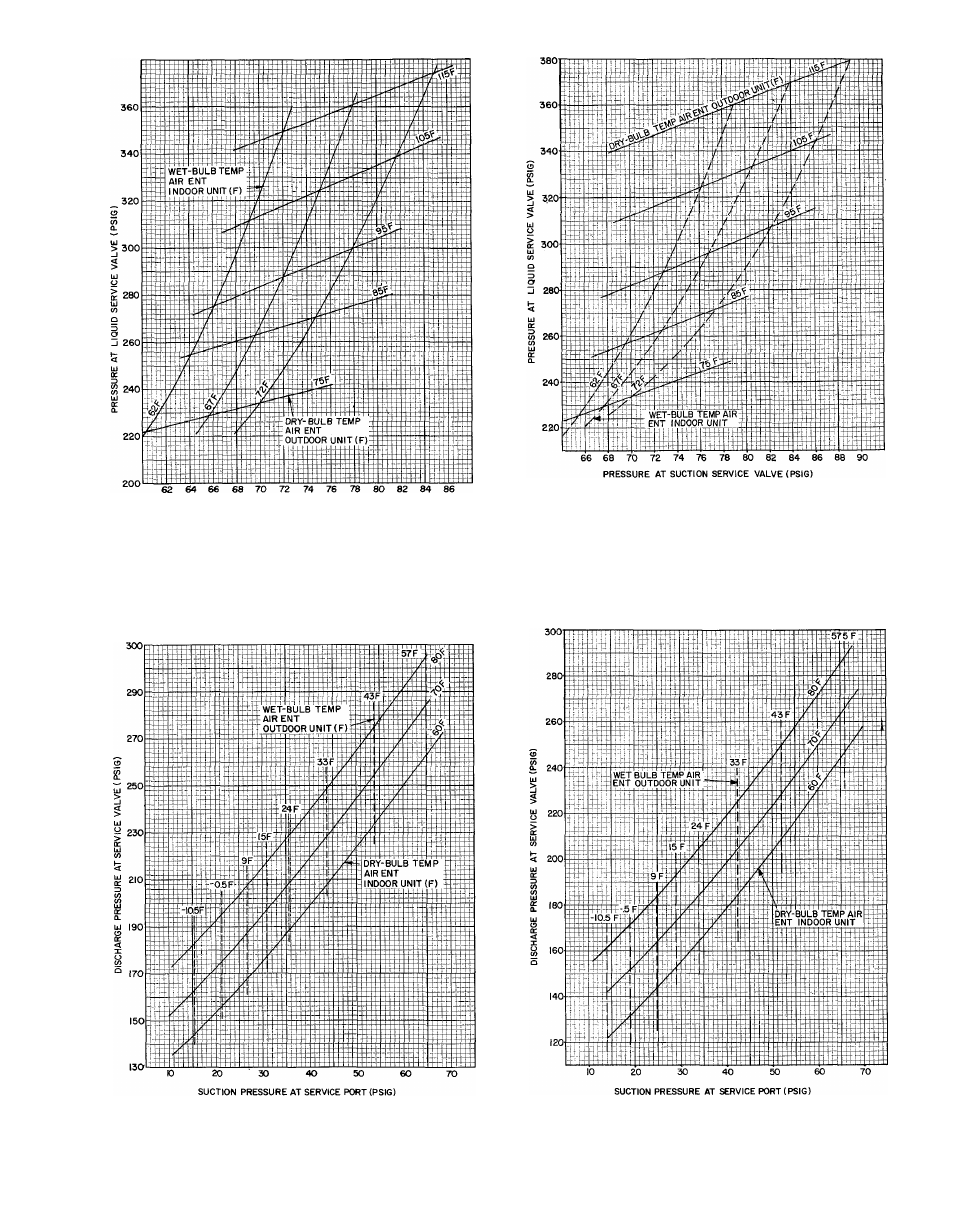

Fig. 13 — 38CQ027 with 40AQ024 Cooling Cycle

Charging Chart (R-22)

Fig. 15 — 38CCX)27 with 40AQ030 Cooling Cycle

Charging Chart (R-22)

Fig. 14 — 38CQ027 with 40AQ024 Heating Cycle

Operation Check Chart (R-22)

Fig. 16 — 38CQ027 with 40AQ030 Heating Cycle

Operation Check Chart (R-22)
