PRESSURE AT SUCTION SERVICE VALVE (PSI6)
Fig. 25 - 38CQ044 with 40FS160/28MQ042

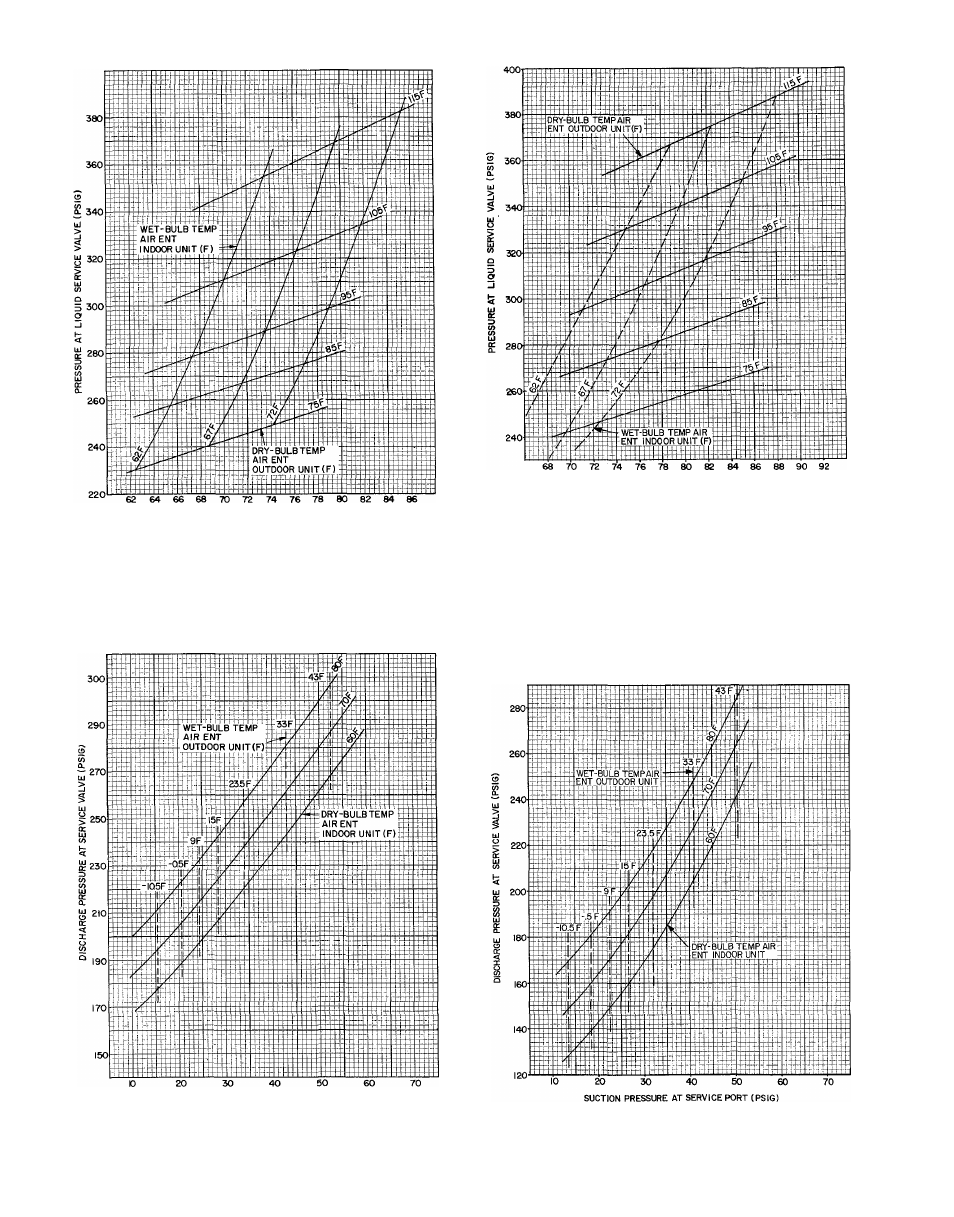

Cooling Cycle Charging Chart (R-22)
PRESSURE AT SUCTION SERVICE VALVE (PSIG)
Fig. 27 - 38CQ044 with 40FS200/28MQ048
Cooling Cycle Charging Chart (R-22)
SUCTION PRESSURE AT SERVICE PORT(PSIG)
Fig. 26 - 38CQ044 with 40FS160/28MQ042
Heating Cycle Operation Check Chart (R-22)
Fig. 28 - 38CQ044 with 40FS200/28MQ048
Heating Cycle Operation Check Chart (R-22)
