Outdoor Fan Position — Required fan position is
shown in Fig. 35. Adjust fan by loosening setscrew
and moving fan blades up or down.
Fan Motor Removal
1. Shut off power to unit.
2. Remove unit top access cover and fan grille.
3. Disconnect fan motor wires from fan capacitor
and control relay or contactor. Pull wires out of
control box.
4. Remove fan from motor shaft by loosening
setscrew and pulling upward on fan hub.
5. Remove rain shield from motor shaft by pulling
upward.
6. Loosen bolt holding fan motor to motor
mounting bracket. Remove motor thru top of
unit. To replace motor, place motor on self­
positioning motor mounting flanges and re­
tighten bolt.
Before replacing fan, ensure rain protector is in
place on motor shaft.
FAN BLADE
MOTOR
setscrew ""

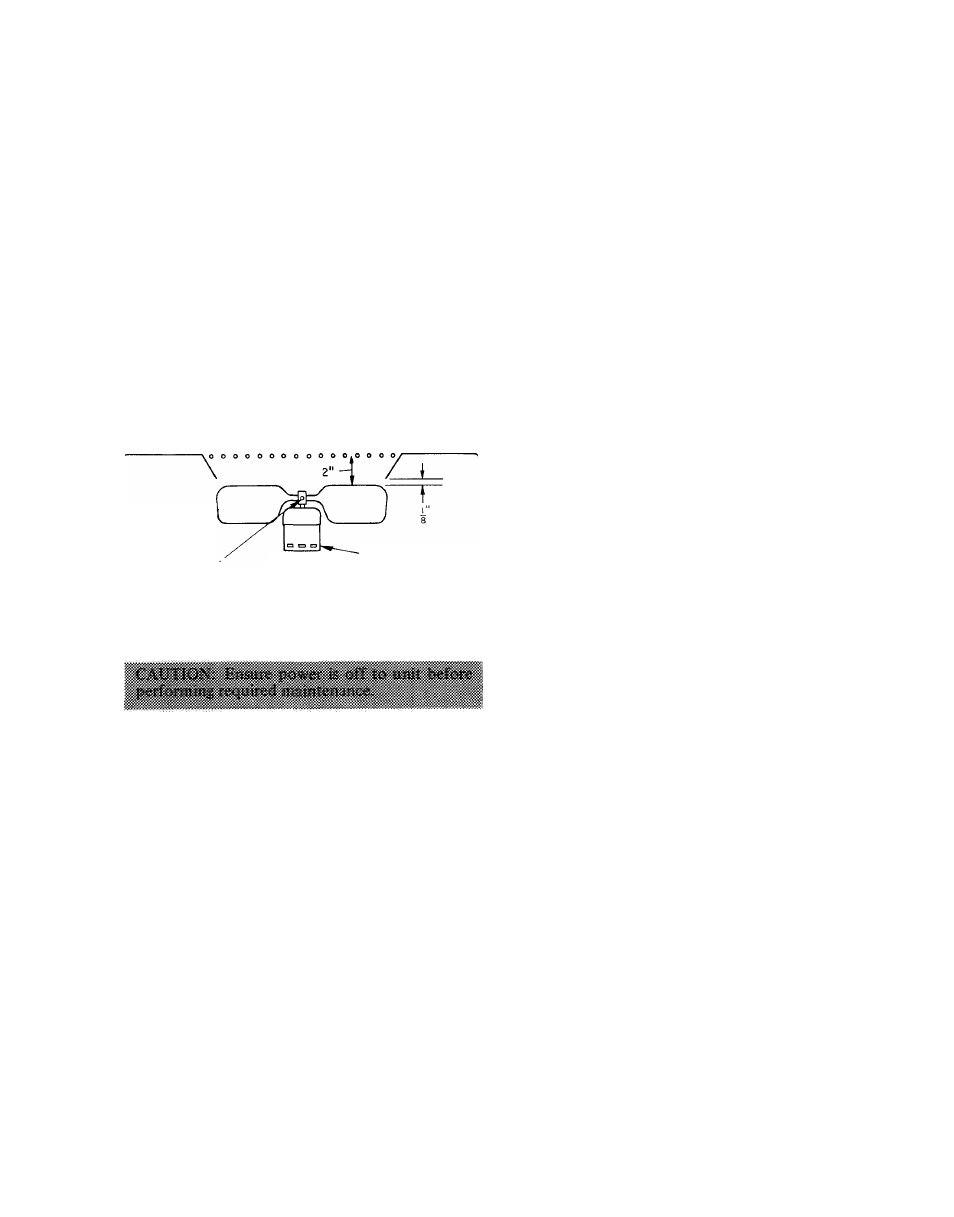

Fig. 35 — Condenser Fan Position
MAINTENANCE
Outdoor Coil Cleaning — Inspect coil periodically.
Clean coil with water at the beginning of every
cooling season or more often if required. Use
ordinary garden hose at a pressure high enough to
clean efficiently. For best results, unscrew and
remove unit top cover (grille). Insert hose nozzle
between fan blades and spray coil fins from
inside-to-outside the unit or top to bottom be­
tween rows of tubing. If unit has a double-row coil,
loosen screws to separate coils. Pull outer row of
coils away from inner row and flush dirt toward
outside of both coils. Flush dirt from base pan by
spraying water thru top of unit. Avoid splashing
mud on coil or water on fan motor. Make sure
water drainage holes under outdoor coil are not
obstructed.
Lubrication
FAN MOTOR BEARINGS - Oiling holes are
provided at each end of outdoor unit fan motor.
Remove fan motor and lubricate motor with 32
drops (16 drops per hole) of SAE-10 nondetergent
oil at intervals described below:
a.
Annually, when environment is very dirty,
ambient temperature is higher than 105 E and
average unit operating time exceeds 15 hours a
day.
b. Every 3 years when environment is reasonably
clean, ambient temperature is less than 105 F
and unit operating time averages 8 to 15 hours
a day.
c. Every 5 years when environment is clean,
ambient temperature is less than 105 F and unit
operating time averages less than 8 hours a day.
COMPRESSOR contains factory oil charge. When
oil is lost, see Table 7 for oil charge and Carrier
Standard Service Techniques Manual, Chapter 1,
page 1-21, for instructions. Use Carrier PP33-1,
Texaco Capella B or Suniso 3G oil.
