Page - 3 - of 3 - 1/28/2008 – Rev122006

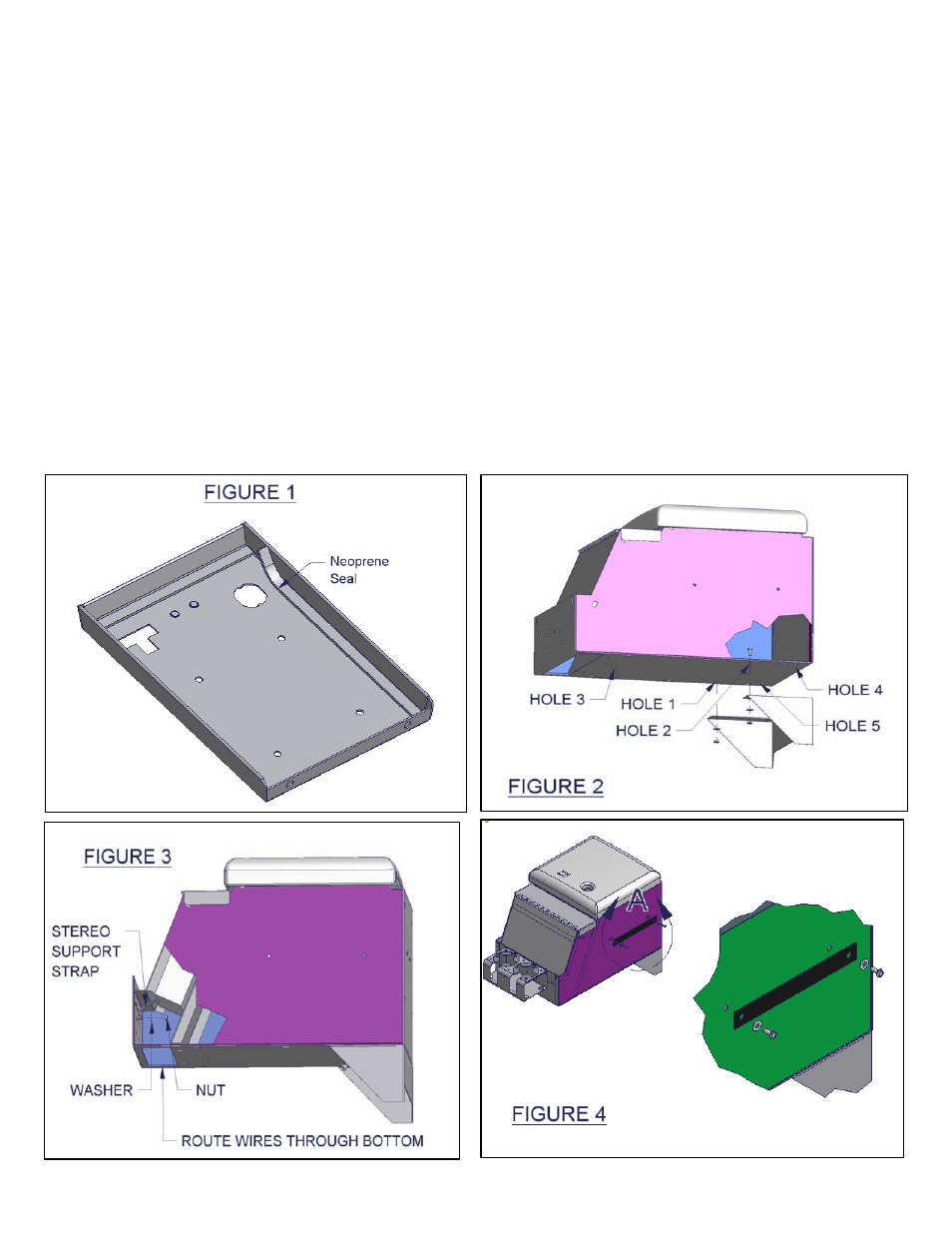

10. Fasten down the rear of the console through Holes #4 & #5 using (2) 5/16”x 5-1/2” Bolts, (2) 5/16”
Locknuts, and (4) 5/16” Washers. Fasten down the front of the console through Hole #3 using (1)
5/16” x 1-3/4” Bolts, (1) 5/16” Locknut, and (2) 5/16” Washers.
11. Using (4)10-32x1/2” Bolts, (4) 3/16” Washers, and (4) 10-32 Nuts attach the seat belt support straps by
placing the seat belt between the support strap and the console. (See Figure 4) Make sure to put the
washer on the outside of the strap.
12. If you mounted your drink holder to the front of your console, insert the (2) ¼” hole plugs into the two
holes on the back of the console.
13. Lock it up!
ATTENTION:
FREQUENT LUBRICATION IS NECESSARY ON THE LOCKING SYSTEM
The pushbutton lock contains an “O” ring seal to protect the interior from dust and water. If this
mechanism is not lubricated regularly it will become difficult to operate and it may not return to its
home position preventing the key from operating the lock. If this happens simply pull up on the
pushbutton to manually bring it back to its home position. Lubricate the pushbutton with a light
lubricant such as silicone spray. The pushbutton may have to be periodically disassembled and
cleaned.
