Tuffy Security 275 - Manual (Page 4)

Page 4 of 6 – 1/28/2011 – Rev12/13/2011

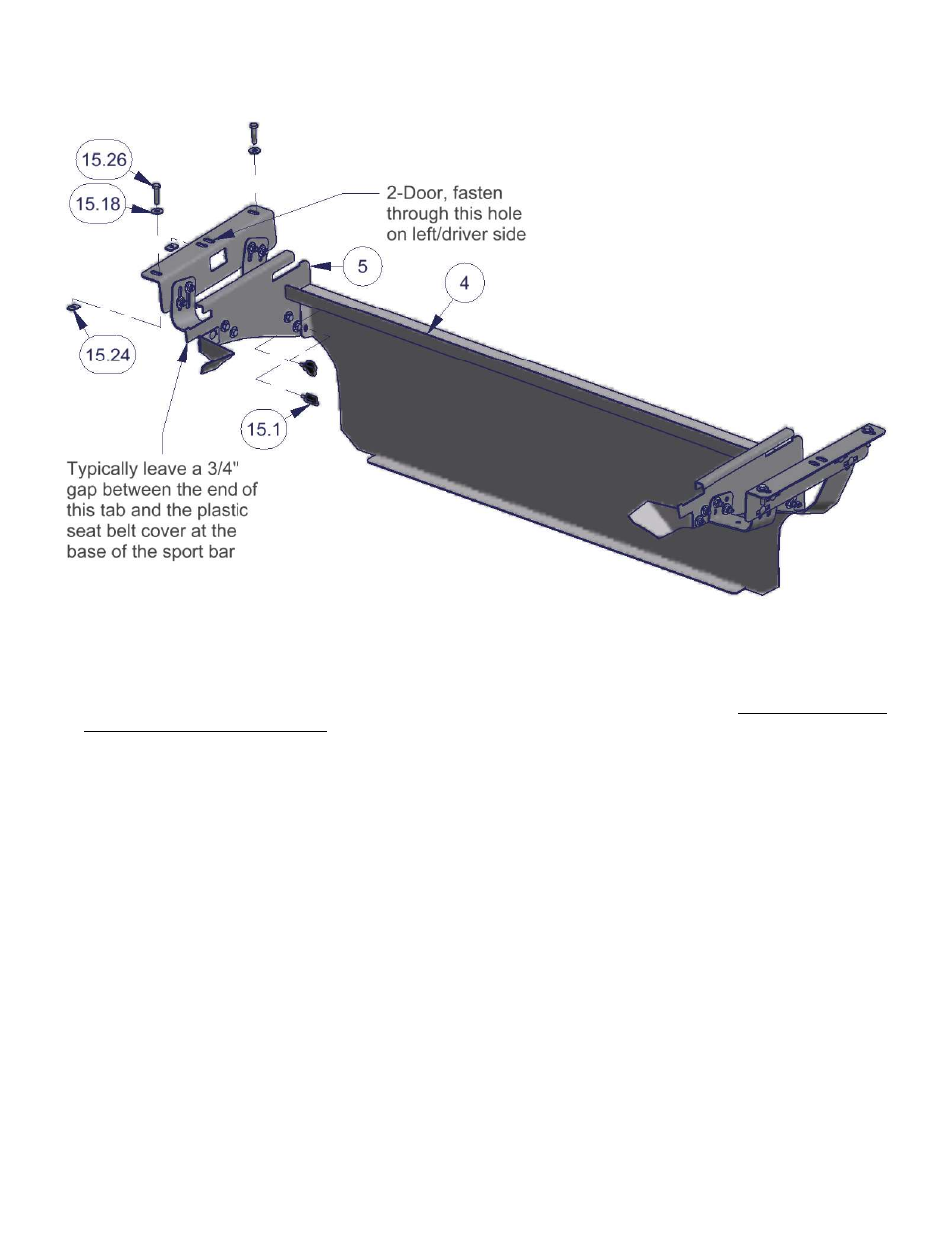

Figure 3
•
Install the #1 Lid by maneuvering it above the left and right mounting assemblies in the vehicle. Then pull the #1 lid
toward the rear of the vehicle until it stops while guiding the welded studs #13 into the slots in the #5 Left and #6 Right
Mounting Panels. Initially this will be tight but will loosen up after a break in period. Drop the lid closed then push the
#1 lid toward the front of the vehicle until it stops while guiding the welded studs #12 into the slots. (See Figure 4)
•
Inspect that the #12 welded studs are bottomed out with the #1 Lid as far forward as it can go. Close/secure the rear
window then close the rear tailgate. If the tailgate is difficult to fully close or there is a gap between the tailgate and
the #1 lid loosen the fasteners on the left and right mounting bracket assemblies and adjust them as required then
refasten them and recheck. (See Figure 1, 2 & 4)
