Figure 1, Figure 2 figure 3 – Tuffy Security 198 User Manual
Page 2
Tuffy Security Products,
www.tuffyproducts.com
, 970-564-1762 Page 2 of 2 - 12/01/2009

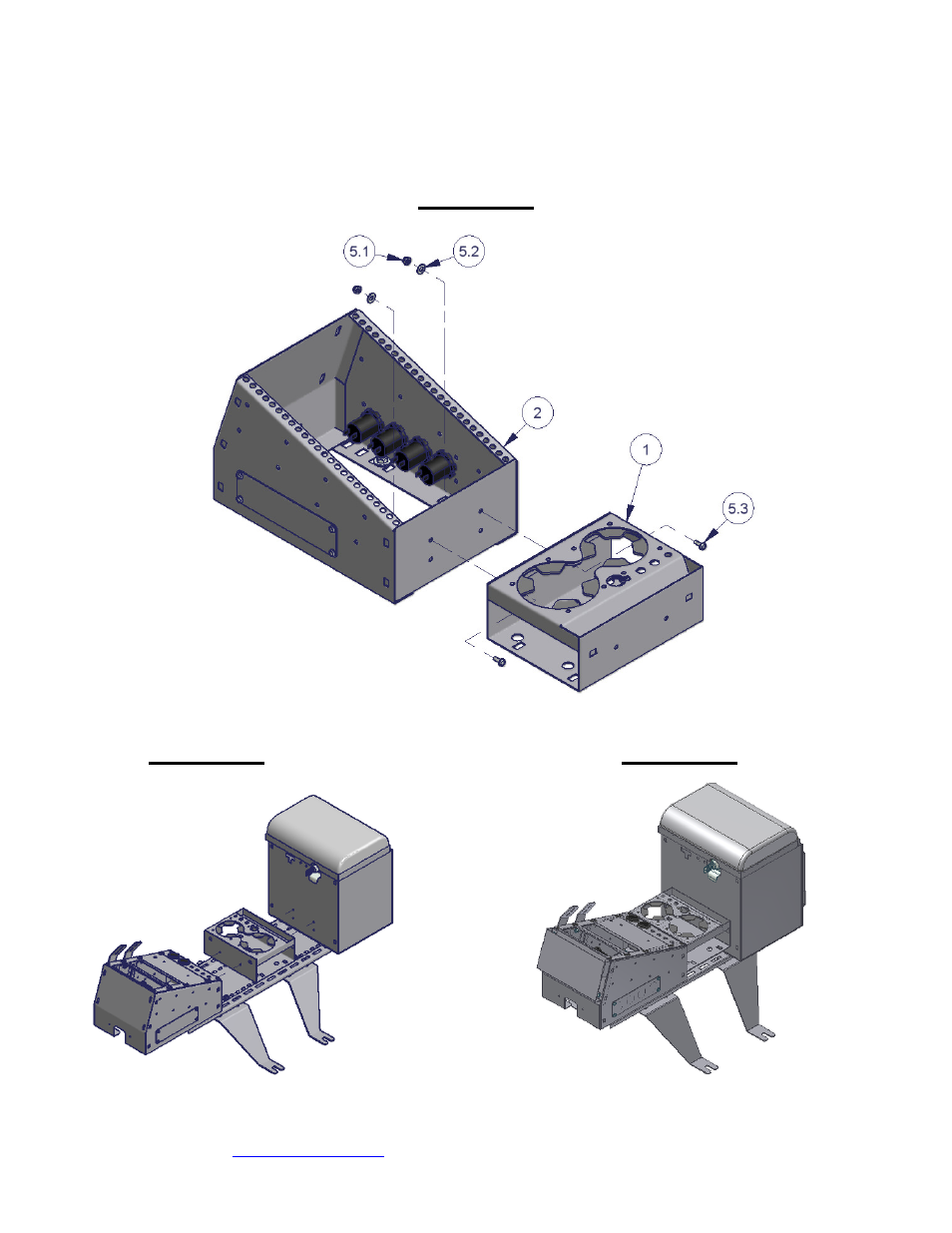

3. Install the Drink Holder (#1) to the rear of the console (#2) by inserting the hex bolts (#5.3) in through the sides of the Drink
Holder(#1), then through the mounting holes on the console (#2), then placing the washers (#5.2) and nuts (#5.1) on the hex
bolts (#5.3) as shown in Fig. 1. Note that there are two sets of holes that the drink holder can be installed in, a typical
installation will use the top holes so that the top edges of the drink holder and the console are flush. See Fig. 2 and Fig. 3.
4. Installation of the drink holder onto the 194 Console Lock Box is the same as to the 191 Communications Console. See Fig.
2 and Fig. 3. for typical installation.
FIGURE 1
FIGURE 2
FIGURE 3
Call (970) 564-1762 for Technical Support
