SmartPad II
Software Version 4.02
Chapter 3 - Real-Time Guidance 3-73
Lightbar Index
Lightbar Index
The SmartPad II Lightbar is capable of displaying a considerable amount of information to the user. This information
can be represented as text in the display window, illuminated lights on the stop light or cross track LEDs or a combi-
nation of text and lights. Information displayed on the lightbar depends on both user defined settings and system
warnings not controlled by the user. Table 3-17, “SmartPad II Lightbar Index,” on page 3-73 describes each possible
lightbar state and possible information that could be displayed.

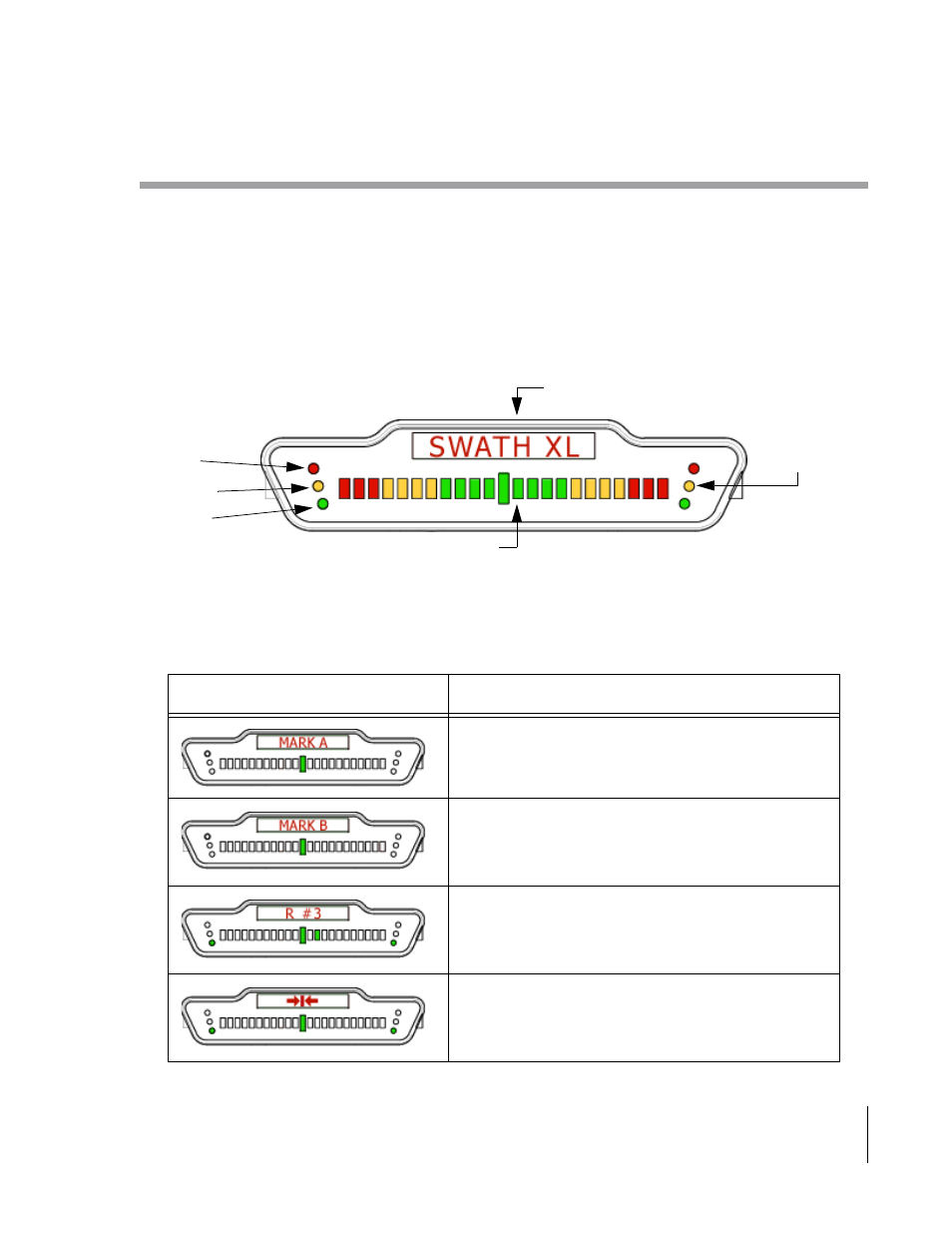

Figure 3-102: The SmartPad II Lightbar
Lightbar State Description
Mark A: Displayed when establishing the guidance point A
of the initial guideline.
Mark B: Displayed when establishing the guidance point B
of the initial guideline.
Swath #: A user selected lightbar message. When not on the
initial guideline the first character is either L or R for Left
and Right of the initial guideline. The number identifies
how many lines left or right of the initial guideline.
X-Track Error: A user defined lightbar message. This cross
track error message is displayed when the vehicle is on the
guideline and there is no error.
Table 3-17: SmartPad II Lightbar Index
Eight Character Text Display Window
Cross Track Error LEDs
Warning Stop
Lights
Red
Yellow
Green
