SmartPad II
Software Version 4.02
Chapter 3 - Real-Time Guidance 3-63
Applied Area Detection
Detecting Neighboring Swath
Applied area detection will notify the user if the vehicle crosses into a previously applied neighboring swath. Figure
3-88 shows an Applied Area Overlap example. The vehicle can overlap up to 25% of the Swath Width with out being
notified. Once the edge of the vehicle swath overlaps 25% or more into a neighboring swath the lightbar will display
the APPLIED message and the Red stop light will illuminate and the alarm will sound only if product application
continues. No Yellow warning lights will occur in this situation.

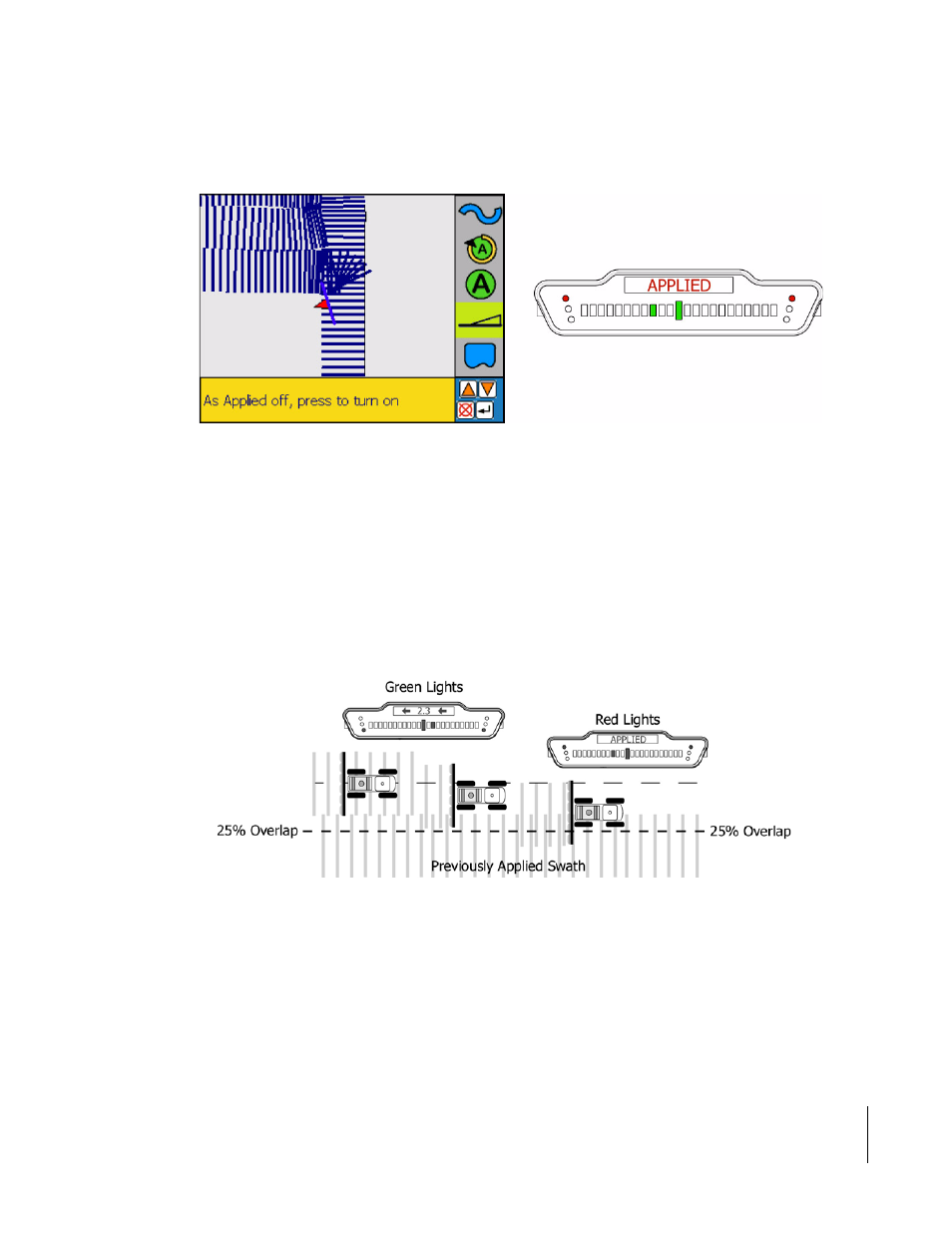

Figure 3-87: Inside a Previously Applied Area
Figure 3-88: Applied Area Overlap in Neighboring Swath
