3-54 Chapter 3 - Real-Time Guidance
The Curved Guidance Mode
SmartPad II
Software Version 4.02

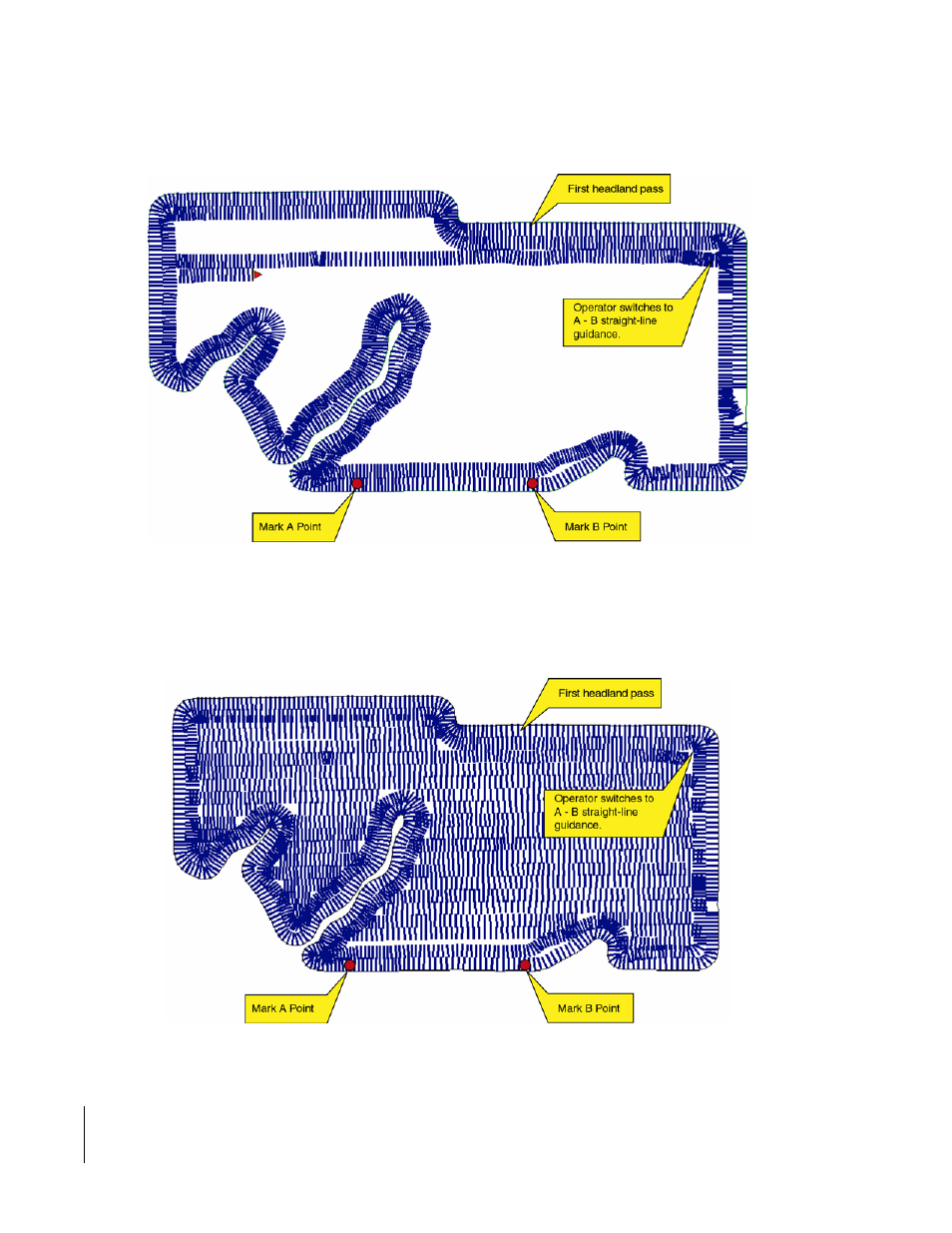

Figure 3-73 shows the completed field, notice there are several areas of the field where the operator turned spray off
to avoid double application on previously applied areas.
Figure 3-72: Product Application using Straight-line Parallel Guidance.
Figure 3-73: Completed Field Application Using Headland Pattern.
