SmartPad II
Software Version 4.02
Chapter 3 - Real-Time Guidance 3-51
The Curved Guidance Mode
Figure 3-68 shows the operator being guided along side the initial headland circuit. The lightbar automatically sup-
plies guidance information (right side of figure). For more details on how to interpret curved guidance information on
the lightbar see “Lightbar Curved Guidance Graphics” on page 3-61.
Figure 3-69 and Figure 3-86 shows the operator continuing to drive around the second headland circuit.

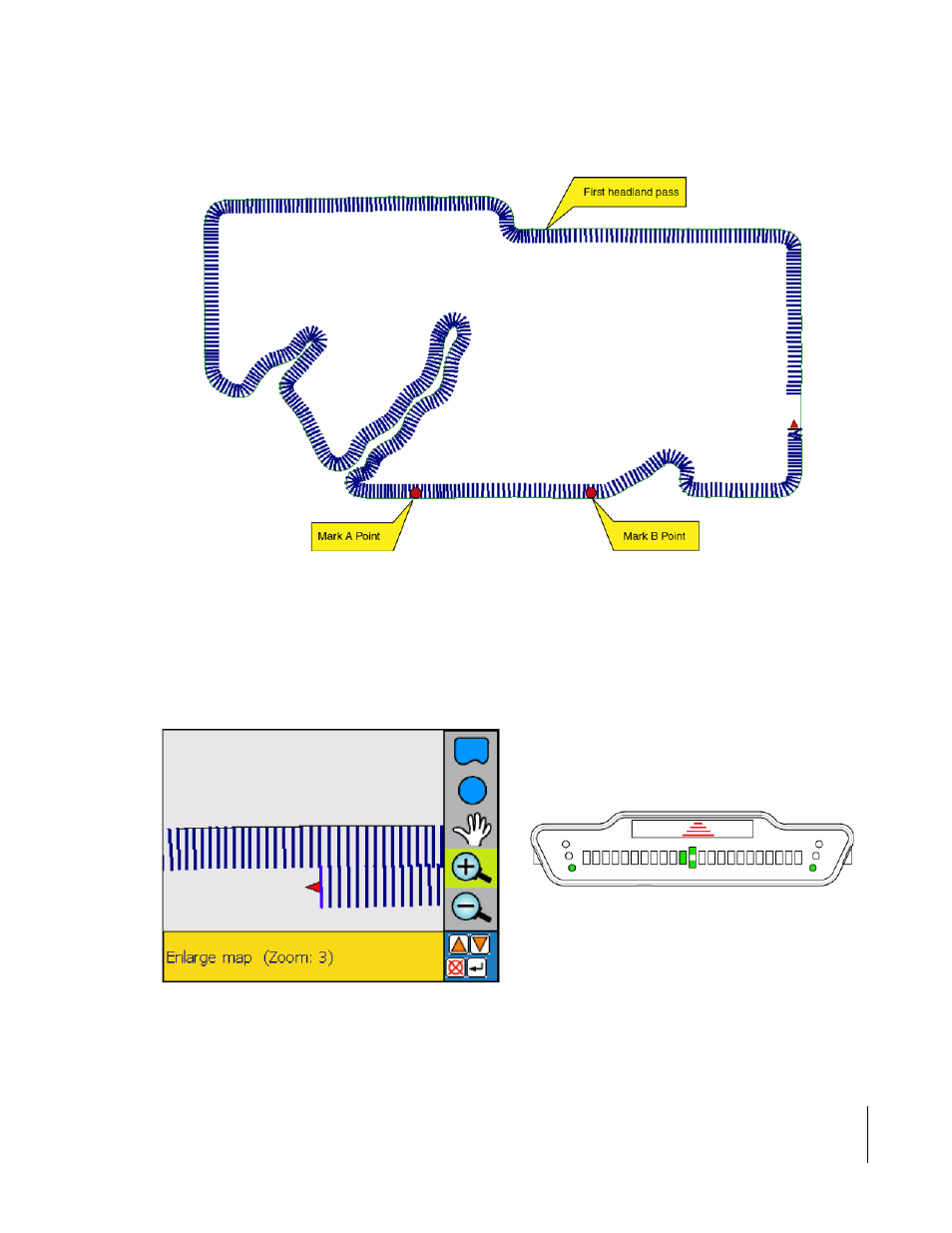

Figure 3-67: Vehicle Completing First Headland Circuit
Figure 3-68: Starting Second Headland Circuit with Curved Guidance
