CenterLine
Software Version 1.05

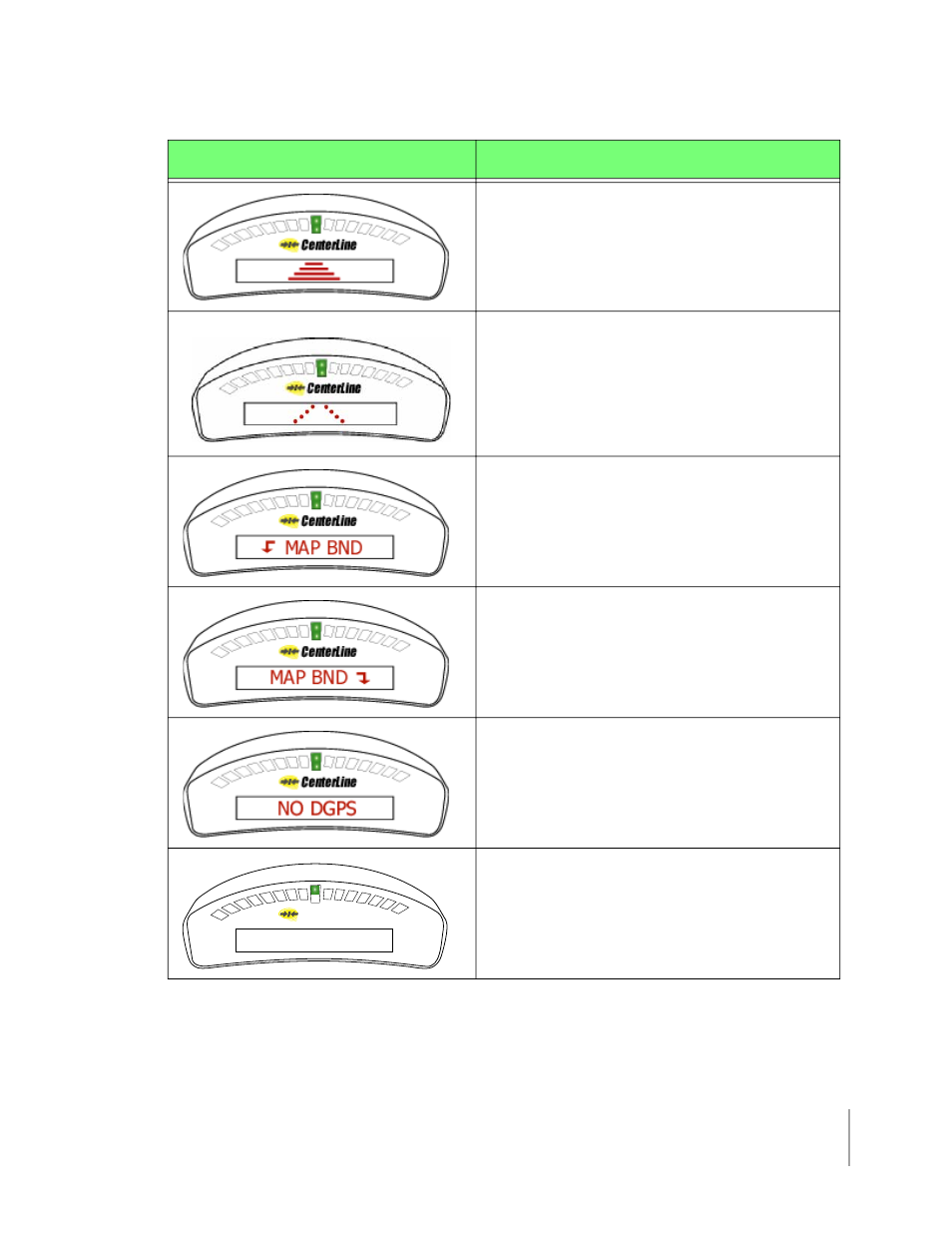

Lightbar State Description
Curved guidance information graphics. The four hori-
zontal bars in the text display represent a perspective
view of the swath ahead of the vehicle. The bars skew
left or right to represent the curved path ahead.
Curved guidance information graphics. The path in the
text display represents a perspective view of the swath
ahead of the vehicle. The —hollow path“ indicates that
the vehicle is making the first headland pass and no
guidance information is available yet. The path skews
left or right to represent the curved path ahead.
Mapping Boundary: This message is displayed when
the user is mapping the field boundary. The arrow sym-
bol on the left indicates the field boundary is on the left
side of the vehicle.
Mapping Boundary: This message is displayed when
the user is mapping the field boundary. The arrow sym-
bol on the right indicates the field boundary is on the
right side of the vehicle.
System Warning: The message is displayed when there
is loss of differential GPS corrections. Guidance calcula-
tions are stopped until differential corrections resume.
CenterLine
NO GPS
System Warning: This message is displayed when there
is a complete loss of GPS signal to the GPS receiver or
Smartpad. Guidance calculations are stopped until
DGPS signal resumes.
Table 14: CenterLine Lightbar Index
CenterLine
Lightbar Index
45
