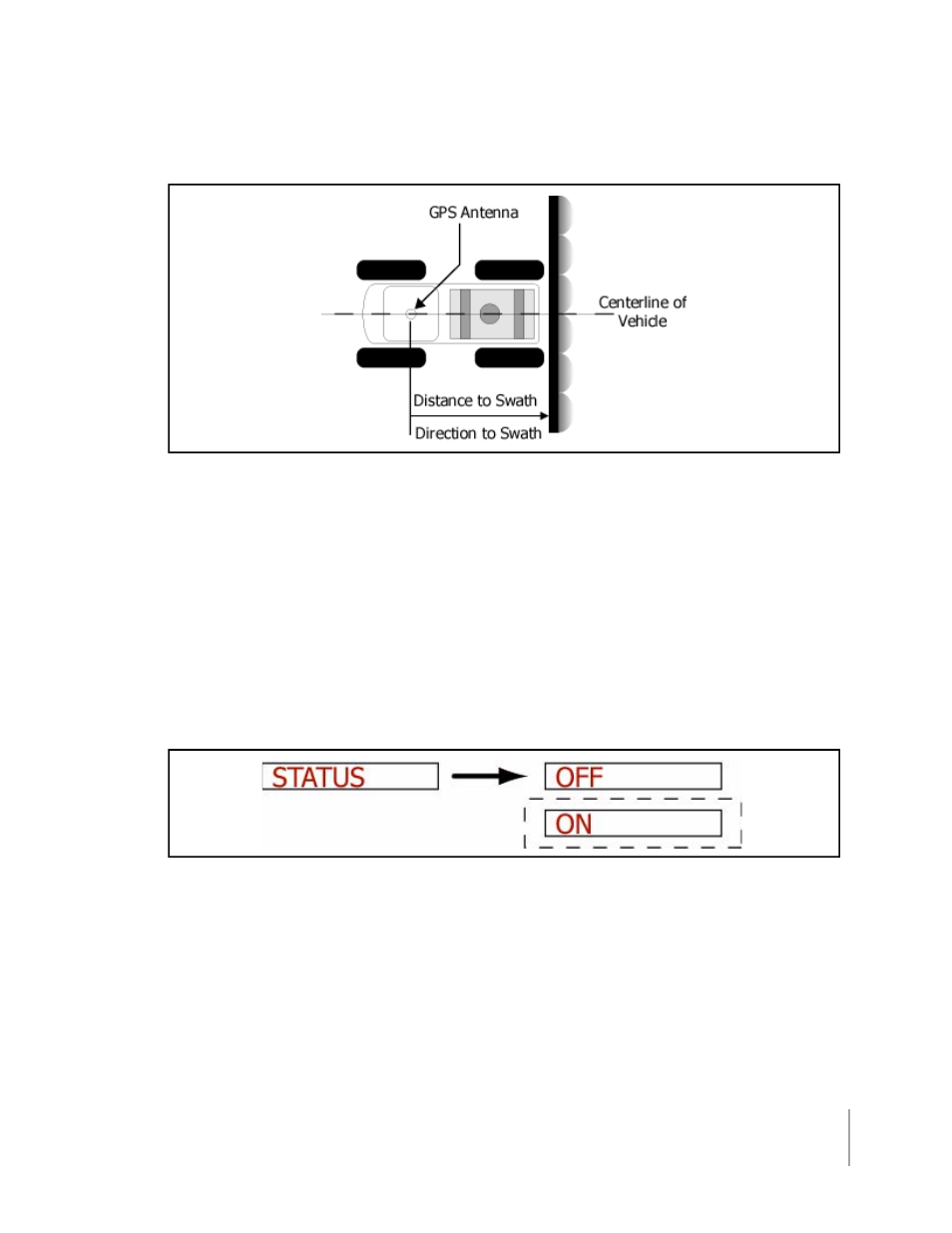

Figure 16: Direction and Distance to Swath from DGPS Receiver
Status
The setting is used to auto detect implement status. When the status detect is properly
implemented, the CenterLine detects whether product delivery is on or off, based on the vehicles
product on/off switch. See —CenterLine Product Kits“ on page 9 - 12 for location of status connect
(boom sense) wiring.
To set the Status setting, go to Guidance setup, scroll with Up or Down until is dis-
played in the text window, and press Enter. Using Up or Down, scroll between the and
settings until the desired setting is displayed in the text window. Press Enter to save the
setting and return to the Guidance setup menu.
Figure 17: Selecting the Status Setting
