Tools, Receiver – TeeJet CenterLine v1.05 User Manual
Page 33
CenterLine
Software Version 1.05
Tools
The Tools menu is intended to provide some basic system diagnostics. Tools contains two diag-
nostic tools: Receiver and Lightbar (See Table 12).
To access Tools from the Setup menu, scroll until the text window displays
Enter.
the Tools menu.

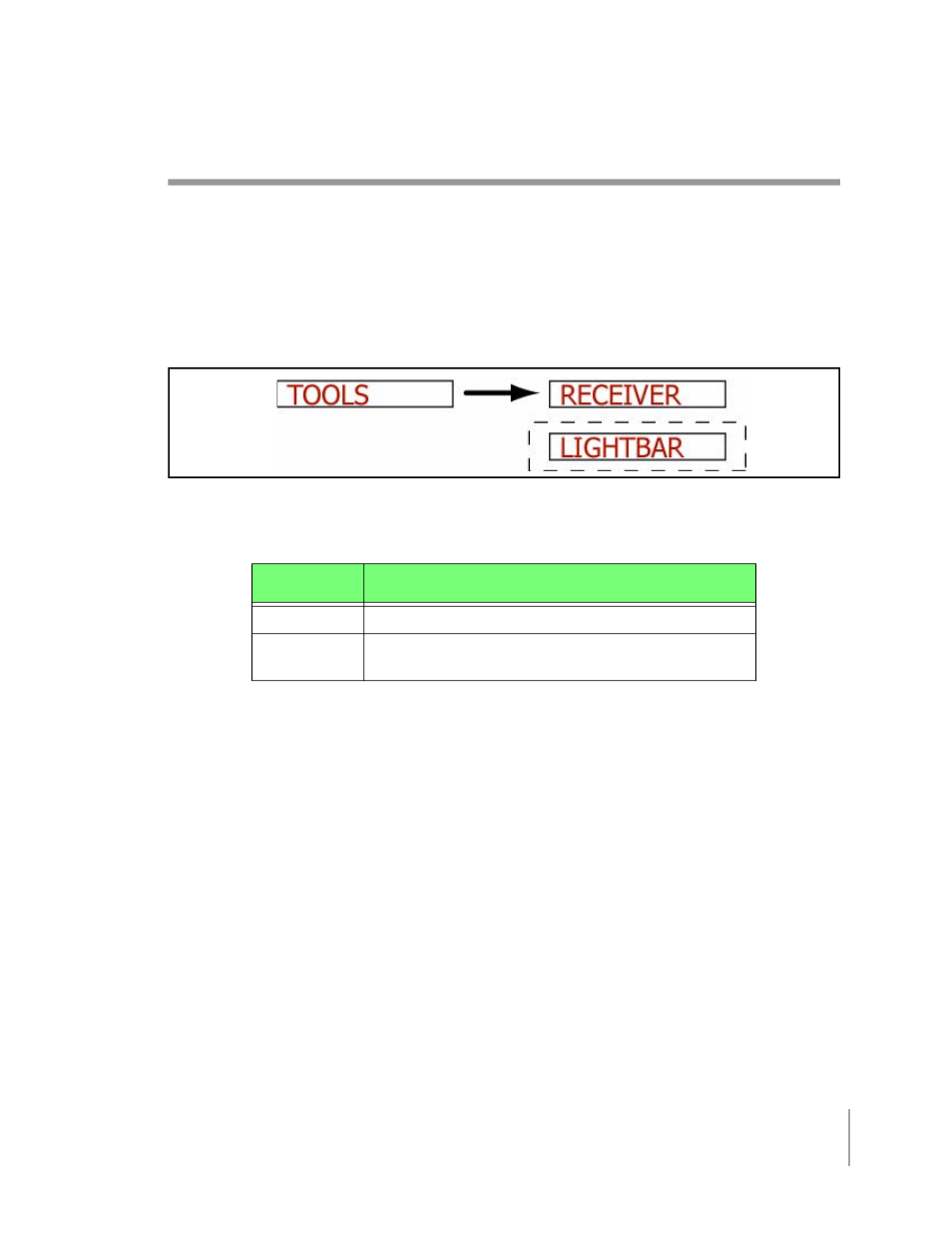

Figure 29: The Tools Menu Flow
Menu Item
Description
Receiver
Checks the status of a connected GPS receiver.
Lightbar
Tests the functionality of the CenterLine Lightbar LEDs and
text window.
Table 12: Tools Menu Items
Receiver
The Receiver diagnostic test queries the attached GPS receiver and returns its current configura-
tion and status. This information is displayed in the text window on the lightbar.
To start the Receiver check, go to the Tools menu, scroll until
window, and press Enter. The lightbar displays the diagnostic messages shown in Table 13.
CenterLine
Tools
27
