Applied Area Detection
CenterLine allows the detection of a previously applied area. To use applied area detection, the
Lightbar Setup - Alarm menu field must be set up prior to starting guidance. See —Alarm“ on page
18 of this User Guide for more details on how to set up this menu field.
Detecting A Previously Applied Area
Figure 43 shows how previously applied area detection works. As the vehicle enters a previously
applied area, the lightbar displays the message APPLIED, even if the application is turned off.
When the vehicle exits the previously applied area, the APPLIED message stops displaying.

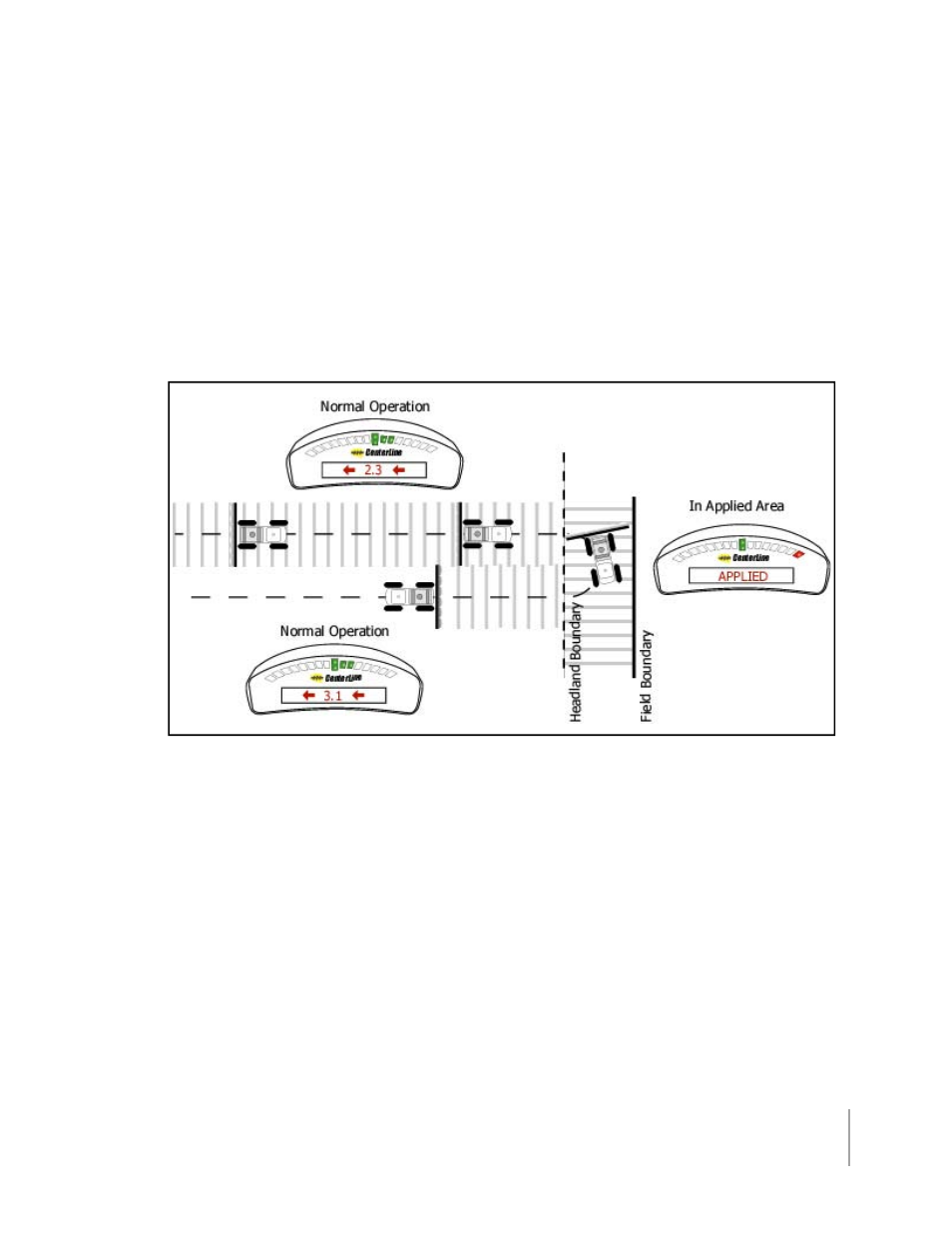

Figure 43: Applied Area Detection in Headlands
Detecting Neighboring Swath
Applied area detection notifies the user when the vehicle crosses into a previously applied neigh-
boring swath. Figure 44 shows an Applied Area Overlap example. The vehicle can overlap up to
25% of the Swath Width without being notified. Once the edge of the vehicle swath overlaps 25%
or more into a neighboring swath, the lightbar displays .
