Port Alert Settings
The Port Alert Settings dialog box provides a way for you to be informed about events
that occur on the devices connected to the SV1108IPEXT/POW’s ports.
You can specify up to 10 types of events (e.g., Power On) in the Alert String fields. When
a specified alert occurs during the serial console session, the SV1108IPEXT/POW writes
the event information to the log file.
OOBC

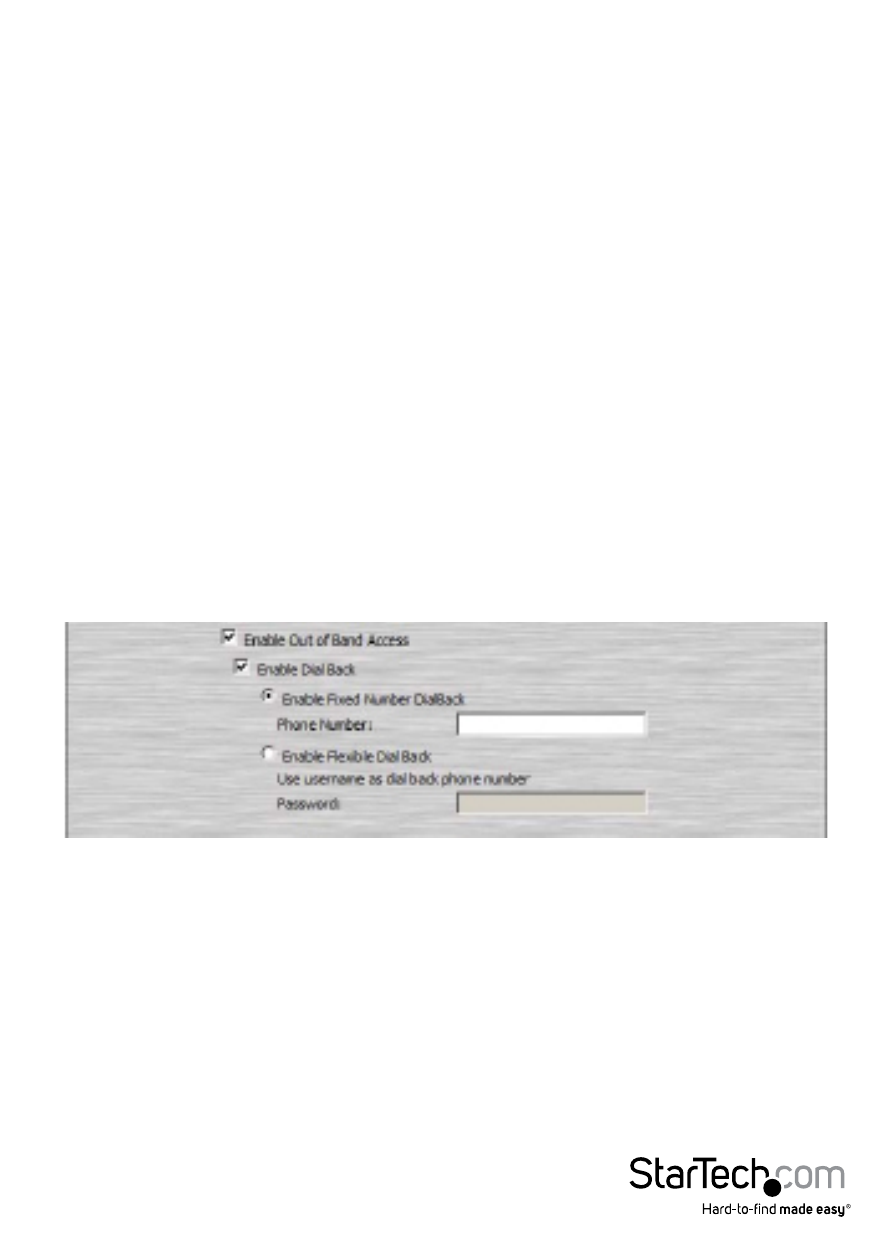

In case the SV1108IPEXT/POW cannot be accessed with the usual LAN-based methods,
it can be accessed with an external modem via the switch’s RS-232 port. To enable
support for PPP (modem) operation, click to put a checkmark in the Enable Out of
Band Access checkbox.
NOTE:
1. Enabling out of band access automatically enables Dial In operation. See PPP
Modem Operation, page 158, for set up and operation details.
2. For the modem session, the SV1108IPEXT/POW has an IP address of 192.168.0.60.;
the user side has an IP address of 192.168.192.101.
When you enable out of band access, the Enable Dial Back, and Enable Dial Out
functions become available, as described in the sections that follow.
Enable Dial Back
