Instruction Manual
124
The Menu Bar
The Menu bar consists of four items:
Configure
Events
Options
Help
These are discussed in the sections that follow.
NOTE: If the Menu Bar appears to be disabled, click in the SV1108IPEXT/POW List
window to enable it.
Configure
The Configure menu contains three items: Add, Edit, and Delete. They are used to add
new SV1108IPEXT/POW units to the server list, edit the information for units already on
the list, or delete units from the list. To add a SV1108IPEXT/POW to the list, click Add.
To edit or delete a listed SV1108IPEXT/POW, first select the one you want in the
SV1108IPEXT/POW List window, then open this menu and click Edit or Delete.

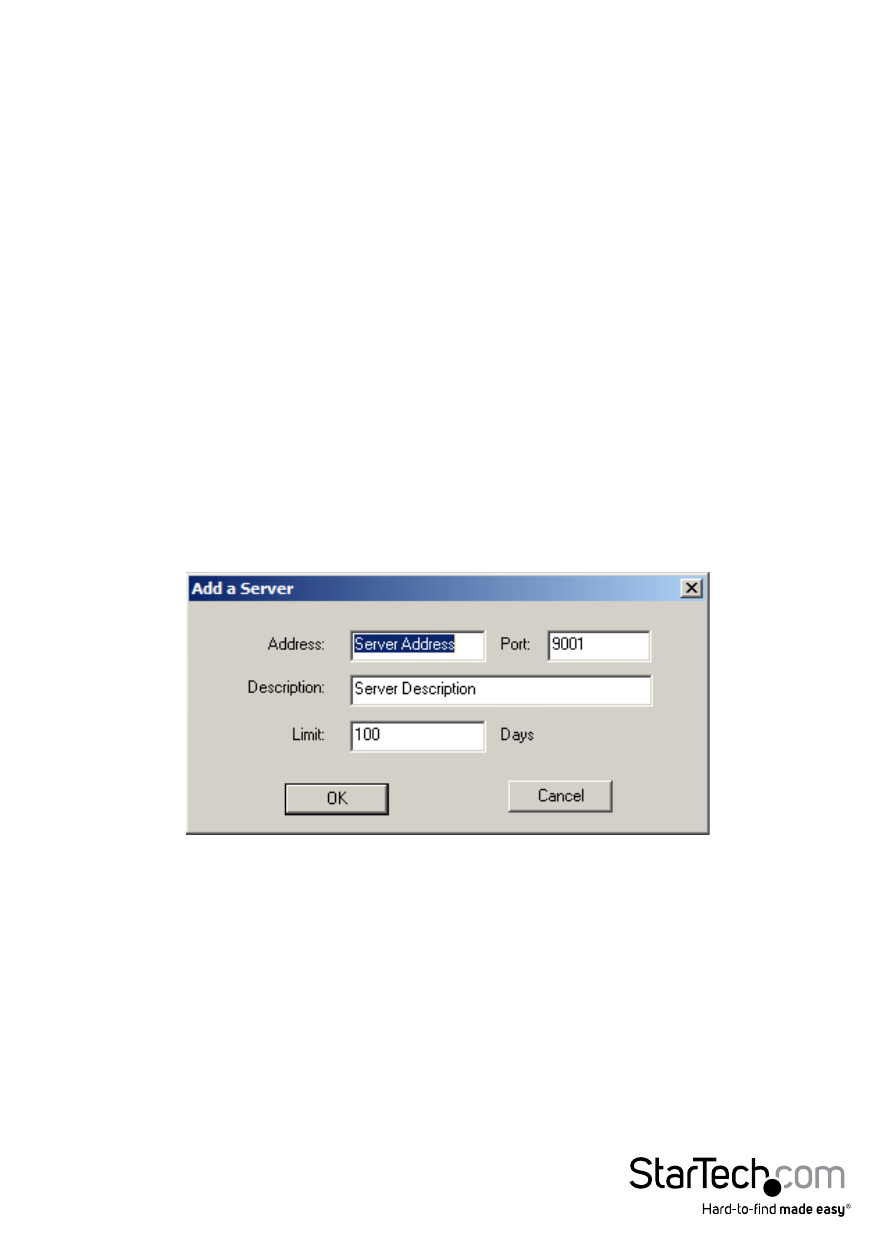

When you choose Add or Edit, a dialog box, similar to the one below appears:
