Rear view – StarTech.com SV1108IPPWEU User Manual
Page 13

Instruction Manual
6

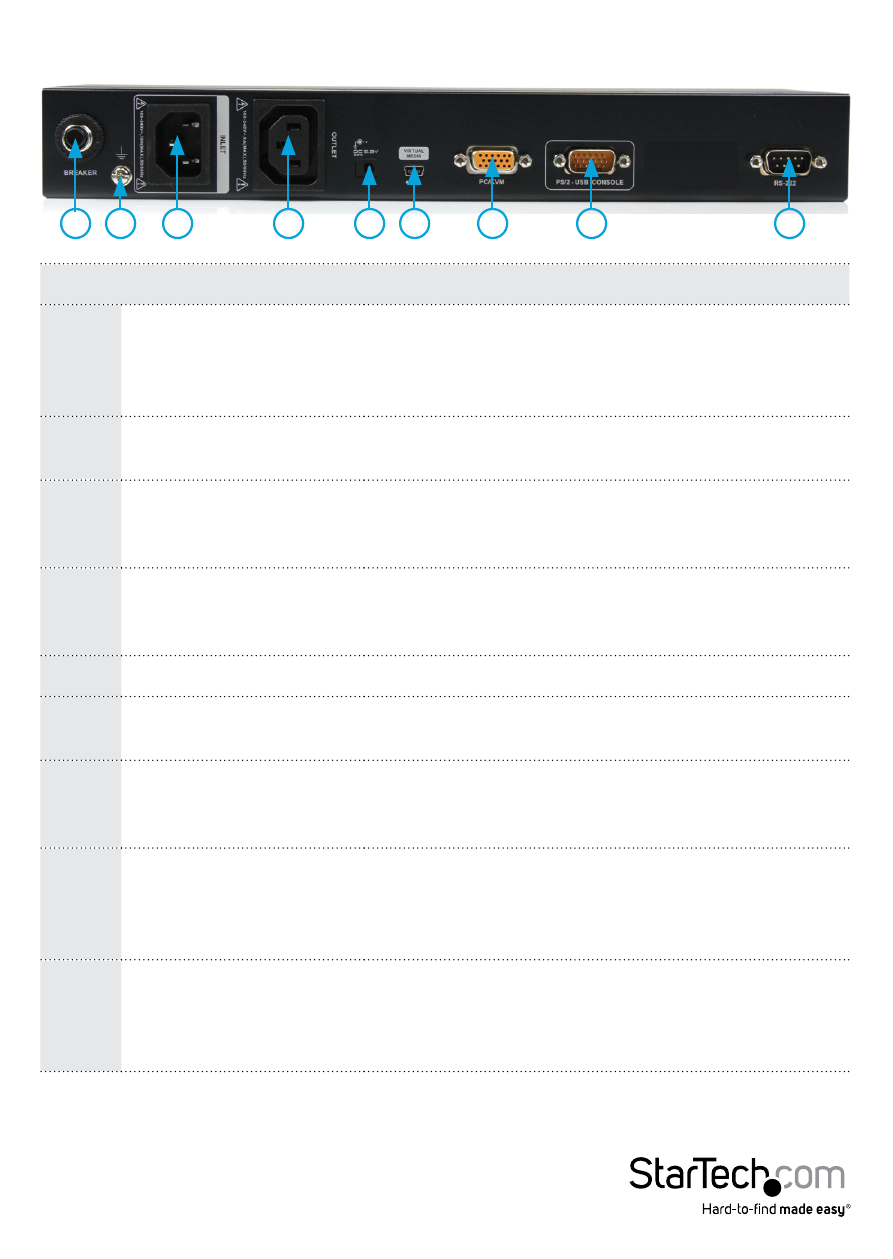

Rear View
3
4
5
2
1
6
7
8
9
No.
Component
Description
1
Circuit Breaker
As a safety measure, if there is an overcurrent
situation, the circuit breaker will trip. Press this
button to recover normal operation. (SV1108IPPOW
Only)
2
Grounding Terminal
The wire used to ground the unit connects here.
(SV1108IPPOW Only)
3
Power Inlet
The power cord that connects the SV1108IPPOW
to an AC power source for power management
functionality plugs in here. (SV1108IPPOW Only)
4
Power Outlet
The power cord provided with the SV1108IPPOW
package that connects to the server for power
management plugs in here. (SV1108IPPOW Only)
5
Power Jack
The power adapter cable plugs in here.
6
Virtual Media Port
The cable that connects the SV1108IPEXT/POW to a
USB port on your server or KVM switch plugs in here.
7
PC/KVM Port
The KVM cable provided with this package that links
the SV1108IPEXT/POW to your server / KVM switch
plugs in here.
8
Console Port
The cable for the local console (keyboard, monitor,
and mouse) plugs in here. The console can use either
a PS/2 or USB keyboard and mouse. Each connector
is color coded and marked with an appropriate icon.
9
RS-232 Port
This serial port is provided for:
1. Serial console management
or
2. Out-of-band modem operation
