Model 5895XL Intelligent Power Module Installation and Operation Manual
3-10 151142
2. Configure the circuit through programming (see Section 7.4 of the Installation Manual
151209).

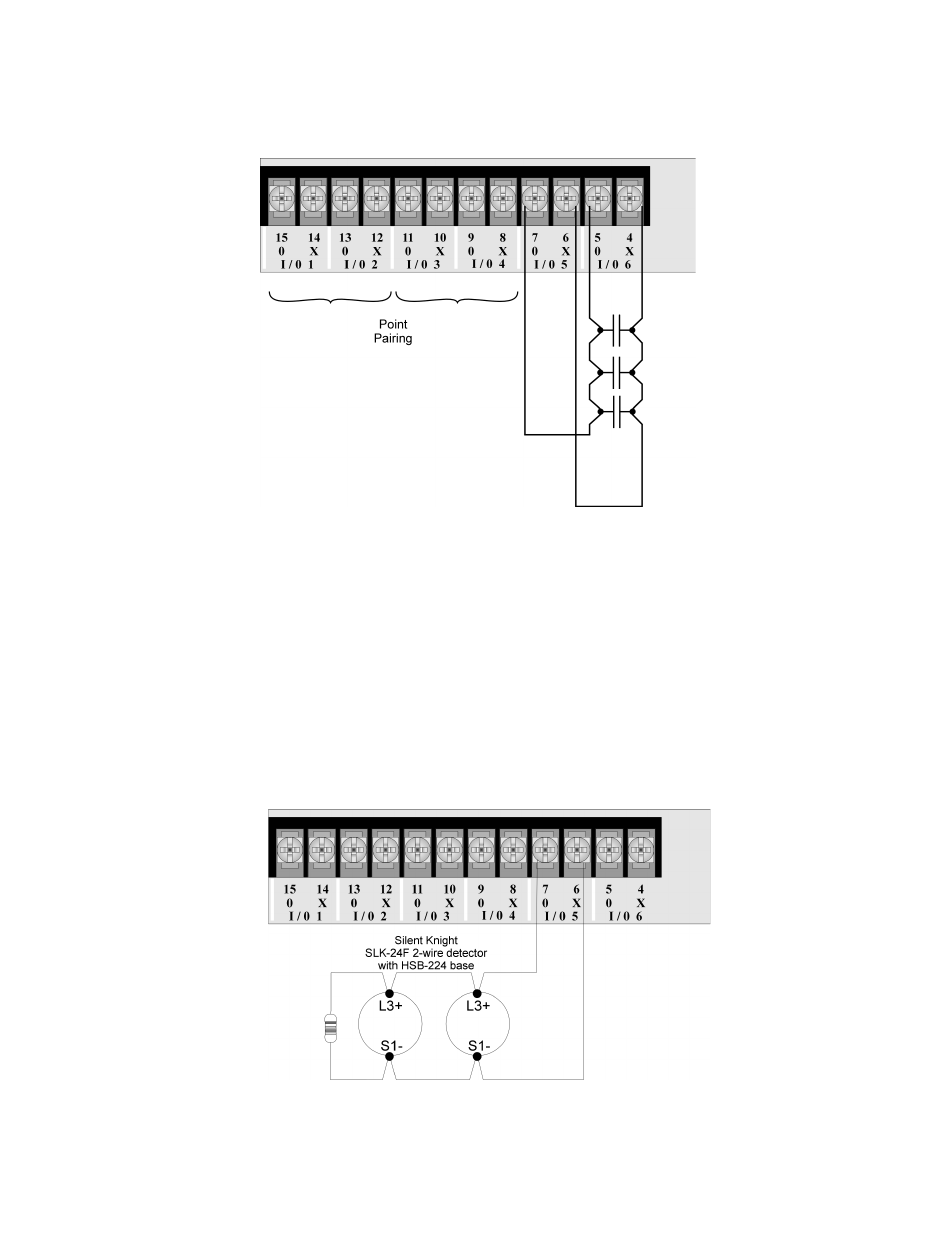

Figure 3-11 Class A initiating Switches
Note: In programming any point that uses multiple I/O circuits are always referred to as the lowest I/O circuit
number used. For example, Figure 3-11 uses both I/O circuit 5 and 6, so in programming it would be
referred to as point 5.
3.5.4 Installing 2-Wire Smoke Detectors
Any compatible U.L. listed two-wire smoke detector can be used with the 5895XL panel (see
Appendix A for list of compatible smoke detectors). Figure 3-12 and Figure 3-13 illustrate
how to connect a UL listed 2-wire detector to the control panel.
Class B Installation
To install a Class B two-wire smoke detector, wire as shown in Figure 3-12.
Figure 3-12 Two-Wire Class B Smoke Detector
Note:
I/O circuit 5 and 6
used as an example.
Any I/O point pairing
could be used.
Note:
I/O circuit 5
used as an example.
Any I/O circuit
could be used.
UL Listed EOL
Model 7628
4.7 k

