4 5895xl board and terminal strip description, 5895xl board and terminal strip description -2 – SilentKnight 5895XL 6A Intelligent Remote Power Supply User Manual
Page 12
Model 5895XL Intelligent Power Module Installation and Operation Manual
2-2
151142
2.4
5895XL Board and Terminal Strip Description

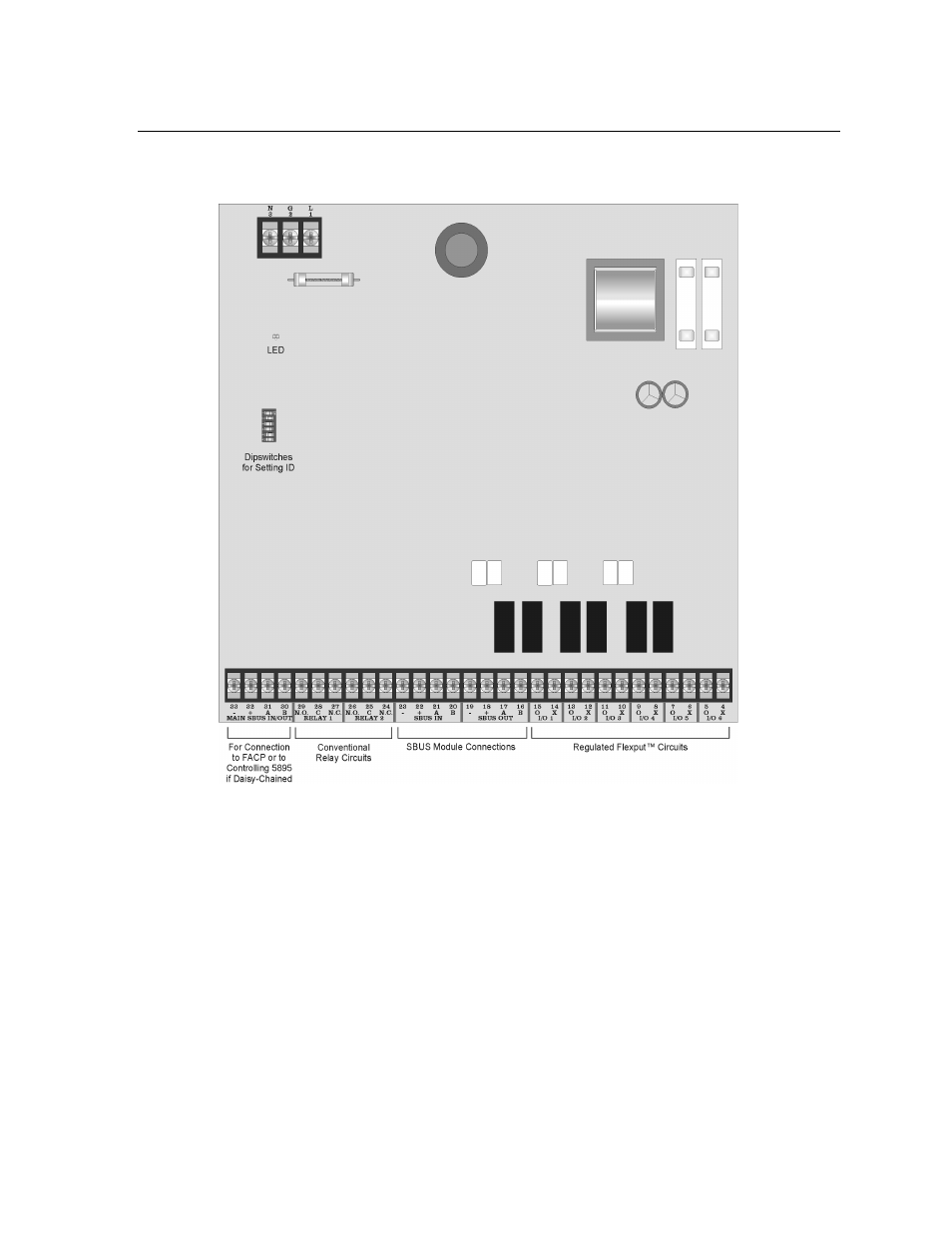

Figure 2-1 shows the 5895XL circuit board including location of terminals, the DIP switch for
setting module ID, and the LED.
Figure 2-1 The 5895XL Board Layout
