Hardware Installation

151142

3-9

3.5.3

Conventional Initiation Circuits

This section of the manual explains how to install conventional initiating devices for Class A
(Style D) or Class B (Style B) configurations.

3.5.3.1 Class B Inputs

You can connect conventional Class B switches, such as waterflow switches and pull stations,
directly to the I/O circuits of the 5895XL panel.

To install a Class B switch:

1. Wire the Class B switch as shown in Figure 3-10.

2. Configure the circuit through programming (see Section 7.4 of the Installation Manual

P/N 151209).

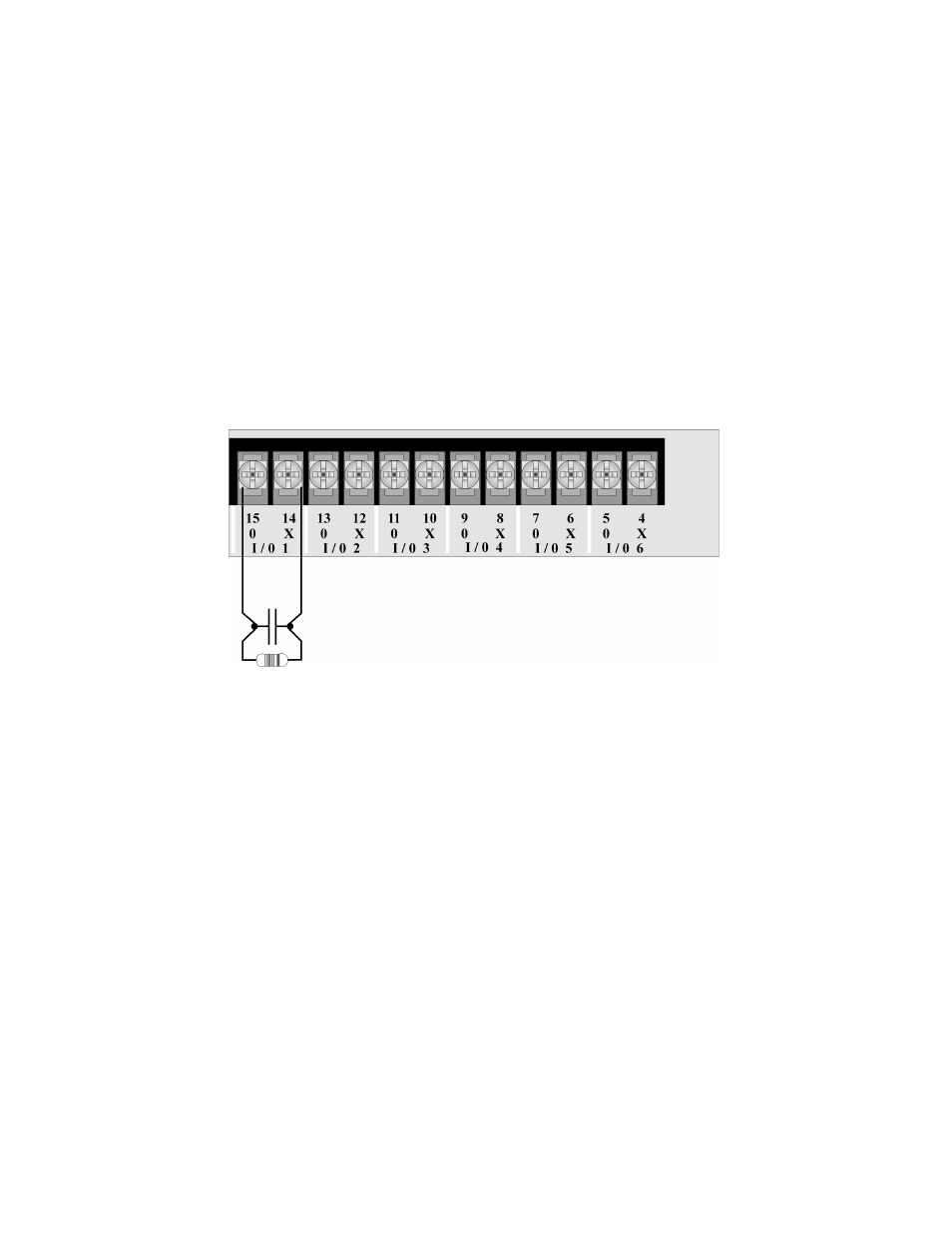

Figure 3-10 Class B Input Switches

3.5.3.2 Class A Inputs

You can connect conventional Class A switches, such as waterflow switches and pull stations,
directly to the I/O circuits of the 5895XL panel.

To install a Class A switch:

1. Wire the Class A switch as shown in Figure 3-11.

UL Listed EOL

Model 7628

4.7 k


