151142 3-1
Section 3
Hardware Installation
5895XL installation involves the following steps:
• AC power (Section 3.1) and backup battery connection (Section 3.2).
• Physical connection to the IntelliKnight 5820XL FACP or to the controlling 5895XL (see
Section 3.3).
• Setting an ID for the 5895XL (Section 3.3.1).
• Physical connection of SBUS modules that will be powered by this 5895XL (Section 3.4).
• Physical connection of any outputs (conventional relays, notification appliances, auxiliary
power modules, and so on) that will be powered by this 5895XL. See Section 3.5.1 for
notification appliance wiring information. Refer to the IntelliKnight 5820XL Installation
Manual (P/N 151209), for software configuration information and other information about
installing outputs.
3.1 AC Power
At installation, connect the AC terminals to 120 VAC source as shown in Figure 3-1. It may
be necessary for a professional electrician to make this connection.
The AC terminals are rated as 120 VAC, 50 or 60 Hz, 2.7 A.

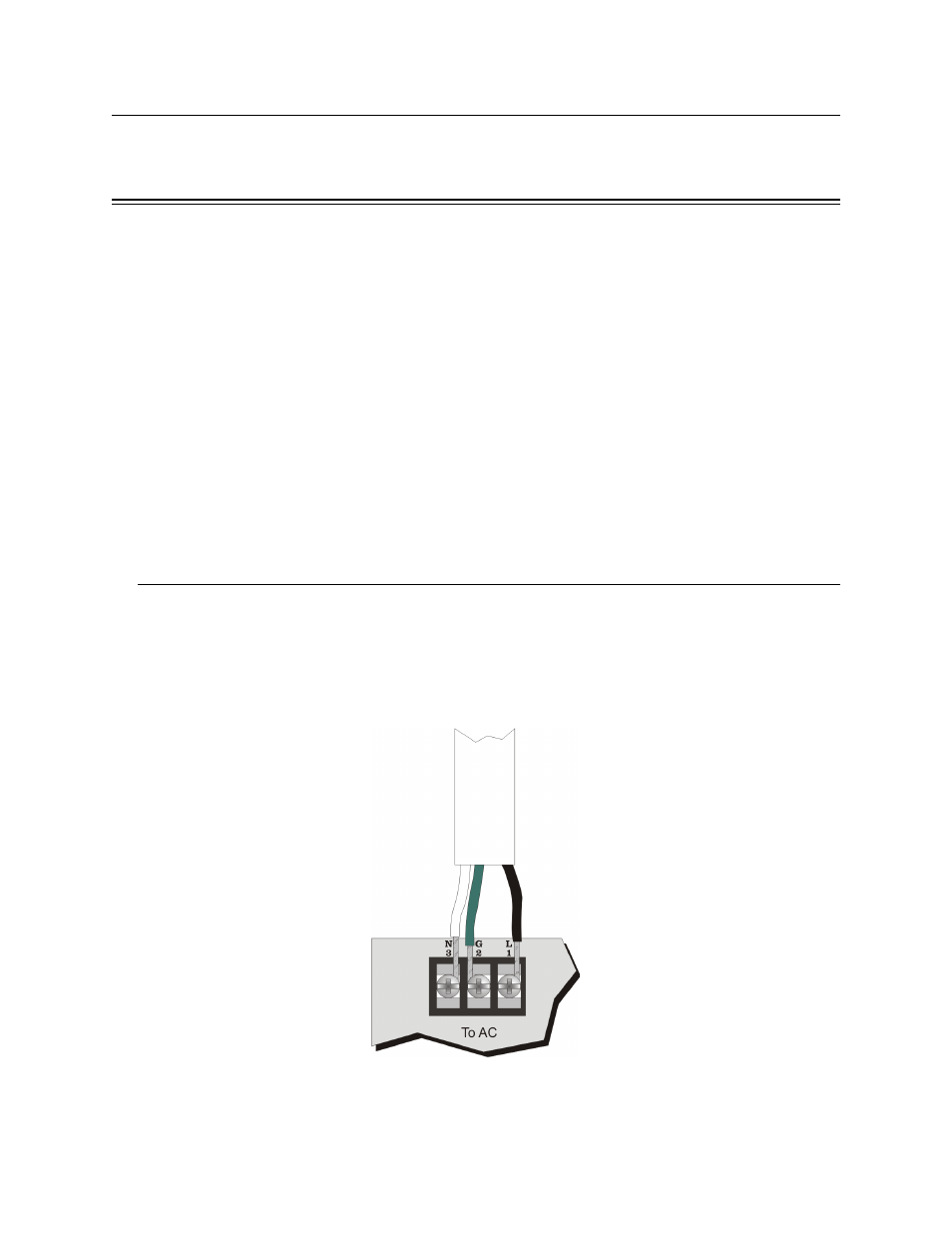

Figure 3-1 AC Power Connection
To 120 VAC
Power Source
Gre
e
n
Wh
ite
Bla
c
k
