Model 5895XL Intelligent Power Module Installation and Operation Manual
3-6 151142
3.4 Connecting SBUS Modules to the 5895XL
1. Connect SBUS modules to the 5895XL as shown in Figure 3-6 or Figure 3-7.
2. All SBUS modules must have an ID. Use the DIP switches on the module board to assign
an ID number (1-31) to the module. This number identifies the module to the 5895XL and
must be unique.
3. Software configuration steps vary for each SBUS module. For more information, refer to
the Installation Manual (P/N 151209) in the section that discusses the type of module you
are installing.

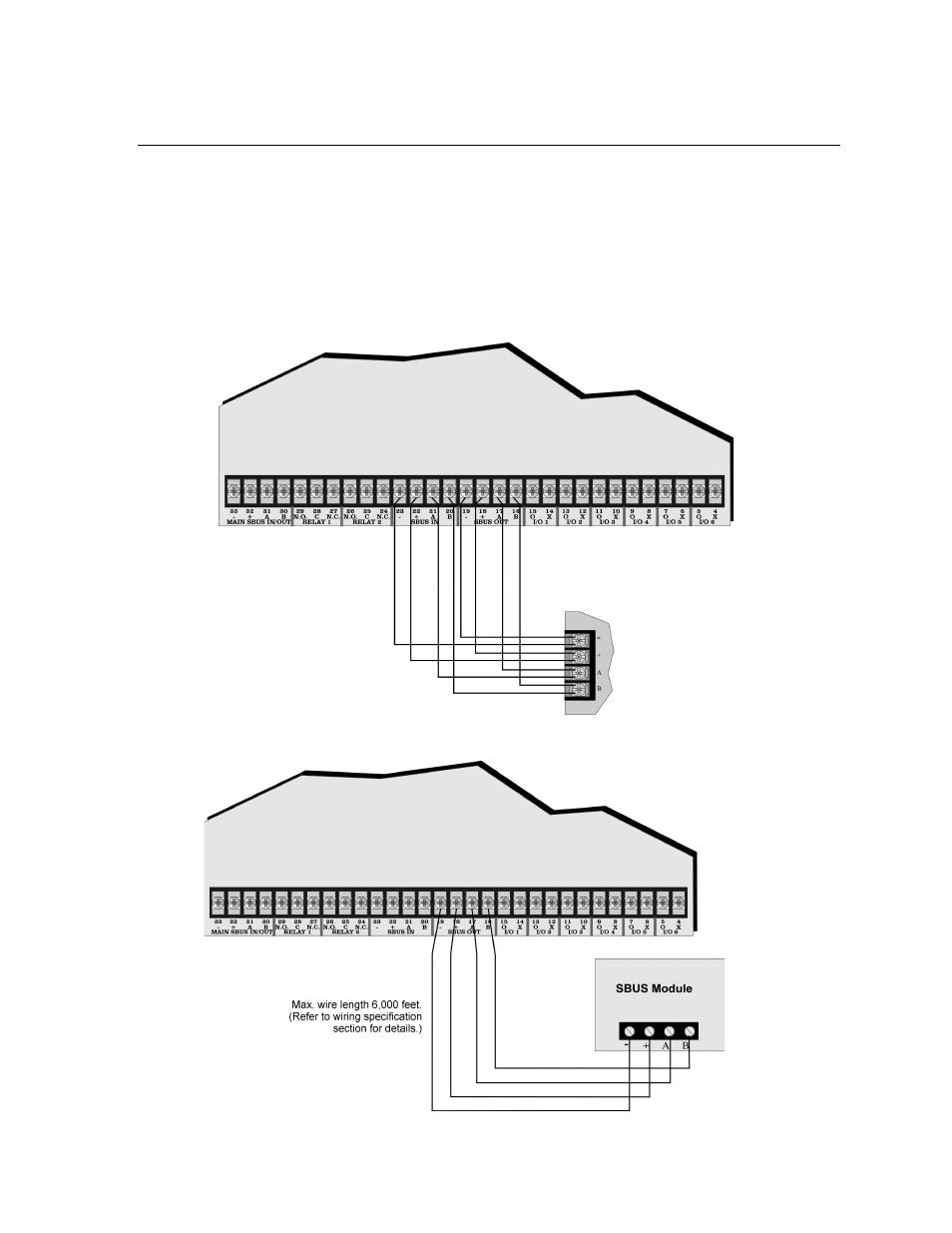

Figure 3-6 SBUS Class A Connection to 5895XL
Figure 3-7 SBUS Class B Wiring to 5895XL
