Model 5895XL Intelligent Power Module Installation and Operation Manual
3-2 151142
3.2 Battery Connection
The 5895XL battery charge capacity is 7.0 to 33.0 AH. Use 12V batteries of the same AH
rating. Determine the correct AH rating as per your current load calculation (see Section Table
2-4).
Note: When your backup batteries requirements use backup batteries that are to large to fit into the 5895XL cab-
inet. The AB-33 cabinet holds batteries up to the 33 AH size. (Refer to Installation Manual P/N 151209 for
AB-33 installation instructions.
* 33AH max battery size for FM (Factory Mutual) installations
Wire batteries in series to produce a 24-volt equivalent. Do not parallel batteries to increase
the AH rating.

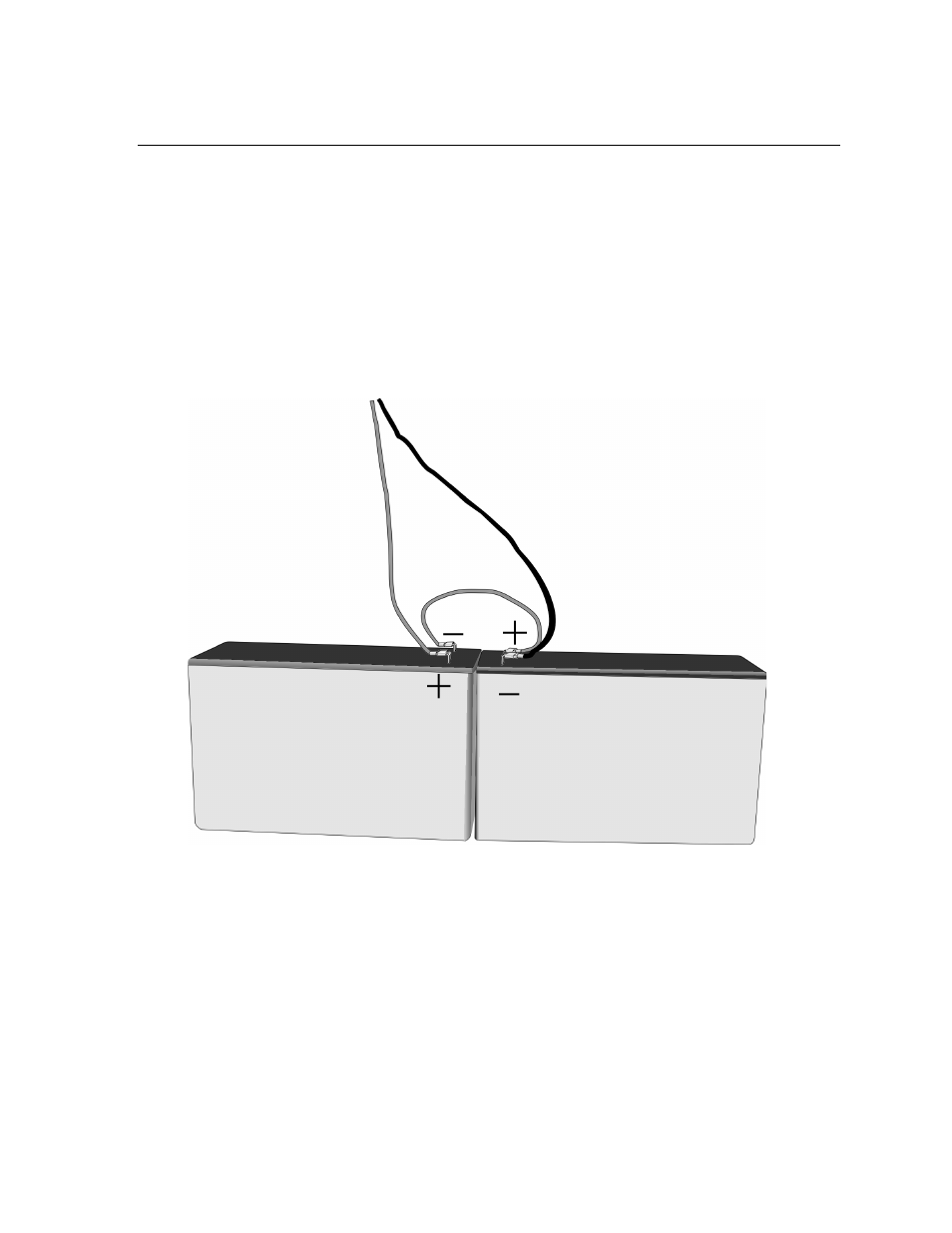

Figure 3-2 Battery Connection
Red
To Panel
Black
UL Listed 12V Battery UL Listed 12V Battery
Battery Jumper
(P/N 140694)
Shipped With 5895XL
Replace batteries every 5 years.
Gell Cell Gell Cell
