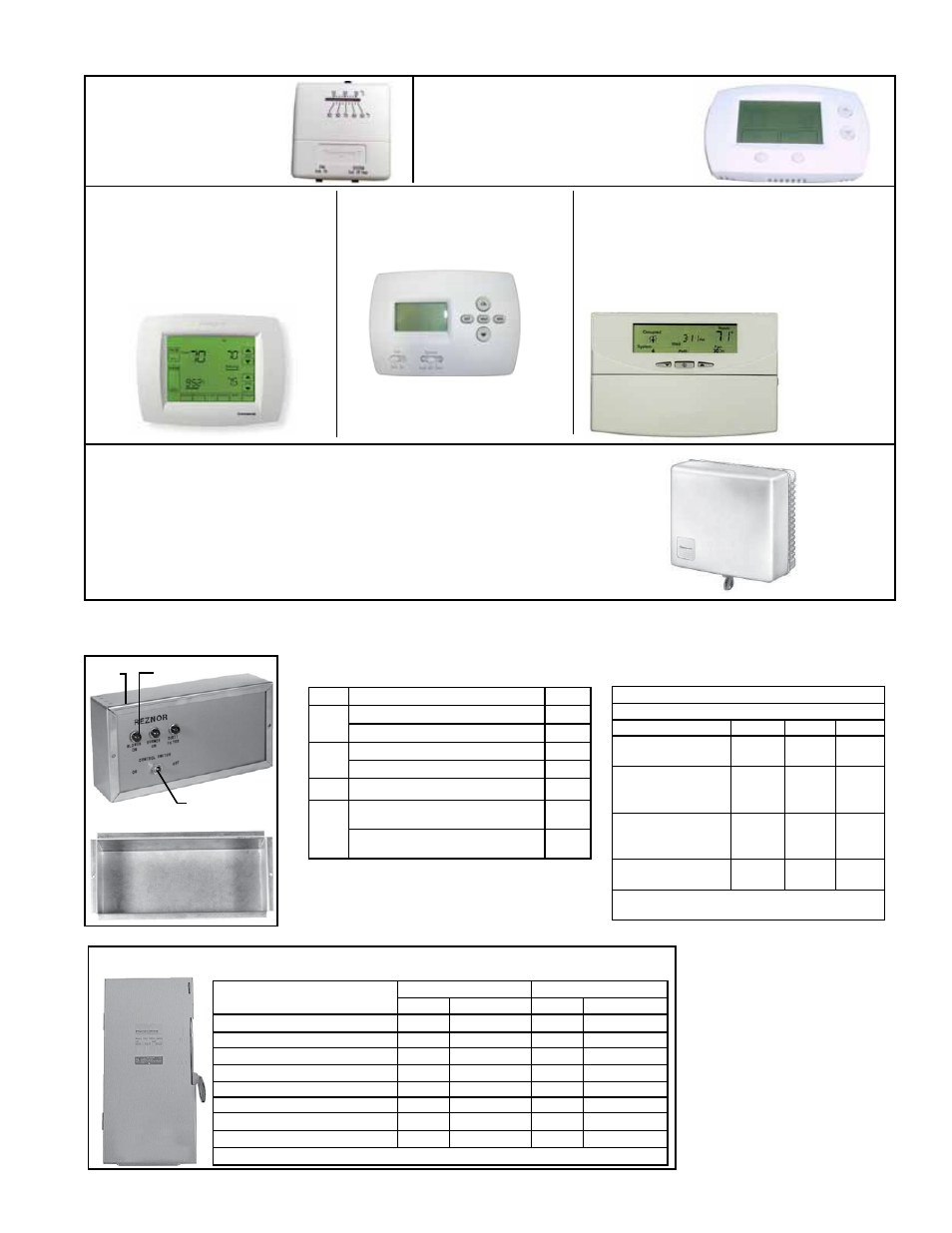

Form P-CAUA, P/N 271166 R2, Page 5
CODE 34 - 1-stage,
Honeywell T812C1000
Heating/Cooling
Thermostat, Option CL1,
P/N 255350
CODE 35 - Electronic Two-Stage
Thermostat, M/H TH5220D1029,
24 volt, 2-stage heating/2-stage
cooling, Option CL22, P/N 220630
CODE 38 - Electronic 7-day
Programmable, 2-stage heating / 2-stage
cooling, 24v, switching subbase with
auto/cool/off/heat switch and auto/on fan
switch, M/H #T7350B1002, P/N 221038
(Same as CL33)
Thermostats and Accessories
(replaces P/N 93435, 93436, and 93437)
CODE 37 - 5-2 Programmable
Thermostat, M/H TH411D1007,
24 volt, heating/cooling,
Option CL52, P/N 220632
(replaces thermostat P/N
39581 with subbase 15954 and
thermostat 205397)
(replaces
P/N 110158)
Code 40 - Remote
Consoles
Optional RC style remote console includes a mounting ring so that the console may be either
recessed or wall mounted. The box is of 16 gauge steel with knockout holes for field wiring. The
cover is made of plastic with custom engraving. Order replacement parts for Option RC remote
console by part number.
Remote Console Option Dimensions
(approximate dimensions with mounting ring*)
Console Options Length Height Depth
All RC 1, 2, 3, 4, 5,
6, 9
10-3/4"
(273mm)
7-5/8"
(194mm)
2-5/8"
(67mm)
RC 7, 8, 10, 12
without an optional
control on the console
10-3/4"
(273mm)
7-5/8"
(194mm)
2-5/8"
(67mm)
RC 7, 8, 10, 12 with
an optional control on
the console
15-3/4"
(400mm)
7-5/8"
(194mm)
2-5/8"
(67mm)
All RC 11
15-3/4"
(400mm)
7-5/8"
(194mm)
2-5/8"
(67mm)
* Subtract 5/8" from L & H when recessing console
(not using wall-mounting ring)
CODE Description P/N
40A
Console Box - 10-1/16 x 6-5/8 x 2-5/8 107010
Console Box - 15-1/16 x 6-5/8 x 2-5/8 107011
40B
Mounting Ring for 10-1/16" lg box 107014
Mounting Ring for 15-1/16" lg box 107015
40C Red Light, Solico 3039-3-11-41610 101889
40D
SPDT Switch, Cutler Hammer
#7505K6, 15 amps
101901
DPDT Switch, Cutler Hammer
#7561K6, 15 amps
101900
CODE 40A
40C
40D
40B
Code 41 - Disconnect Switches
UL Listed Disconnect
Switches
Use in U.S.A. Use in Canada
P/N Same as Opt P/N Same as Opt
30 Amp, 240 Volt, Non Fusible 40267 CP1 -- --
30 Amp, 240 Volt, Fusible* 40268 CP2 -- --
30 Amp, 600 Volt, Non Fusible 50365 CP3 208053 CP58
30 Amp, 600 Volt, Fusible* 50366 CP4 208045 CP41
60 Amp, 240 Volt, Non Fusible 161462 CP21 -- --
60 Amp, 240 Volt, Fusible* 89932 CP17 -- --
60 Amp, 600 Volt, Non Fusible 161464 CP23 208055 CP60
60 Amp, 600 Volt, Fusible* 90974 CP20 208047 CP43
*Fuse is not included.
CODE 36 - Electronic Two-Stage
Thermostat, M/H TB8220U1003,
7-day programmable,
touchscreen, 24 volt, 2-stage
heating / 2-stage cooling,
Option CL23, P/N 257338
CODE 39 - Locking Thermostat Cover
Option CM1 P/N 257464, Height 6-1/2” (165mm), Width 7-1/2” (191mm),
Depth 2-15/16” (75mm) - fits all thermostats above except Code 38
Option CM1B, P/N 257463, Height 7-1/4” (184mm), Width 9-3/4” (248mm),
Depth 3-3/8” (86mm) - fits all thermostats above including Code 38
