Form P-CAUA, P/N 271166 R2, Page 21

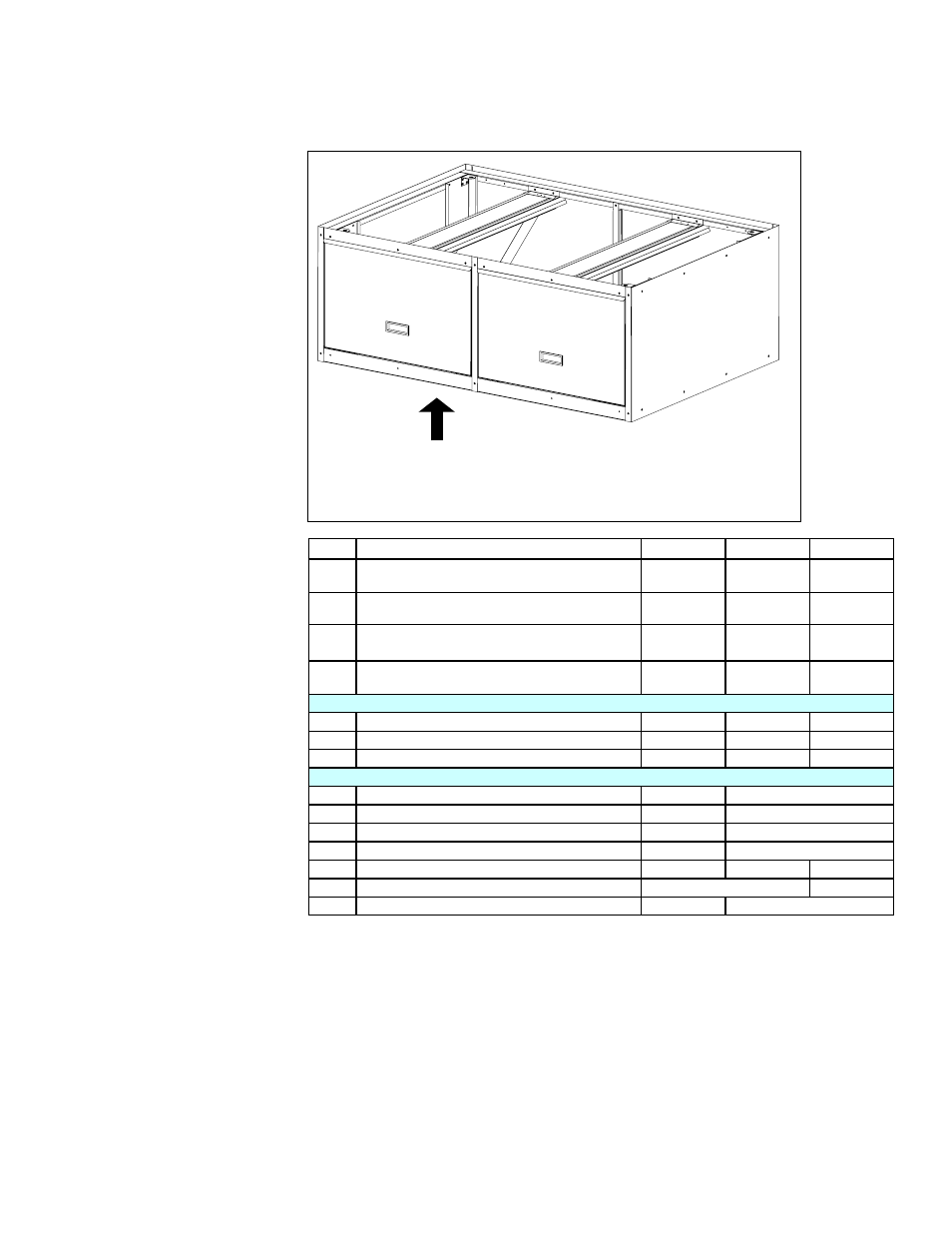

Bottom Return
Air Filter Cabinet,
Options CW 13, 14,
15, and 16
Return air enters through the bottom of the filter cabinet.
Cabinet may be placed with filter access doors on either
front or rear of heater.
If a complete cabinet package is ordered, cabinet is assembled at the factory before
shipping.
Filters and cabinet outer panels are listed here. If other components are required,
contact your distributor.
CODE Model CAUA Size
150/200
250/300
350/400
235 Option CW13, Btm Cabinet w/CODE 215A
filters
195165
195166
195167
236 Option CW14, Btm Cabinet w/CODE 216A
filters
195154
195155
195156
237 Option CW15, Btm Cabinet w/CODE 217A
filters
195157
195158
195159
238 Option CW16, Btm Cabinet with filter racks for
field-supplied 2” filters
195160
195161
195162
Filter P/N’s - All filters are 2” x 16” x 16”
235A Disposable filters in Option CW13
(6)
104101
(8)
104101
(12)
104101
236A Pleated disposable filters Option CW14
(6)
104109
(8)
104109
(12)
104109
237A Permanent aluminum filters in Option CW15
(6)
104103
(8)
104103
(12)
104103
Cabinet Outer Parts , Filter Racks, and Blockoff Plate:
239 Side Panel
(2)
194686
(2)
194675
240 Rear Panel
194677
194662
241 Top Door Cover
194686
(2)
194672
242 Door Assembly
194938
(2)
194939
243 Filter Rack Assembly - Single
(2)
194916
(4)
194916
(4)
194917
244 Filter Rack Assembly - Double
(2)
194914
(2)
194915
245 Filter Blockoff
(3)
195164
(4)
195164
